1. The touch screen is more convenient to operate.
2. Independent access control can realize user passwords, cards and other functions, supporting cards, password input via touch keypad.
3. The system can initiate a warning if someone tries to tamper with the password.
4. Overvoltage protection, multi-function device, can be used as a WG26 card reader.
5. Storage capacity of 1000 user cards, 1000 user passwords.
Features:
The touch screen is more convenient to operate.
Independent access control can realize user passwords, cards and other functions, supporting cards, password input via touch screen keypad.
The system can initiate a warning if someone tries to tamper with the password.
Overvoltage protection, multi-function device, can be used as a WG26 card reader.
Storage capacity of 1000 user cards, 1000 user passwords.
There are three ways to open: card, password, card and password.
Ultra-low power consumption, standby current less than 30 mA.
The luminous keypad allows the user to operate the keypad at night.

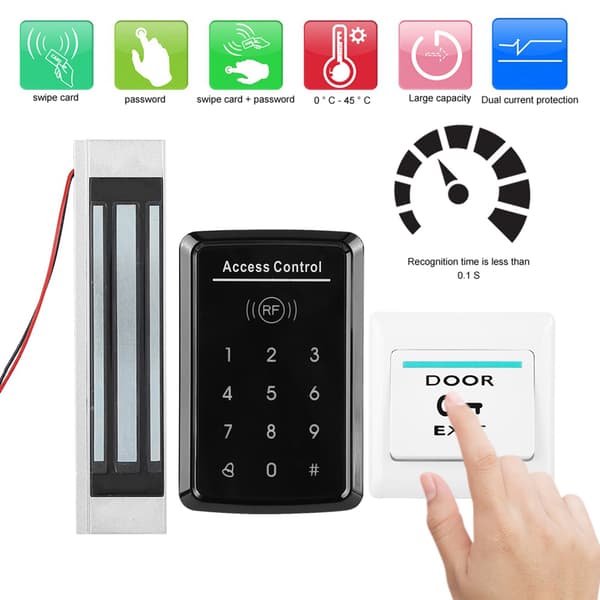

The user can change the password. The door opening time is less than 0.1 S.
With Weigand output interface, it can output Wg26.
The power output has an automatic protection function when the circuit is short-circuited.
Specification:
Color: Shown as picture
Access Control
Verification Method: RFID Card / Password / RFID Card + Password
Card Capacity: 1000
Password Capacity: 1000
Proximity Range: 1-15cm
Frequency: 125khz
Wiegand Signal Output: (Supports external Wg26 card reader)

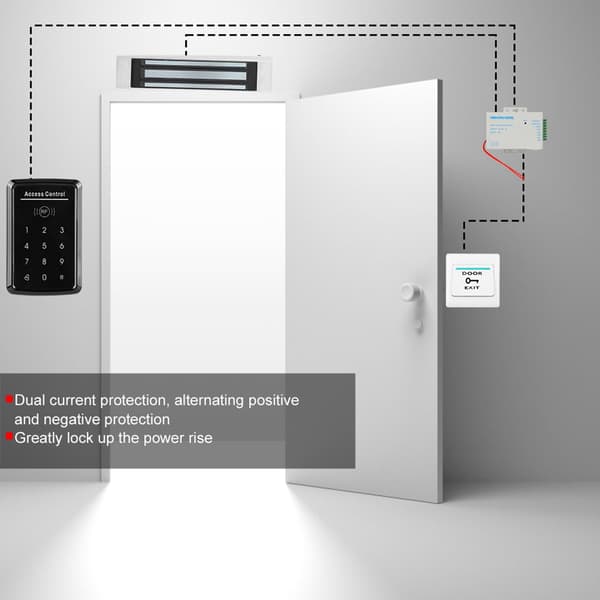

Access Control Interface: Electronic Lock, Door Sensor, Exit Button, Alarm, Doorbell
Voltage: DC 12V
Working Temperature: 0 ° C - 45 ° C
Working Humidity: 20%-80%
Size: Approx. 120 x 78 x 22 mm/4.7 x 3.1 x 0.9 inches
Power:
Input: Standard AC 100V-260V 50-60Hz
DC Output: Stabilized DC 12V / 3 A
Shell Size: Approx. 103 x 68 x 33 mm/4.1 x 2.8 x 1.3 inches
Electromagnetic Lock:
Lock Size: Approx. 170 x 35 x 26 (mm)/6.7 x 1.4 x 1.0 inches
Holding Force: 180 kg (350 lbs)
Dual Voltage: 12V/ 24V DC + 10%
Current: 12V / 300mA 24V / 150mA
Surface Temperature: ≤ + 20 ° C
Applicable Humidity: 0~90% (Non-condensing)
Weight: Approx. 1.2 kg/42.3 oz
Door Switch:
Rated Voltage: DC 250V
Rated Current: 1.25 A
Output: NO or NC / NO / COM
Performance Test: 1,000,000 Aging Test
Material: ABS

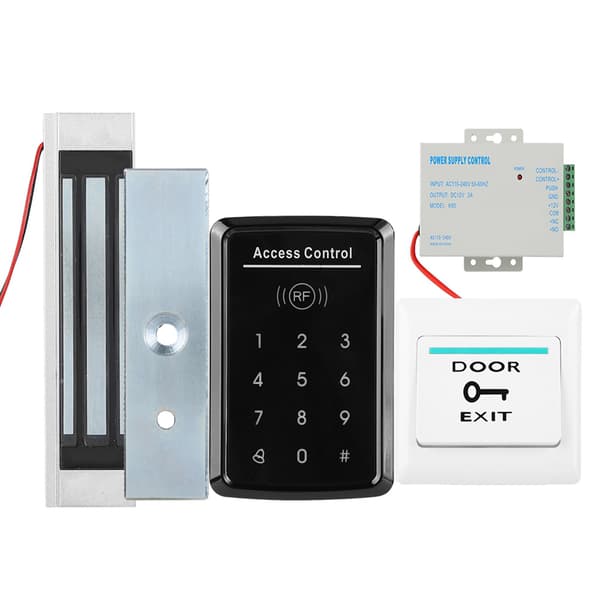

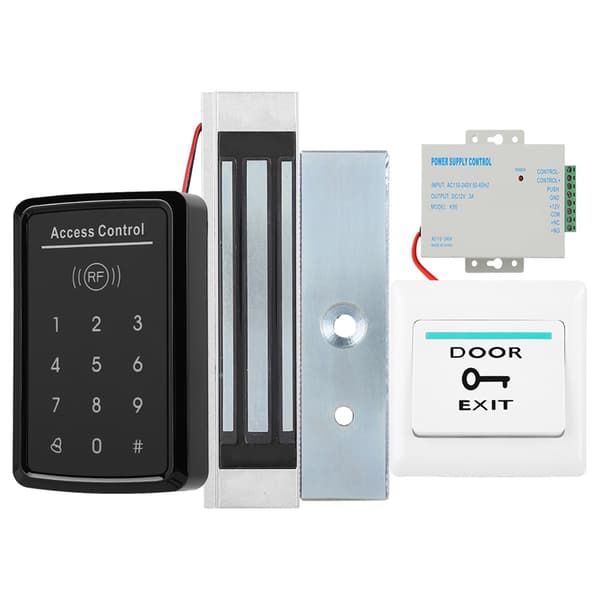

Package List:
1 x Access Control
1 x Electromagnetic Lock
1 x Electromagnetic Lock Plate
1 x Screw Bag
1 x Positioning Paper
1 x Door Switch
1 x Power Supply
1 x RFID Card
1 x Connection Cable
1 x User Manual
