1、Energized to lock, de-energized to unlock. 2、Aluminum alloy lock body, sturdy and durable. 3、Cast steel lock cylinder, wear-resistant, smooth, keeps continuous work. 4、Delay adjustment: The delay time can be preset to 0s/3s/6s. 5、Unlock and lock indicator: When power is on, the red light indicates unlocking and the green light indicates locking.
Features:
Energized to lock, de-energized to unlock.
Aluminum alloy lock body, sturdy and durable.
Cast steel lock cylinder, wear-resistant, smooth, keeps continuous work.

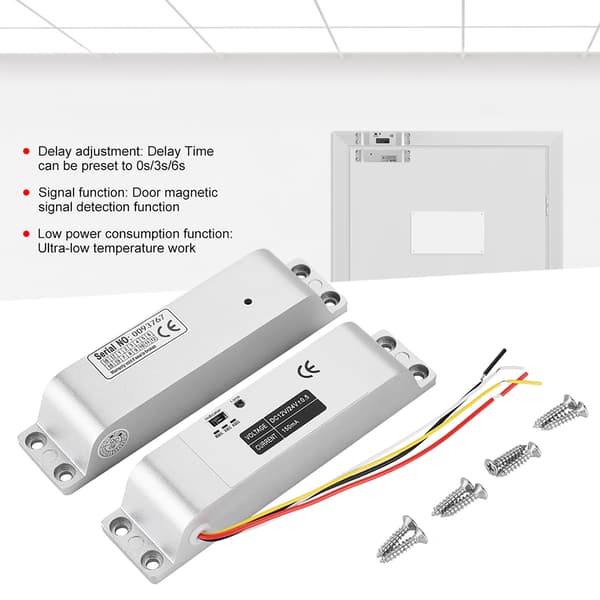

Delay adjustment: The delay time can be preset to 0s/3s/6s.

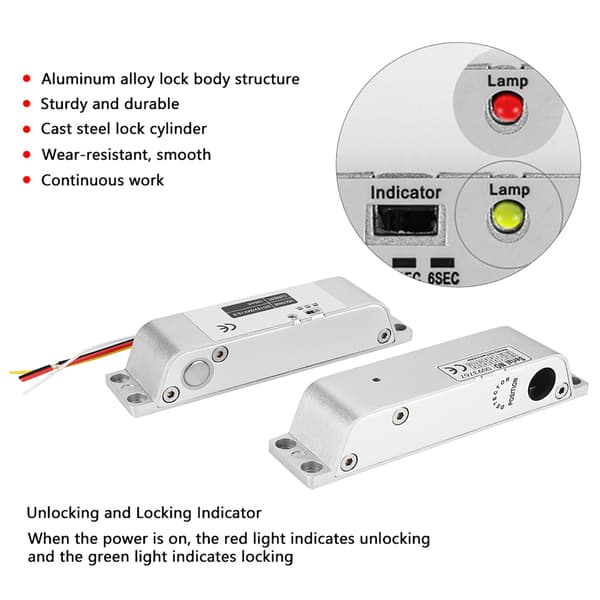

Unlock and lock indicator: When power is on, the red light indicates unlocking and the green light indicates locking.
Signal function: Door magnetic signal detection function.
Low power consumption function: Ultra-low temperature operation.
Specification:
Material: Metal
Color: Shown as picture
Input voltage: DC 12V
Working current: 200mA
Starting current: 1.2A
Holding force: 1000KG
Delay function: 0s/3s/6s delay
Lock cylinder size: 12.5mm diameter, 15mm extension length
Lock body size: Approx.148*34*27mm/5.8*1.3*1.1in
Package weight: Approx.515g/18.2oz
Package list:

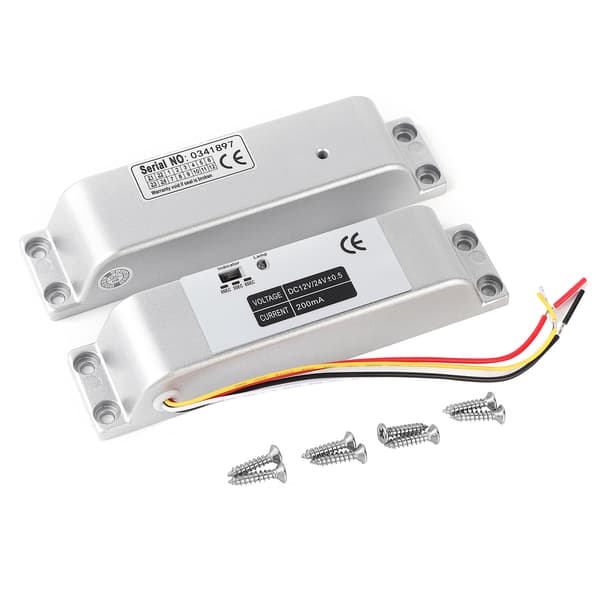

1 * Electric Drop Bolt Door Lock
1 * Panel Cover
1 * Screw Bag
1 * User Manual
