Has good stability, high measurement accuracy.

Strong anti-interference ability.

Setting parameters will be memorized when power off.

With a standard size, easy to install.

Suitable for detecting the speed of all kinds of motors.



:

Power requirement: DC 8-24V

Measuring range: 10 ~ 9999RPM

Error range: 0.1%

Clear zero: Automatic

Clear zero time: About 10s

Refresh frequency: 0.2-0.5S(120-1200RPM),0.25-0.06S(2400-9999RPM)

Response frequency: 100HZ.

Measurement indication: (RPM Less than 5000,2),(RPM more than 5000,3)

Signal: NPN 5 wires normally open.

Display: 5 x 2cm LED

Detection range: 1mm-10mm.

Proximity output current: 20mA(For the sensor)

Operating temperature: -10 to 50 Celsius

Sensor wiring: brown(Power+), black(Test+),blue(signal)

Colour:black

Material:plastic

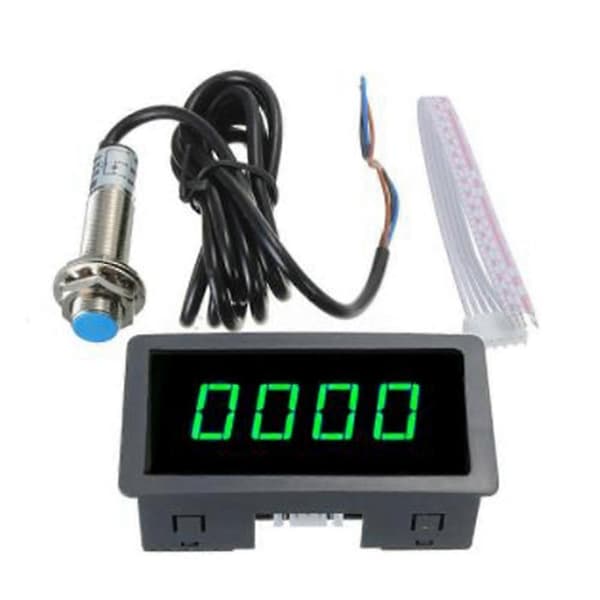

Package Contents:

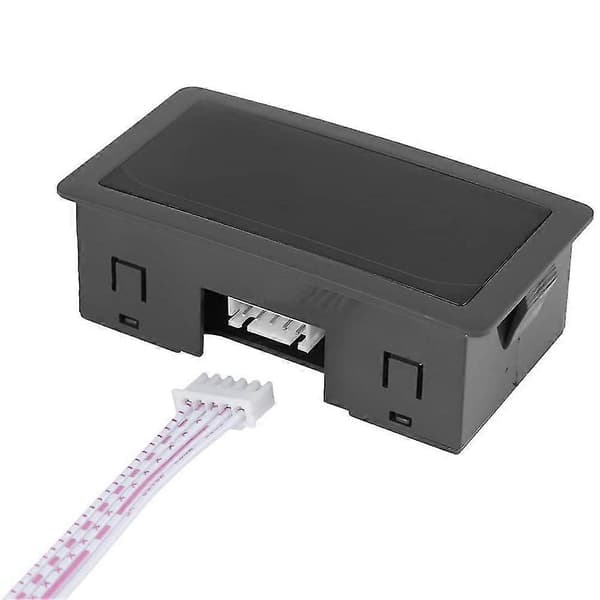

1 * Tachometer RPM Speedometer

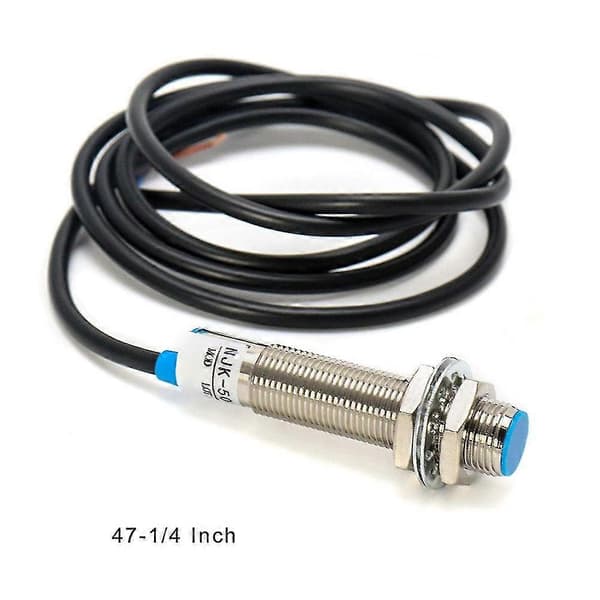

1 * Hall Proximity Sensor NPN



Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
