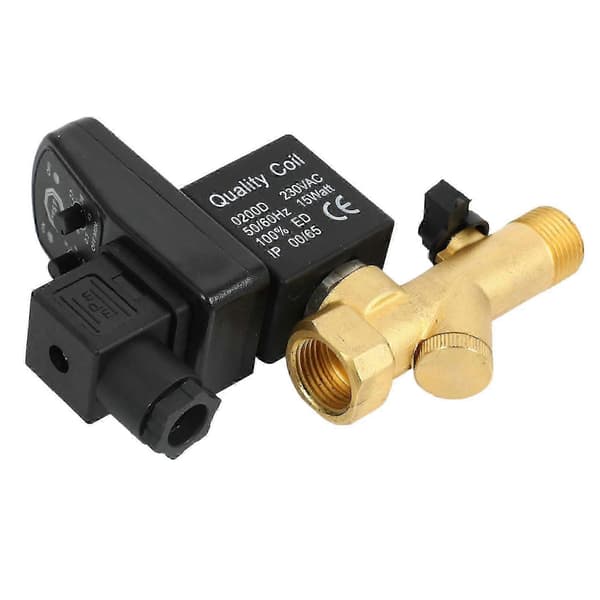

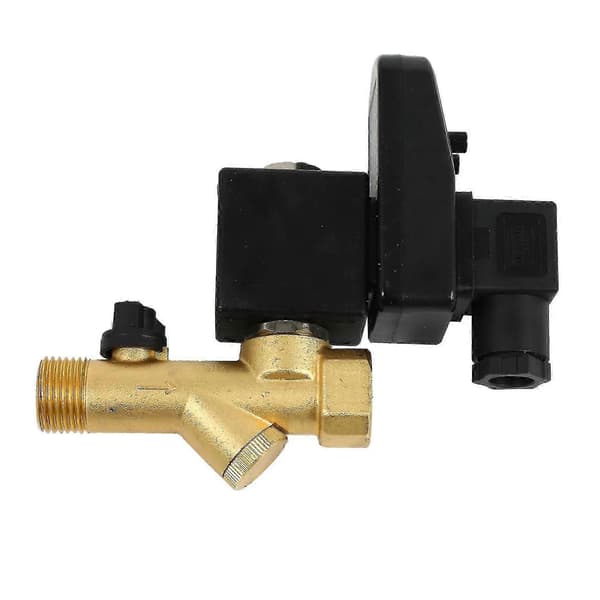

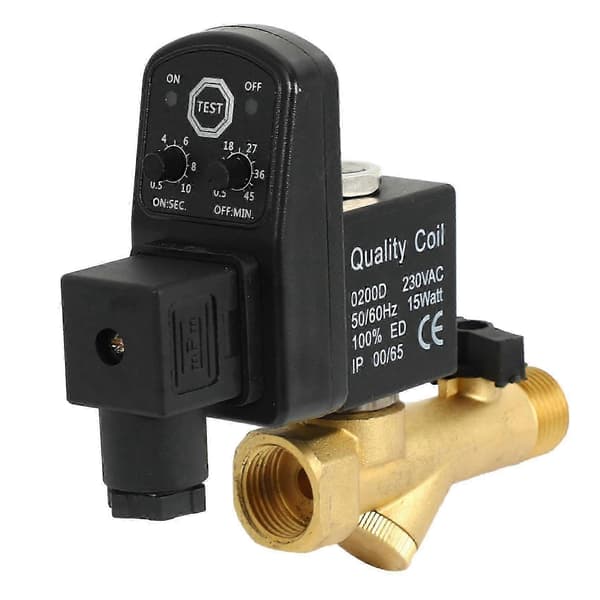

AC 220V 1/2 inch electronic timed 2-way compressor gas tank automatic drain valve FG05

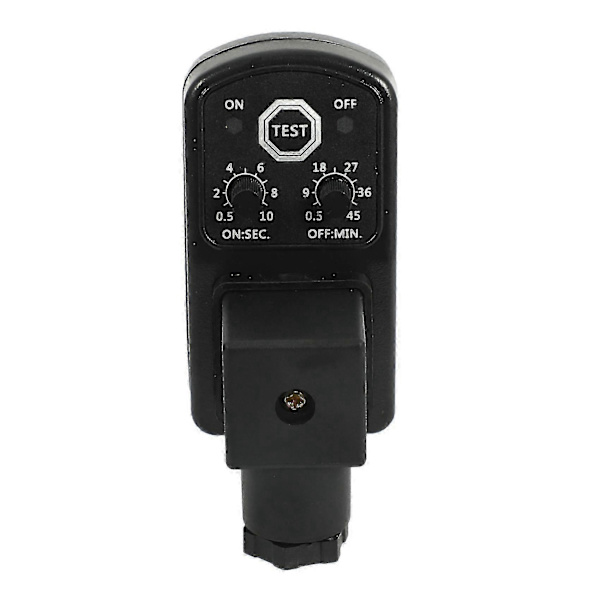

Name: Electronic Drain Valve Model: 507292 Indicator light: LED indicating on/off Voltage range: +/-10% Protection grade: IP65 Insulation: class H Maximum working pressure: 1.6 MPa Maximum temperature: 90 Celsius Ambient temperature: -40 Celsius to 60 Celsius Largest current consumption: 4mA Supply voltage: 24-240V AC/DC 50/60Hz Discharge time (ON): 0.5--10 seconds Interval time (OFF): 0.5--45 minutes Widely used in filters, separators, dryers, gas tanks, drip legs and other compressed system components. Clean the compressed system before installation. Note the direction when installing the valve: the outlet must not use the hose that is not resistant to impact. The supply voltage should be the same as the drain valve's voltage: the positive pole must be connected to terminal \"1\" when using DC. When the drain valve leaves the factory, it is connected to the cable, brown is live L, blue is neutral N, yellow-green color is protective earth conductor GND. Be sure to tighten the long screw on the junction box to prevent water from burning. Warning When installing the electronic drain valve, make sure that: Compressed has been drained (that is, under zero pressure). The power supply has been turned off. color: Gold + black Material: metal size: flow aperture: 5 mm Inlet/outlet port size: 1/2 inch Package Contents: 1 x Electronic Drain Valve Only the above package content, other products are not included. Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
