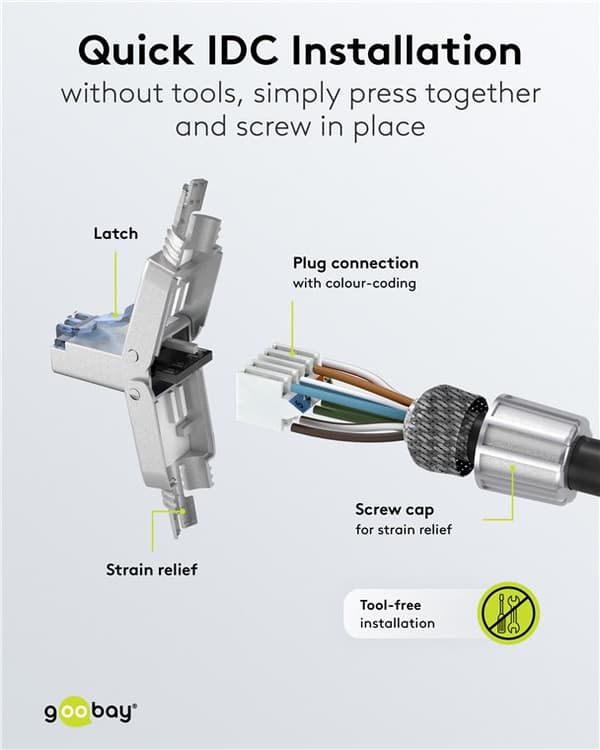

The RJ45 connector is time-saving and easy to install on the CAT cable thanks to the practical folding mechanism. Thanks to IDC assembly technology, no additional tools are needed. The individual wires are placed on the color-coded contacts and fixed in place by simply pressing the connector housing together.

Female connector for tool-free assembly, suitable for round cables with solid conductors (AWG 22/1 - 26/1 solid) and stranded conductors (AWG 22/7 - 24/7 stranded)

For quick assembly on network cables by simply clamping the connector housing and screwing on the strain relief

The CAT 6A connector supports Power over Ethernet (PoE++, 4PPoE, Ultra PoE) according to IEEE802.3bt as well as 10GBase-T (backward compatible)

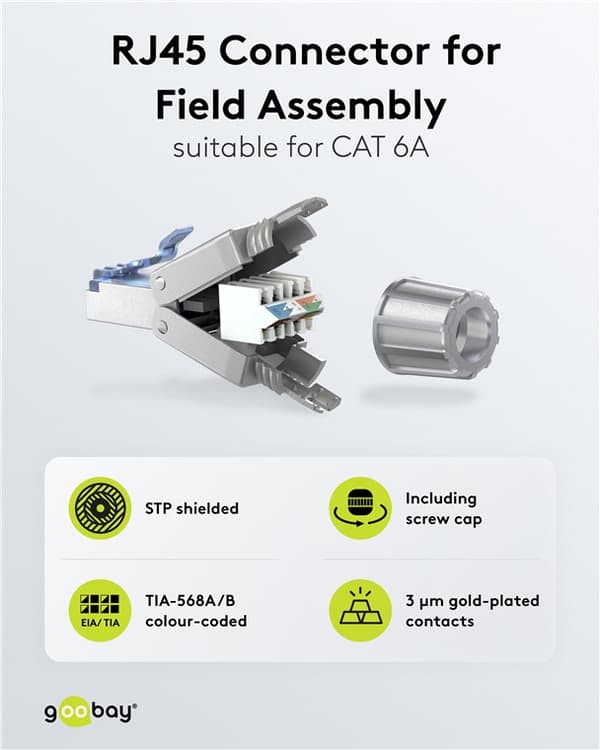

The RJ45 connector is suitable for mounting on a CAT 6A installation cable to create a network cable of individual length (cabling: 180°)

3 μm gold-plated contacts and STP shielding ensure durability and optimal signal transmission

The RJ45 connector is color-coded according to TIA-568A/B

AWG : 22 - 26
Specification : CAT 6A
Shielding class : STP
Connector : 8 Pin

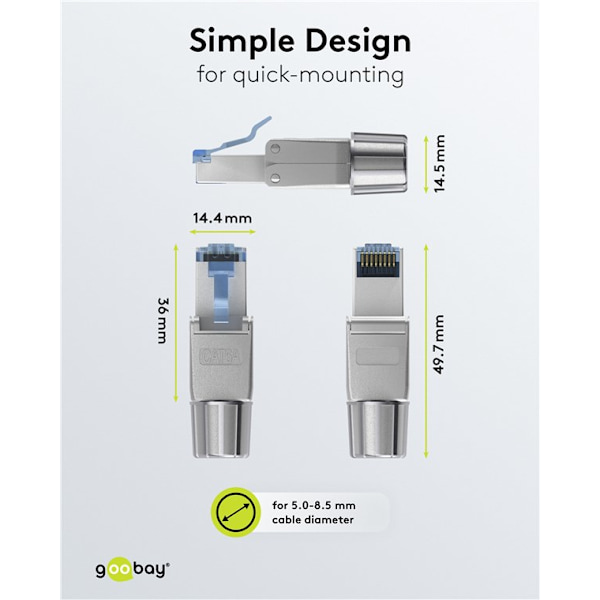

Length : 49.7 mm
Width : 14.4 mm
max. bandwidth : 500 MHz
Connection, contact material : Gold-plated 3µm
Connection, type : RJ45 connector (8P8C)
Connection 2, type : terminal block for IDC assembly (tool-free)
Consumption unit : 1 pc. in plastic bag
Instruction manual : de, en
