The CAT 8.1 standard eliminates the near-end crosstalk that an RJ45 connector generates due to its design. Therefore, a CAT 8 compliant RJ45 connector achieves a higher transmission speed than a CAT 5 or CAT 6 connector.

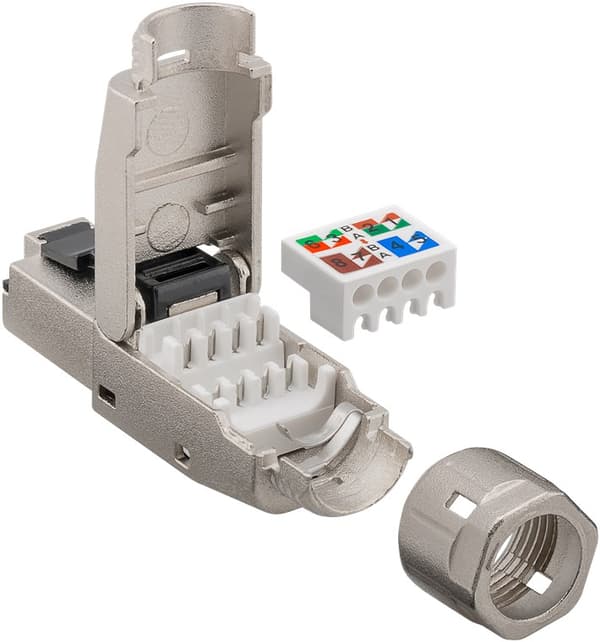

Female connector for tool-free assembly, suitable for round cables with solid conductors (AWG 22/1 - 26/1 solid) and stranded conductors (AWG 22/7 - 26/7 stranded)

For quick assembly on network cables by simply clamping the connector housing together

The CAT 8.1 connector supports Power over Ethernet (PoE++, 4PPoE, Ultra PoE) according to IEEE802.3bt as well as 25GBase-T and 40GBase-T (backward compatible).

For a transmission distance of 24 m as a permanent link or 30 m as a channel link (8.1 Standard Class I with an operating frequency of up to 2 GHz).

The RJ45 connector is suitable for assembly on a CAT 8.1 installation cable to create a network cable of individual length.

3 μin gold-plated contacts and STP shielding guarantee durability and optimal signal transmission.

The RJ45 connector is color-coded according to TIA 568A/B
AWG : 22 - 26
Specification : CAT 8.1
Shielding class : STP
Connector : 8 Pin
Height : 13.8 mm
Length : 48.2 mm
Width : 12.8 mm
max. bandwidth : 2000 MHz
max. transmission rate : 40 Gbit/s
Connection, contact material : Gold-plated 3µm
Connection, type : RJ45 connector (8P8C)
Connection 2, type : terminal block for IDC assembly (tool-free)
Consumption unit : 1 pc. in plastic bag

• Female connector for tool-free assembly, suitable for round cables with solid conductors (AWG 22/1 - 26/1 solid) and stranded conductors (AWG 22/7 - 26/7 stranded)
• For quick assembly on network cables by simply clamping the connector housing together
• The CAT 8.1 connector supports Power over Ethernet (PoE++, 4PPoE, Ultra PoE) according to IEEE802.3bt as well as 25GBase-T and 40GBase-T (backward compatible).
• For a transmission distance of 24 m as a permanent link or 30 m as a channel link (8.1 Standard Class I with an operating frequency of up to 2 GHz).
• The RJ45 connector is suitable for assembly on a CAT 8.1 installation cable to create a network cable of individual length.
• 3 μin gold-plated contacts and STP shielding guarantee durability and optimal signal transmission.
• The RJ45 connector is color-coded according to TIA 568A/B
