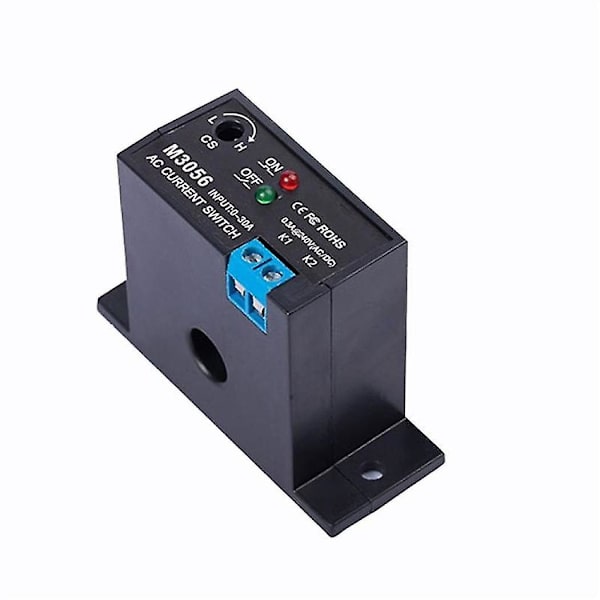

Mutual inductance current monitoring, safety isolation of input and output, self. The monitored current range is up to 30A; the monitoring threshold is adjustable within 0.2-30A. Hysteresis is less than 1%.

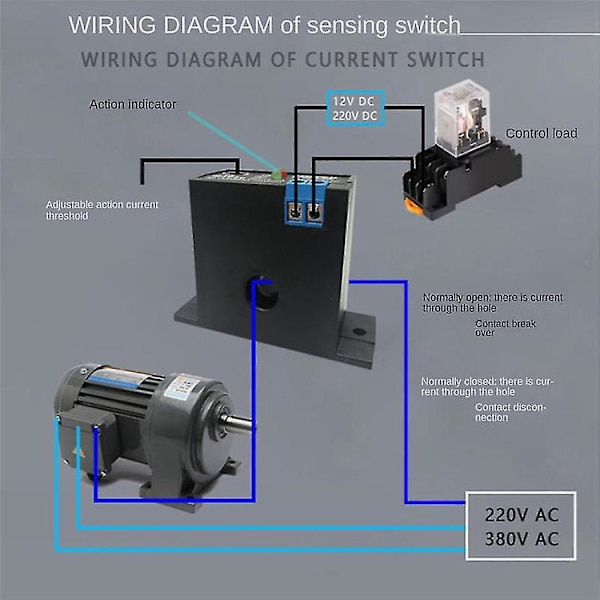

It can be used in strong magnetic environments. Contactless electronic switch with fast reaction and unlimited number of on/off operations. Shell is made of environmentally friendly flame retardant PC material. Monitoring current: 0.2-30A AC Contact capacity: 0.3A@240V AC/DC Diameter of perforation line: 10MM Dimensions: 65x25x47MM Maximum leakage value: 0.1MA Maximum overload capacity: 100% Operating temperature: -20-55 Celsius Hysteresis: less than 1% Working principle: Normally closed: M3056 When the current in the perforation line exceeds the set value, the green light turns on and the output signal opens; when the current is below the set value, the red light turns on and the switch closes. Color: As shown Material: Plastic Package contents: 1 x Current detection switch induction relay Only the above package content, other products are not included. Note:

Light and different displays may cause the color of the item in the picture a little different from the real thing.

The measurement allowed error is +/- 1-3cm.
