1. CMOS image processing technology, can read barcodes/QR codes such as mobile WeChat in any direction in 360°, or even scan some incomplete, damaged or destroyed barcodes/QR codes.
2. Concise design and beautiful appearance, together with professional scanning performance, can provide users with an extremely convenient and comfortable user experience.
3. With a large scanning window, it can provide users with a large field of view.
4. Can quickly and easily scan all types of printed barcodes, commodity codes and mobile phone screen barcodes.
5. Wide range of applications, can be used for mobile payment in supermarkets, WeChat QR code payment, etc.

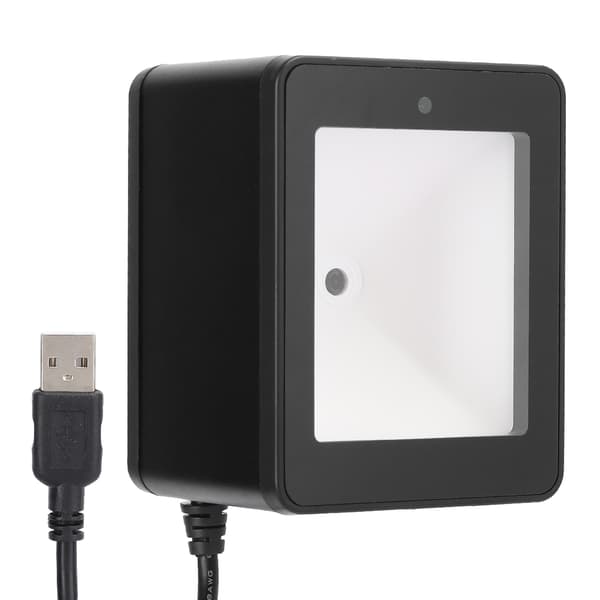

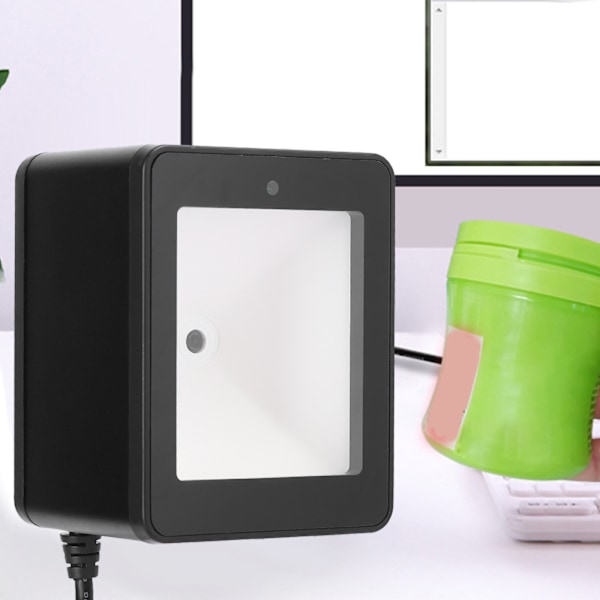

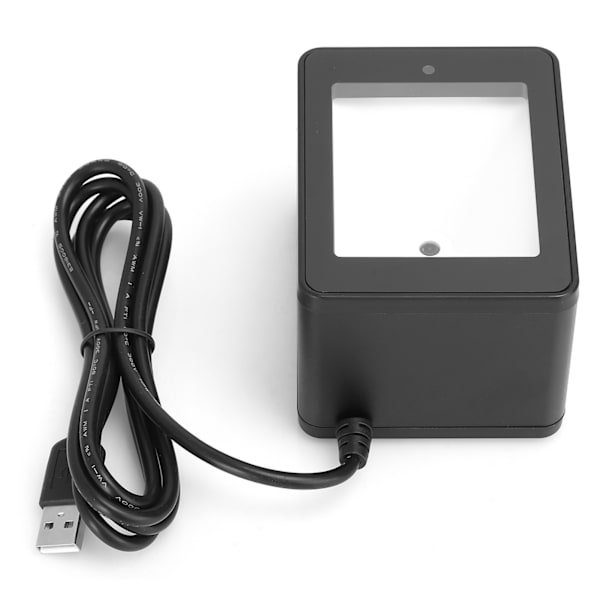

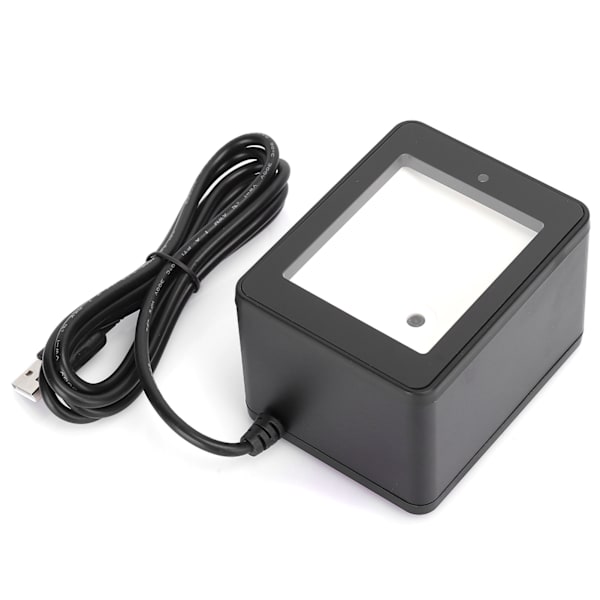

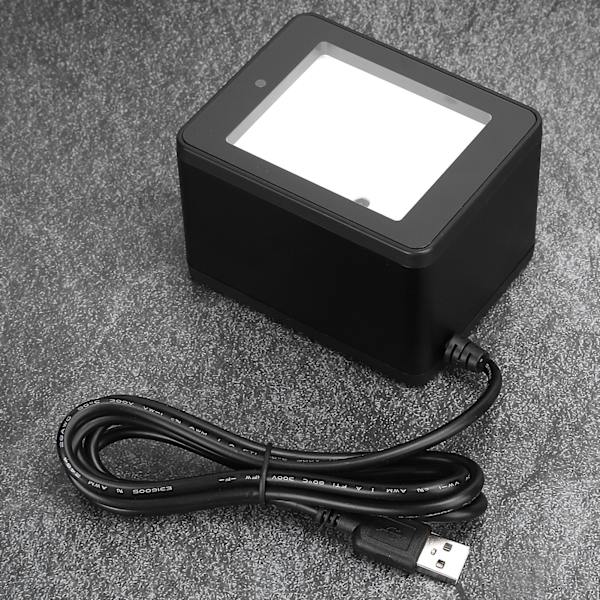

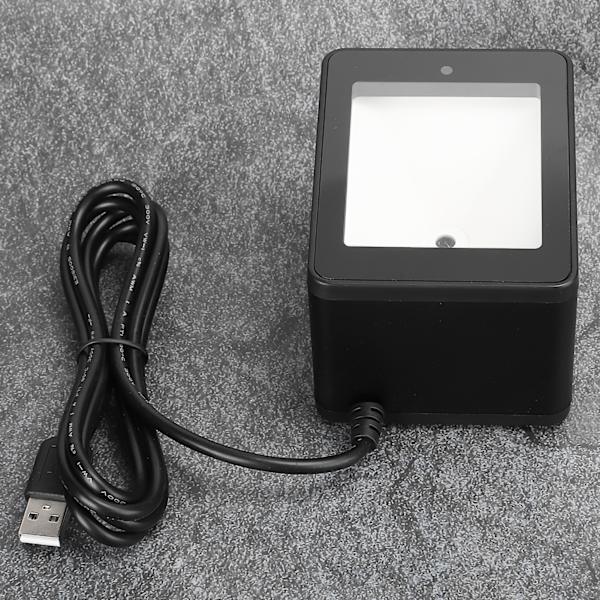

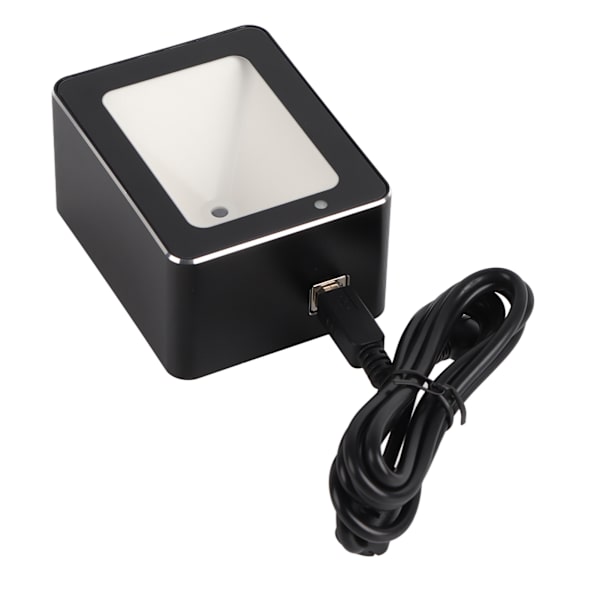

Item Type: Desktop Barcode Scanner
Image Sensor: CMOS
Light Source: 620nm visible red light diode
Trigger Mode: Continuous, automatic induction
Instructions: Buzzer and LED
Resolution: 640 x 480
Interface: RS232, USB
Decoding Speed: 500 times/second
Resolution: 4 million
Minimum Contrast: ≥25%
Decoding Capability:
1D: UPC/EAN, with complementary UPC/EAN, Code128, Code39,
Code 39Full ASCII, Coda bar, industrial /Interleaved 2 of 5 Code93, Code11, ISBN, ISSN, China post, GS1 Databar, etc.
2D: PDF417 QR Aztec DataMatrix Maxicode MicroPDF417 etc.
Depth of Field: 40-120 mm code39 (5MIL)
20-300mm EAN-13 (13MIL)
20-150mm PDF417 (6.8MIL)
15-250mm QR code (20MIL)
Scanning Angle: Roll 55°, pitch ±25°, tilt ±75°
Working Voltage: 5V
Current Maximum: 212mA
Working: 156mA~212mA
Standby: 156mA
1 x Desktop Barcode Scanner
1 x User Manual
