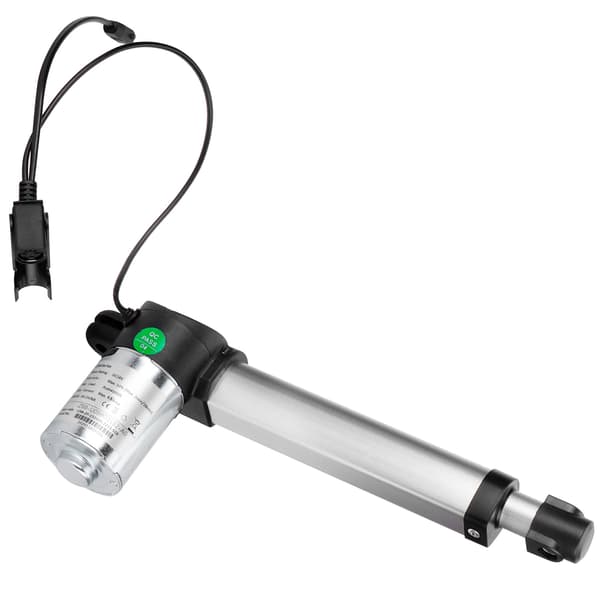

1. It has a long service life, small in size, with low noise during use, and space-saving. 2. Orbital type electric push rod, the nut can slide on the aluminum type, it is very convenient to use in recliners and lifters, etc. 3. Solve the noise caused by the friction of some motor gears, low noise and high performance. 4. This chair lift motor has a compact design, making it ideal for many applications in industries. 5. Used in many different brands of electric recliners, in other words, all electric chairs are universal.
Item Type: Recliner Motor
Material: ABS+aluminum alloy
Color: As the picture shown
Minimum installation distance: Approx. 32.5 cm/12.8 inches
Maximum installation distance: Approx. 47.5 cm/18.7 inches
Stroke: Approx. 150 mm/5.9 inches
Weight: Approx. 1985.0g/70.0oz
Input voltage: 24V
Connection method: 01 male + 5P female
Maximum thrust: 4000N
Maximum current: 4.5Amp
1 x recliner motor
2 x holders
2 x fixed buckle
