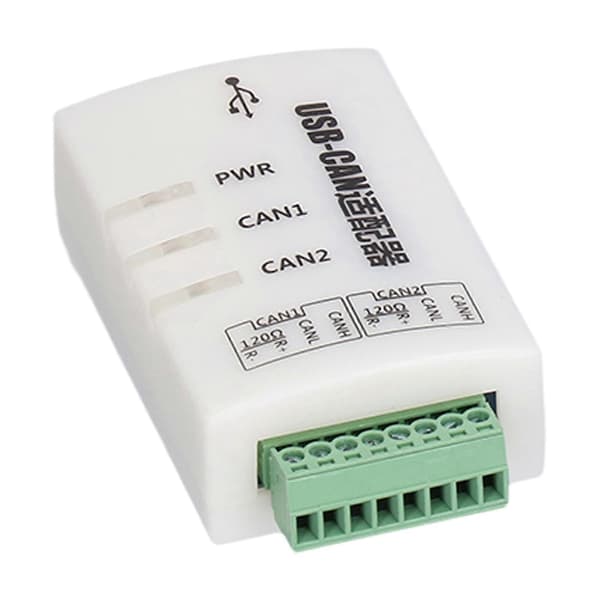

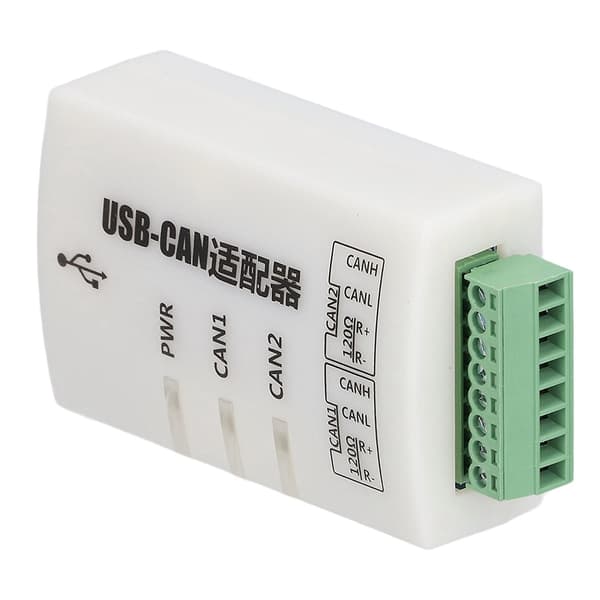

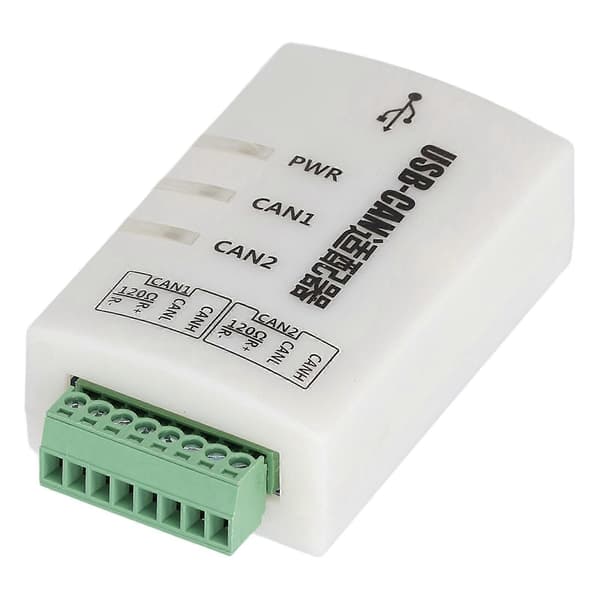

We present our CAN bus analyzer, a simple and easy-to-use tool with various functions. It supports common baud configuration and customization, making its use straightforward. Additionally, it can calculate unconventional baud rates through the included software.
With multifunctional detection capabilities, this analyzer offers one-button automatic detection, channel selection, and custom detection ranges. It also features a relay function, allowing you to display and analyze data from each channel while communicating with the CAN1 device and CAN2.
The dual-channel design makes it suitable for a wide range of applications, including new energy, automotive calibration, rail transit, and automation.
Product information:
- Item Type: CAN USB Adapter (non-isolated)
- Material: ABS shell
- USB Speed: USB2.0 full speed 12M/S
- Receiving Capability: 16000 frames/second 1M baud rate
- Transmitting Capability: Forty thousand frames/sec
- CAN Baud Rate: 5K-1M
- CAN Standard: Supports CAN2.0A and CAN2.0B protocols simultaneously, in accordance with IS
- Number of Channels: 2 (non-isolated)
- Matching Resistance: Built-in 120Ω (flexible configuration)
- Interface Form: Screw terminal
- Electrical Characteristics: PC interface: USB
- Power Supply: USB
- Decoding: Automotive DBC file decoding, charging pile and BMS protocol decoding, CANOPEN and J1939 protocol analysis
- Software Support: CANTEST, CANPRO, XIAOZHI, etc.
- Applications: New energy, automotive calibration, rail transit, automation, and other fields
Package includes:
- 1 x USB CAN Adapter
- 1 x USB Cable
- 1 x Screwdriver
