Description:

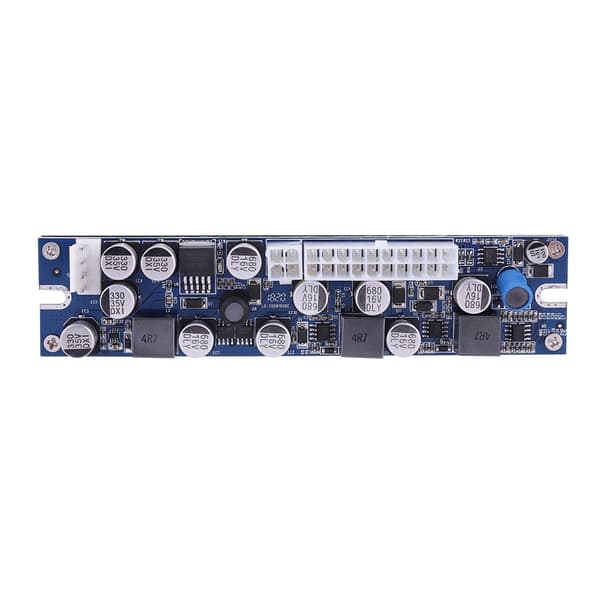

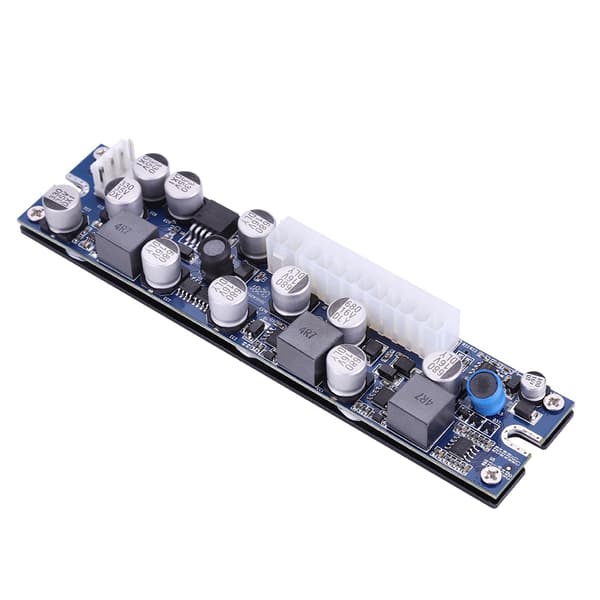

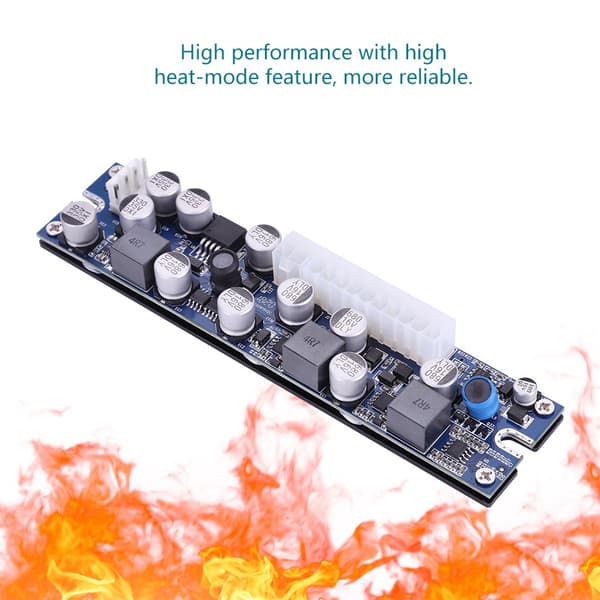

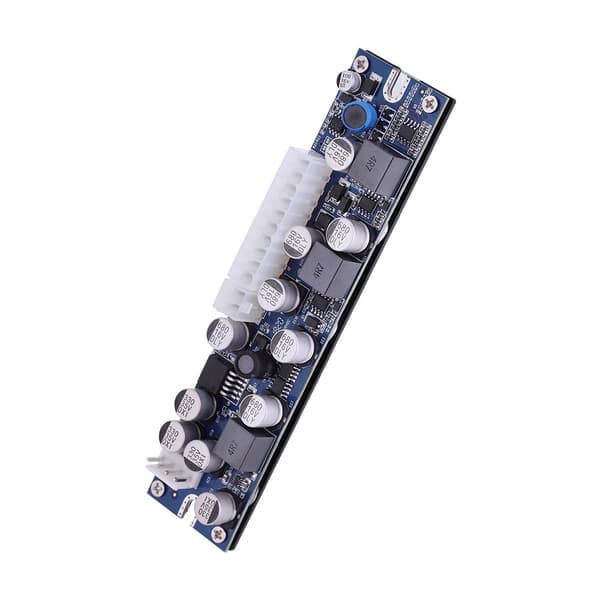

Fanless design, solid polymer capacitors on PCBA, long lifespan. Perfect DC PSU for motherboards, high performance with high heat function, more reliable. Use industrial solid capacitor, ideal for use in harsh environments.

Features:

1. Fanless design, 100% silent.

2. High-quality polymer capacitors on PCBA, long lifespan.

3. Perfect DC PSU for mini ITX motherboards.

4. Overvoltage protection: when the output voltage reaches 1.5 times the rated voltage, the output is shut down.

5. Short circuit protection: when a short circuit occurs in the output, the output is shut down.

Specifications:

Condition: 100% brand new module size: Approx. 155 * 35 * 20 mm / 6.1 * 1.3 * 0.7 inches input characteristics:

Input voltage range: 16VDC - 24VDC Input current range: 12.0A Max @19VDC Input voltage current: 12.0AMax @19VDC working efficiency: 85% or more output requirements: Output (Vin=19VDC) - +3.30V: +3.14V (minimum), +3.30V (typical), +3.47V (max), ripple wave: 50mV, Standby current: 0A, Typical value: 8.0A, peak value: 10.0A - +5.00 VSB: +4.75V (minimum), +5.00V (typical), +5.25V (max), ripple wave: 50mV, Standby current: 0.1A, typical value: 2A, peak value: 2.5A - +5.00V: +4.75V (minimum), +5.00V (typical), +5.25V (max), ripple wave: 50mV, Standby current: 0A, Typical value: 6.0A, peak value: 10.0A - +12.00V: +11.40V (minimum), +12.00V (typical), +12.6V (max), ripple wave: 120mV, Standby current: 0A, Typical value: 6.0A, peak value: 8.0A - -12.00V: -11.40V (Minimum), -12.00V (Typical), -12.6V (Max), Ripple wave: 120mV, Standby current: 0A, Typical value: 0.1A, peak value: 0.15A protection function:

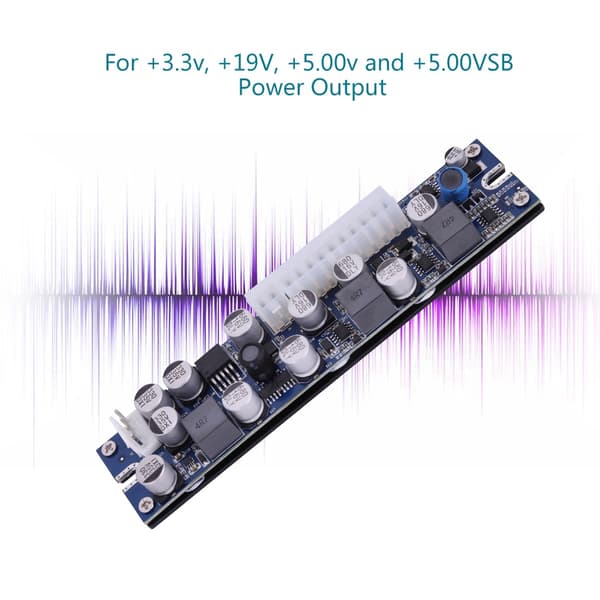

(For +3.3v, +19V, +5.00v and +5.00VSB Power Output) Overvoltage protection: when the output voltage reaches 1.5 times the rated voltage, the output is shut down.

Short circuit protection: when a short circuit occurs in the output, the output is shut down.

Environmental description:

Working temperature/humidity: 0°C to 40°C / 45% - 75% Storage temperature/humidity: - 40°C to +70°C / 10% - 90% Atmospheric pressure: 86Kpa -- 106Kpa Package included:

1 x power module 1 x 24-pin ATX to 12V AUX 1 x 4-pin Molex power supply 1 x SATA power 1 x 4-pin floppy drive Power connector 1 x 4-pin wire 1 x DC input cable 100% satisfied: Our customers are our top priority.
