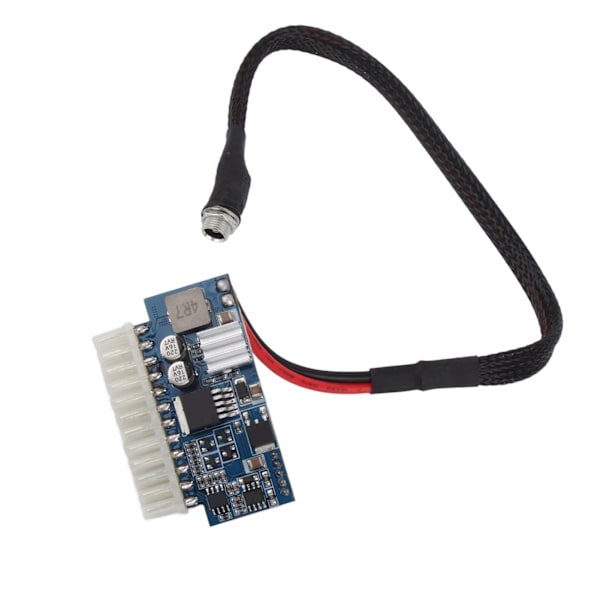

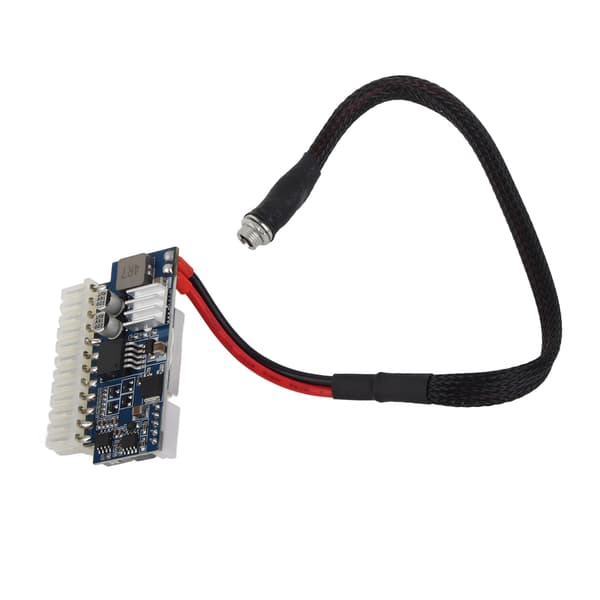

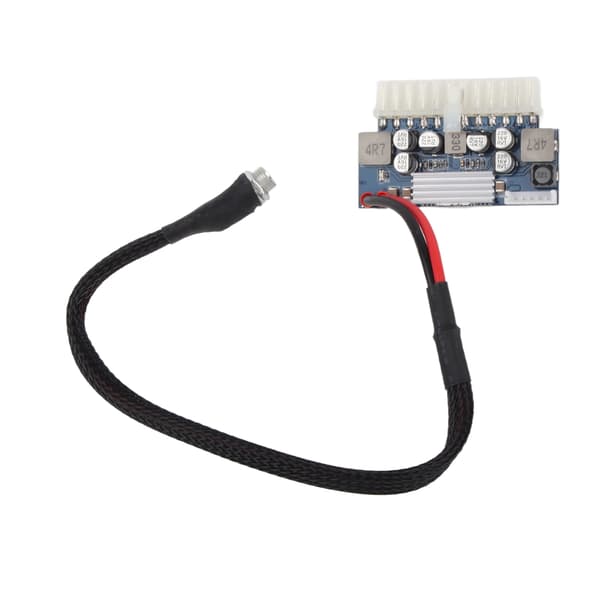

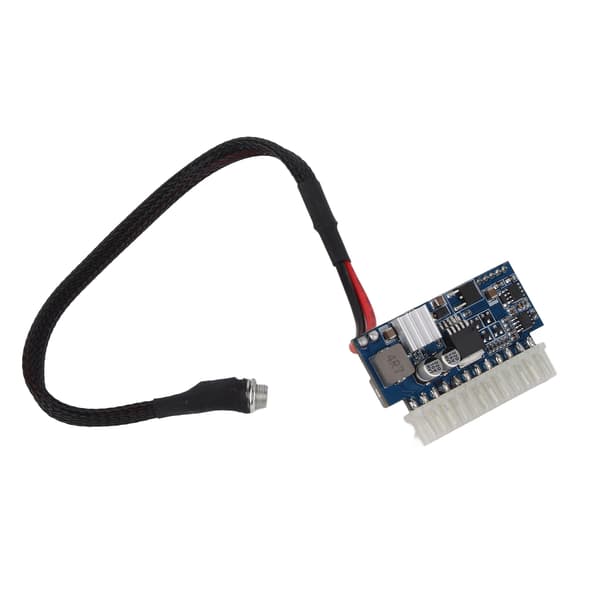

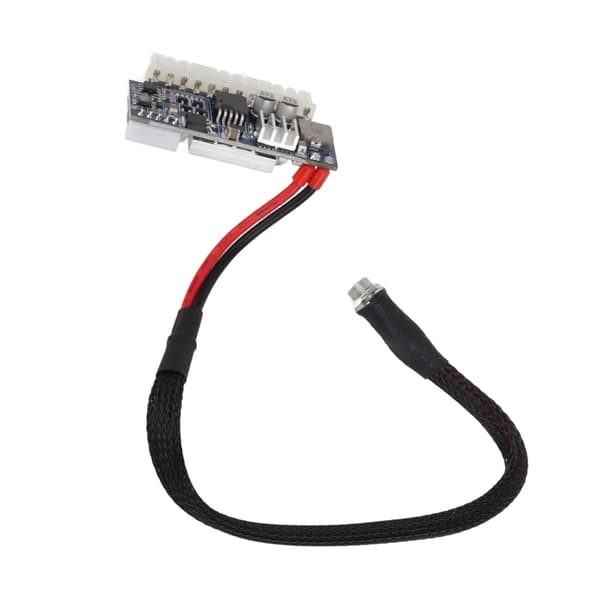

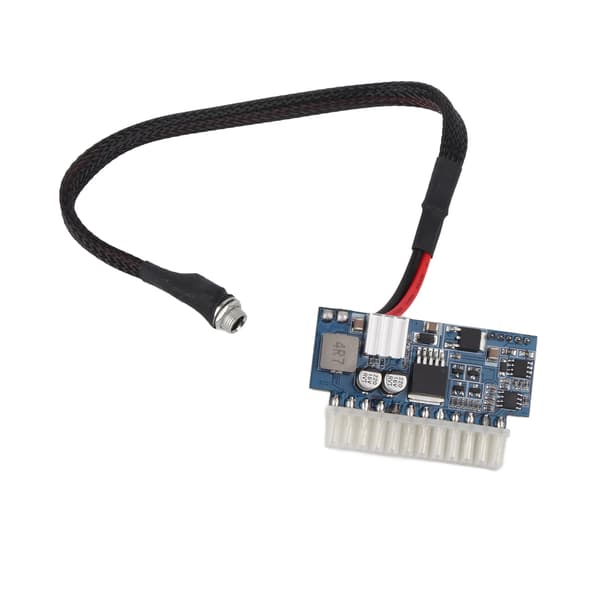

LD-A200WL 19V/200W DC-ATX Power Adapter Board Power Supply Module for HTPC ITX POS Machines

LD-A200WL 19V/200W DC-ATX Power Adapter Board Power Supply Module for HTPC ITX POS Machines

Name: LD-A200WL 19V/200W DC-ATX Power Adapter Board Power Supply Module for HTPC ITX POS Machines
SKU: YMLD26-0401-183336
Price: 413 SEK
Availability: InStock

413 kr

I lager

Tor, 18 jun - ons, 24 jun

Säker betalning

Nöjd kund-löfte

30 dagars öppet köp

Produktbeskrivning

Welcome to our store!

1、200W power adapter board, using high-quality PCB material, high performance, high heat resistance, more reliable to use. 2、Eliminate 24 unnecessary cables by connecting directly to the motherboard's ATX connector. 3、It is suitable for small ATX boards to save space in the case without affecting power requirements. 4、With overcurrent protection and short circuit protection: when the output current reaches the peak current, the output will be turned off. When the output is short-circuited, the output will be turned off. 5、Suitable for MINI computers, for HTPC computers, for POS machines, ITX cases, network servers, industrial control systems, etc.

Item Type: Desktop Computer Power Module
Material: PCB
Model: LD-A200WL
Power: 200W
Input Voltage: 17-24V
Output Voltage/Maximum Load: +5VSB/2A, +5VDC/8A, +3.3VDC/8A, +12VDC/12A, -12VDC/0.15A
Operating Frequency: IC built-in oscillator (250-350) kHz at Vcc-12V
Feedback Reference Voltage: 0.8V±2% at 12VDC

Interface: 1 x ATX24Pin, 1 x CPU4+4Pin, 1 x for SATA, 1 x IDE, 1 x DC5525
Cable Length:
DC Cable: Approx. 320mm/12.6in
CPU Cable: Approx. 210mm/8.3in
IDE Cable: Approx. 200mm/7.9in
for SATA Cable: Approx. 150mm/5.9in
Protection Function (for +3.3V, +12V, +5.00V and +5.00VSB output power)
Overcurrent Protection: When the output current reaches the peak current, the output will be turned off
Short Circuit Protection: When the output is short-circuited, the output is turned off
Working Temperature/Humidity: -5 - 55 ℃/45% - 75%
Storage Temperature/Humidity: -40 ℃ - 70 ℃/10% - 90%
Applications: for MINI computers, for HTPC computers, for POS machines, for ITX cases, for web servers, advertising machines, bank terminals, low-power systems, industrial control systems, etc.

1 x Power Adapter Board
