Description
Supports eARC and ARC inputs
HDMI, fiber optic, RCA, and 3.5mm headphone outputs (HDMI only transmits audio signals and no images)
HDMI output supports up to HD 5.1 and HD 7.1 channels
Fiber optic interface supports up to 5.1 channels
Supports transmission of 24bit/192KHz audio sampling rateNote: The HDMI output only outputs audio, not video.

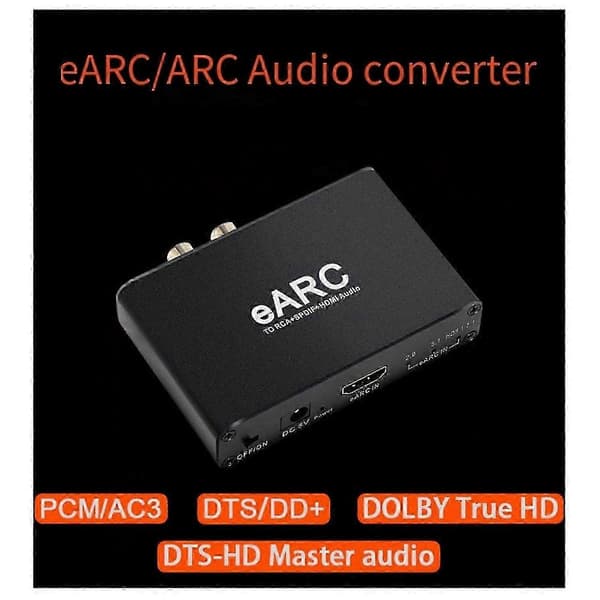

This product is designed to upgrade amplifiers or soundbars that do not support eARC function to connect to TVs that support eARC function, so that they can obtain high-definition audio through the TV's eARC channel. It can also connect the audio signal from a TV that supports eARC to an amplifier or headphones via the fiber optic and analog stereo interfaces on this eARC audio converter. This eARC audio converter is also compatible with TVs that have ARC function.
RCA and 3.5mm headphone output volume can be controlled by the TV remote control (CEC)
Supports input audio channel indicator lights
Input interface: eARC/ARC
HDMI output version: HDMI 1.4
HDMI output resolution: 720P (HDMI only transmits audio signals and no images)
Output interface: HDMI1, fiber optic1, RCA2, 3.5mm1
Supported audio formats: PCM, AC3, DTS, DD+, DTS-HD Master audio, DOLBY True HD
Power interface: DC5.5
Power voltage and power consumption: DC5V/300mA
Color: Black
Material: Plastic+MetalPackage contents:
1 * Converter
1 * USB power cable
1 * English user manualOnly the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
