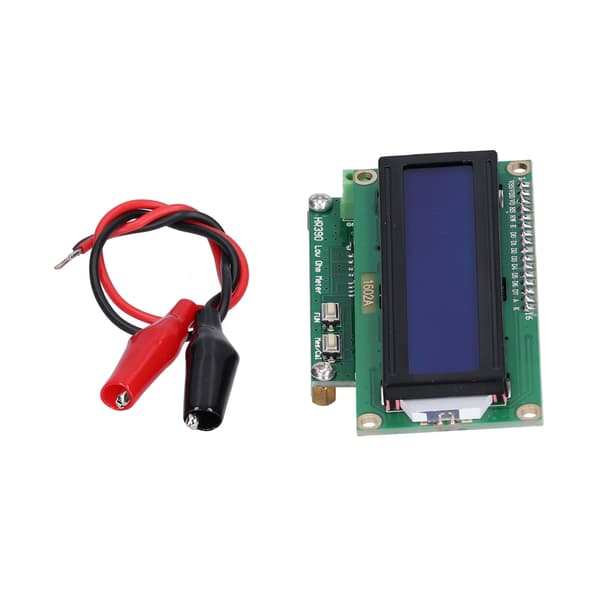

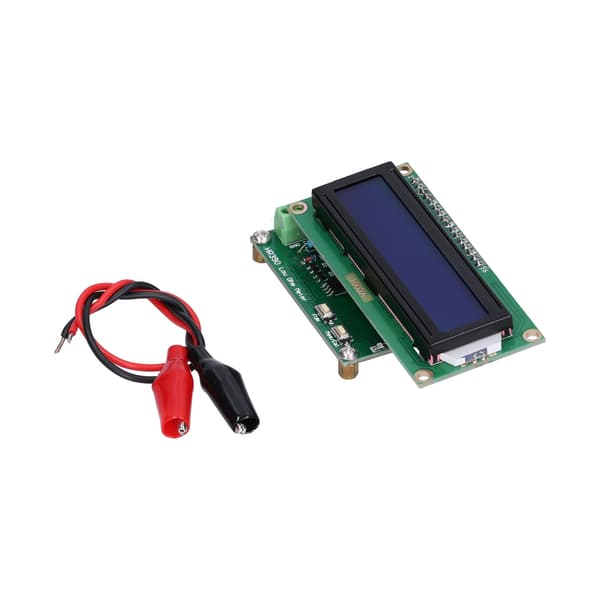

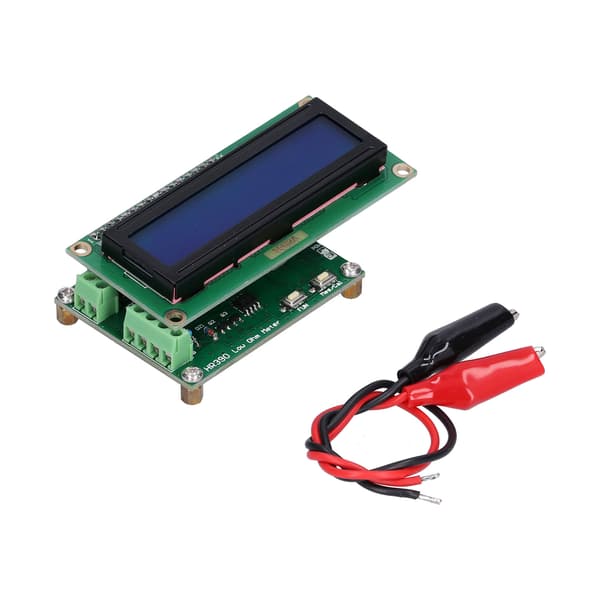

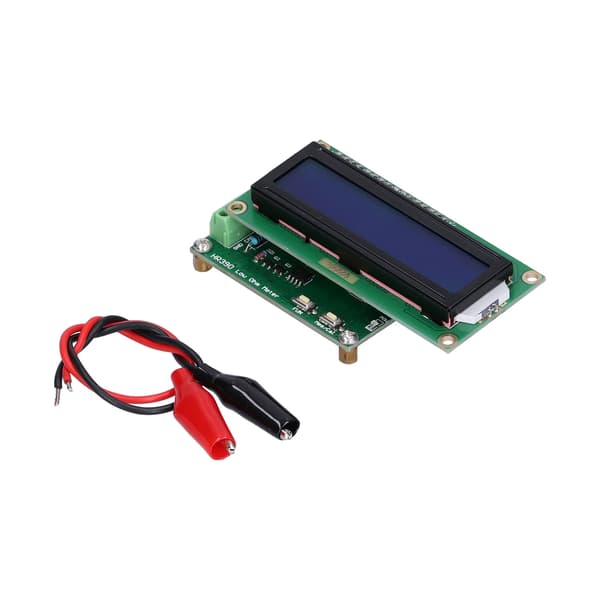

1. With this low resistance ohmmeter, you can accurately and quickly measure resistance and capacitance values. 2. The resistance measurement range is 0.001 to 120Ω, and the capacitance measurement range is 10pf to 20000uf. 3. It has a measurement resolution of up to 1 mΩ, and the high accuracy will provide more convenience for your work. 4. Comes with 2 alligator clips, the wiring is much easier, making it ideal for measuring very small resistance. 5. Small size and light weight allow for easy storage and transport, and the circuit board is also very durable.

Item Type: Low Resistance Ohmmeter
Product Material: Printed Circuit Board
Measuring Resistance Range: 0.001 ~ 120 Ω
Resistance Measurement Resolution: 1 mΩ
Measuring Capacitance Range: 10pf ~ 20000uf
Capacitance Measurement: 1pf
Working Voltage: 7~12V DC
Working Current: <100 mA
P1 Cable Definition:
1. VDD: Module power supply positive pole (7V~12V)
2. Module: GND power supply
P3 Cable Definition:
1. R+: Connect to measuring resistance.
2. R: Connect to measuring resistance
3. LOCK: Connect to the positive electrode of the measuring capacitor.
4. GND: Connect to the negative electrode of the measuring capacitor.

1 x Low Resistance Ohmmeter

2 x Alligator Clip
