General Description

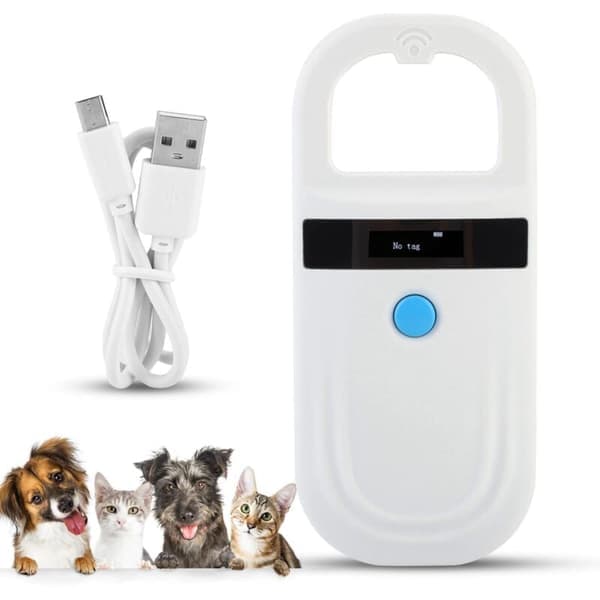

The Pet ID Reader is an essential tool for pet owners concerned about the safety of their companions. Thanks to its wireless reading technology, it allows for quick viewing of pet identification information. Equipped with a high-brightness OLED display, it is easy to use even in daylight. This reader is compatible with FDX-B (ISO11784/11785) and EMID microchips and is widely used for animal management, resource management, and railway detection.

Technical Specifications

• Frequency: 134.2 kHz, 125 kHz
• Reading Standard: FDX-B (ISO11784/11785), EMID
• Reading Distance: > 15 cm for 30 mm ear tags, > 5 cm for 2 x 12 mm glass tags
• Reading Time: < 100 ms
• Display: 0.91 inch
• Communication Method: USB 2.0
• Operating Temperature: -10°C to 50°C
• Storage Temperature: 30°C to 70°C
• Power Supply: 3.7V Li-ion battery

Installation

The pet microchip scanner must be implanted by a professional with a dedicated syringe, at a 45° angle. The recommended implantation sites are:

• Dogs and cats: base of the ear or side of the neck
• Cranes, donkeys, swans: front center of the neck
• Takin: center of the left side of the neck, near the base of the ear

Usage

Follow these steps to use the reader:

• Press the button to power on the device and enter scanning mode.
• Place a tag in the antenna coil and press the button to read.
• Press the button to read the next tag.
• If no tag is detected, the device will automatically shut down after 180 seconds, or you can manually power it off by pressing and holding the button for 3 seconds.
