1. 4kp30, 1080p120, and 1440p60 HD input and loop output. RGB primary color video format, up to 1080p30. 2. UVC standard, no need to manually install the driver, supports most third-party video software. 3. Less than 50ms delay, PCIE Gen2 ultra-high-speed interface. Supports line input and line output. 4. UVC HD video products that support EZCAP are automatic without any settings. Supports high-definition video recording. 5. Supports PIP streaming media, the source can be video capture device, audio capture device, video file, slideshow, and text. 6. Share and live stream via LAN. Supports sending the current preview screen to multiple third-party applications as a virtual camera.

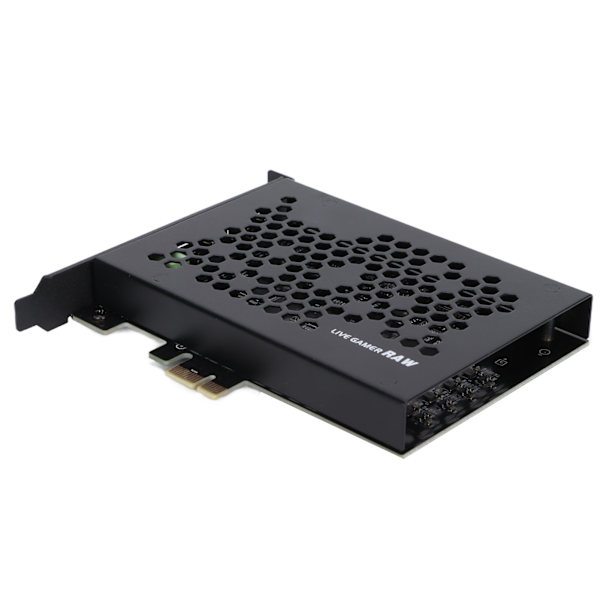

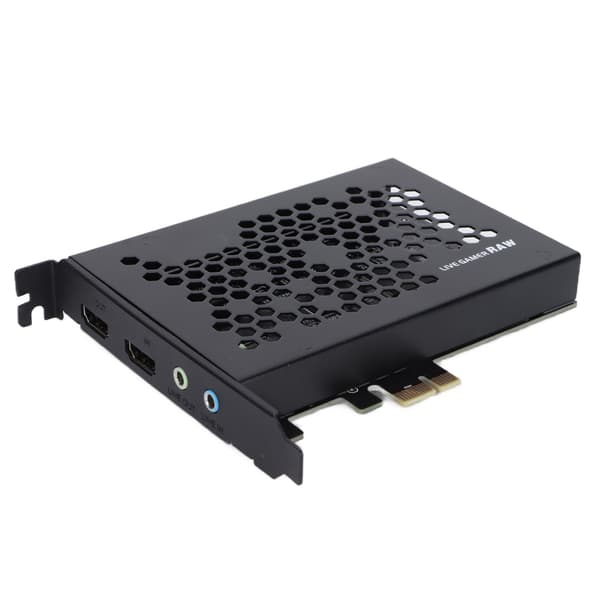

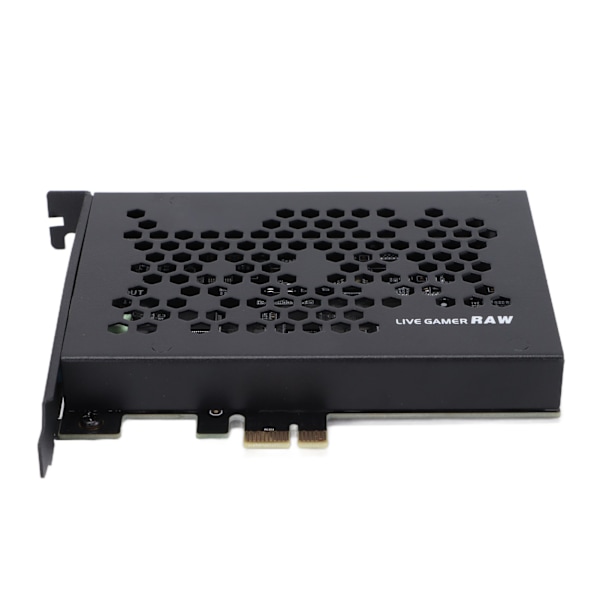

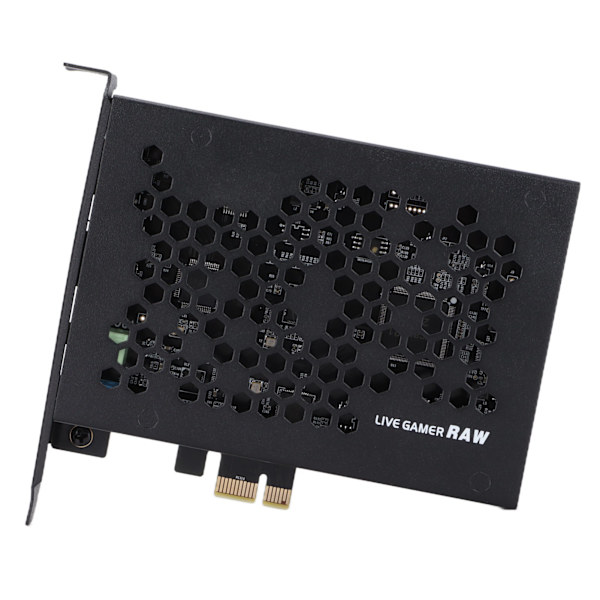

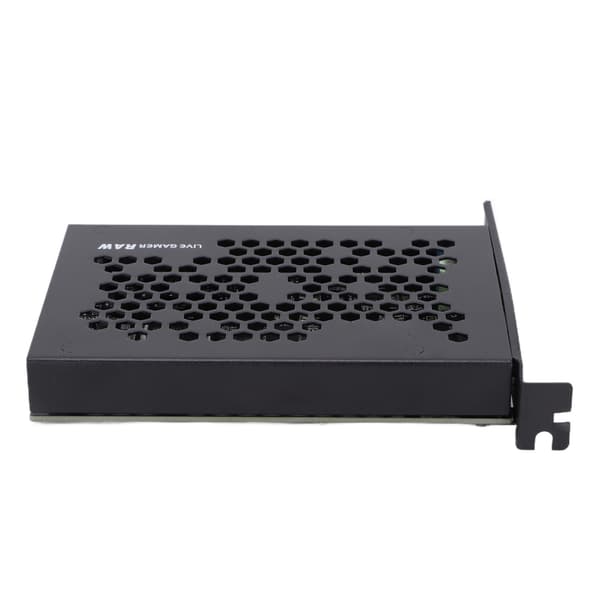

Item Type: Game Capture Card
Material: PCB
Interface: PCIE GEN2 X1

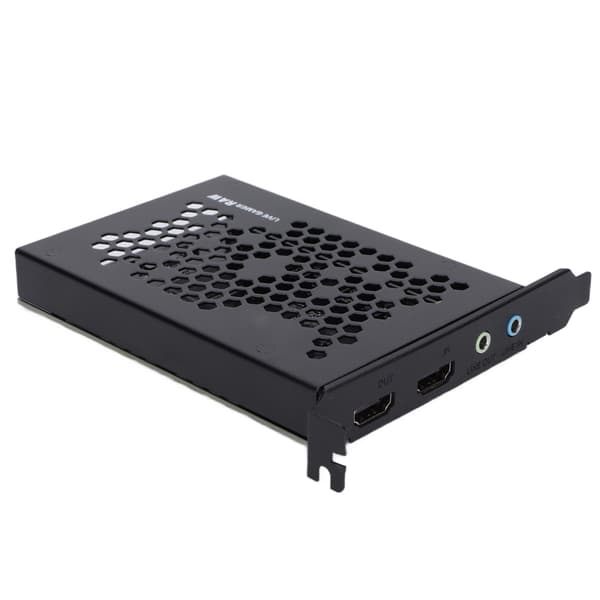

Video Input/Output: HD Multimedia Interface 1.4
Audio Input: HD multimedia interface, 3.5mm audio line input
Audio Output: HD multimedia interface, 3.5mm audio line output
Maximum loop-out resolution: 2160p30, 1440p60, 1080p120
Maximum recording resolution: 1080p120, 2160p30, 1440p60
Supported resolution: 2160p, 1440p, 1080p, 720p
Video format: YUY2, NV12, RGB
Recording resolution and maximum frame rate: 3840x2160-NV12/30; 2560x1440 NV12/60, YUY/50; 1920x1080-NV12/120, YUY/60, XRGB/30; 1280x720 NV12/60, YUY/60, XRGB/60.
System configuration requirements:
For Windows 10 x 64, PCI-E X1 slot
4kp30 or 1080p120 recording:
For Intel Core I5-6xxx for AMD RYZEN 3 RX 5700 or higher, 8 GB.
1080p60 recording:
For Intel Core i5-3330 or above (i7-3770 recommended), for Nvidia Geforce GTX 650 for AMD Radeon R7 250X, 4 GB. (RAM must be DDR4 2400 or higher)
For OS X: For OS X Pro Osx High Sierra 10.15 or higher, free PCI-E X1 slot
1 x Manual
1 x Capture Card
