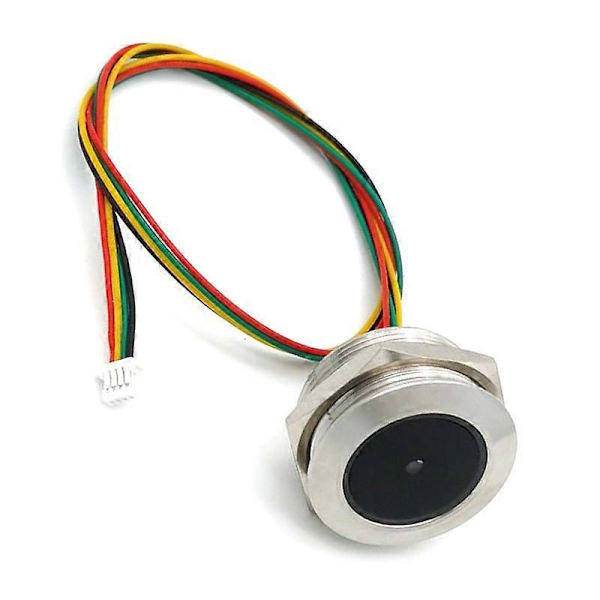

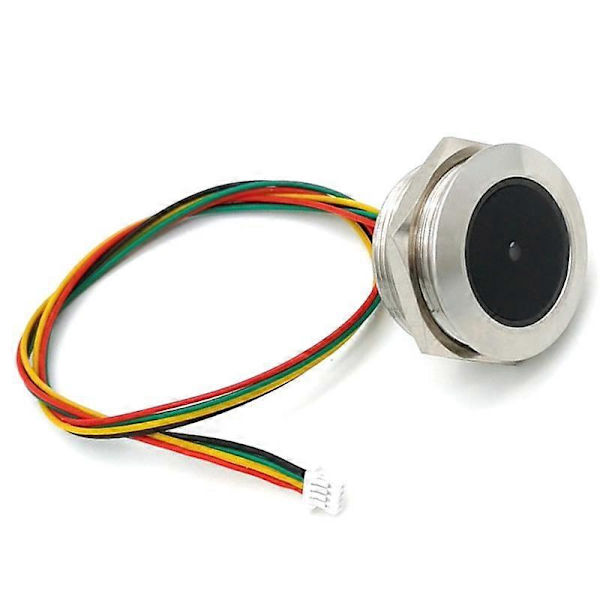

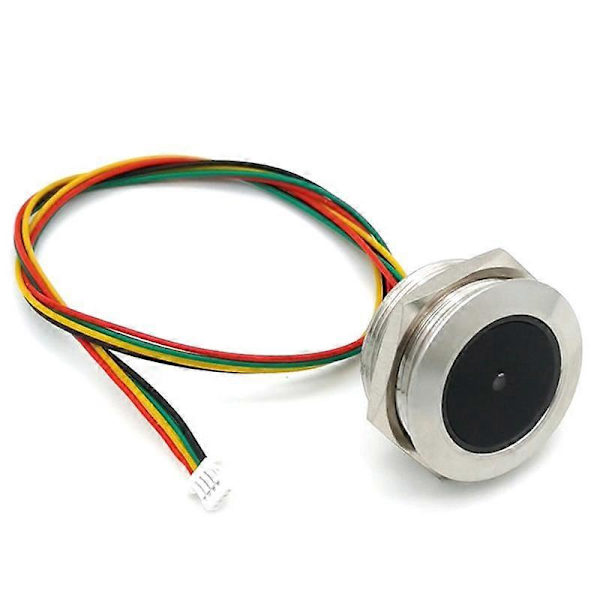

GM60 is a highly integrated and high-performance QR code reader;
It is small in size;
The QR code formats that can be recognized include QR code, Data , PDF417, EAN13, UPC, Code 39, Code 93, Code 128, UCC/ 128 et al.
Threaded stainless steel housing simplifies installation problems. Color effects can be set freely.
Color: silver
Material: stainless steel + plastic
SPECIFICATION
Model: GM60
Type: Scanner
Decoding: QR code, Data , PDF417, EAN13, UPC, Code 39, Code 93, Code 128, UCC/ 128
Mode: 640 x 480
Interface: UART
Resolution: 5mil
Serial speed (UART): 57600
Operating voltage: 3.3V
Operating current: 70mA
: 25%
Weight: 25g

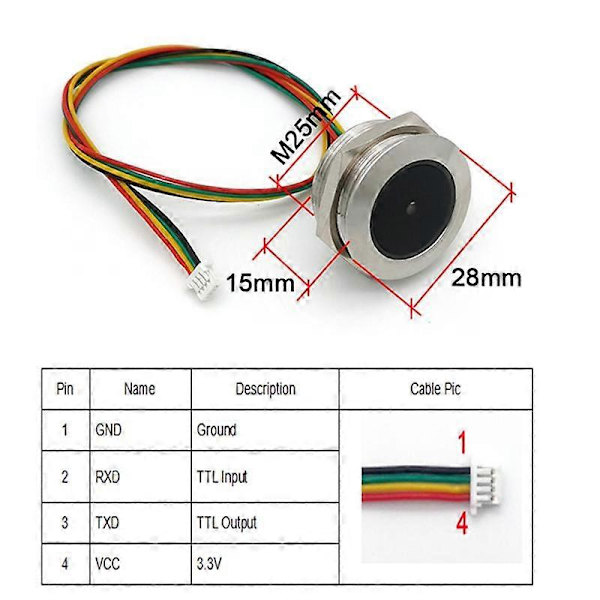

Size: Outer diameter 28mm Inner diameter 25mm
Height 15mm Thread M25
: Roll 360, Pitch 55, Yaw 55
Viewing: 69 (Tilt), 56 (Elevation)
Light: Colorful indicator/green light indicates successful reading
Operating temperature: -30 degrees to 70 degrees
Storage temperature: -30 degrees to 85 degrees
Temperature humidity: 5% to 95% Relative humidity, non-condensing
You can download the GM60 manual from the following website:
Content:
1 x Scanner module
Only the above content, others are not included.
Note: Light and different displays may cause the color of the item in the picture to be a little different from the real thing. The allowed measurement error is +/- 1-3 cm.
