Features:
Lightweight Design: Weighs only 195g, providing a smooth printing experience.
Easier Filament Feeding: Upgraded switch lever frees your hands when feeding.
Adjustable Tension: The screw tensioner allows for better filament grip, adjustable to accommodate flexible filament. Efficient Heat Dissipation: Heatsink design optimized to improve heat dissipation, prevent heat creep, and ensure the extruder's longer lifespan.
Improved Printing Precision and Speed: Dual gear extrusion with 770N extrusion force to improve printing speed and maximize precision.
Perfect Compatibility: for many materials, ranging from PLA and ABS to TPU, Nylon, and PETG.
Specifications:
Extrusion Method: Dual gear extrusion
Nozzle Diameter: 0.4mm
Maximum Printing Temperature: 270℃
Weight: 195g (including aluminum heat block)
Maximum Extrusion Force: 7.5kg (depending on filament)
Extrusion (based on existing): 600 mm³/min (depending on filament)
E-steps: 932/mm at 16 microsteps (calibration recommended)
Klipper Rotation Distance: 3.433
Recommended Motor Current: 800mA
Gear Ratio: 7:1
Drive Wheel Circumference: 24.5mm
Filament Diameter and Tolerance: 1.75 ± 0.05mm
Thermistor Type: NTC100K
Heater Cartridge Power: 40W
Heater Cartridge Voltage: 24V
Not for standard NEMA14 motor
Note:
Due to the problems of lighting effects and shooting angles, there will be certain tolerances in the product, please understand.
Please allow 0-1cm error due to manual measurement.
Package Includes:

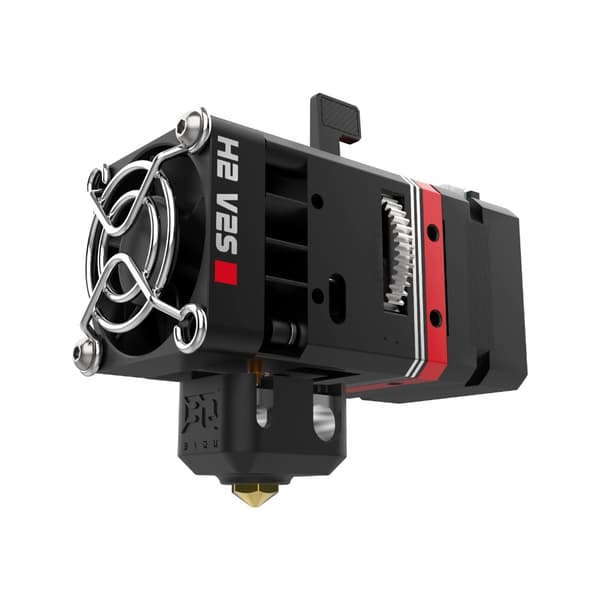

1 x H2 V2S Extruder
