1. Uses cross-roller guide rails, has high accuracy and stable movement. Can be fixed in the appropriate position with customers' precise machines or instruments. 2. Lightweight, the main material is aluminum alloy, suitable for other built-in equipment. 3. The micrometer mode is extremely precise, the rotating platform can precisely adjust the angle of the platform to the approximate position, and the thickness adjustment can be found with the micrometer. 4. Suitable for various production machines with high accuracy or medium load, inspection device, precise positioning and quantitative movement. 5. There are various types of sliding tables that can be matched with each other, such as single axes, double axes, z-axes, C-axes, R-axes, etc. 6. Diversified feeding methods such as coarse and fine methods such as coarse gears, with scale to handle the movement value.

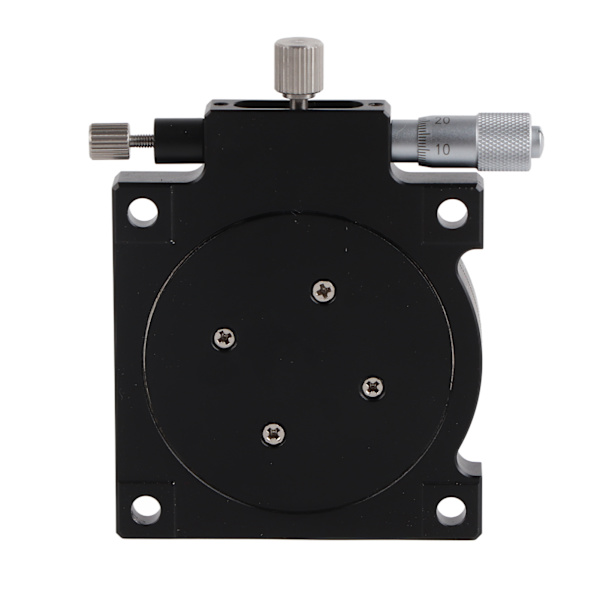

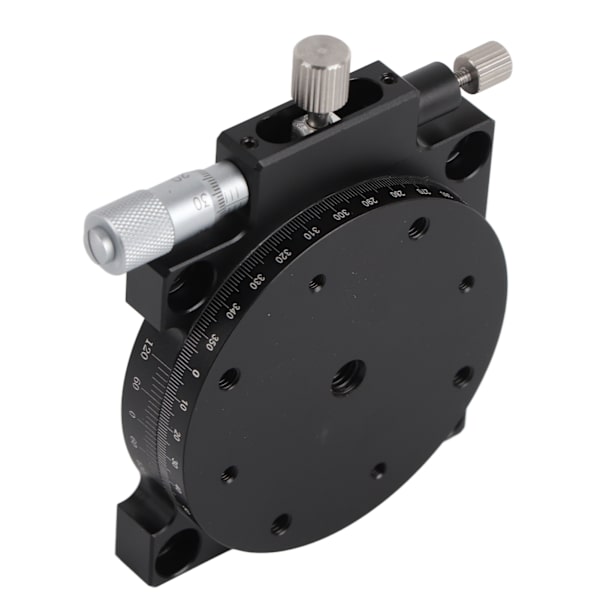

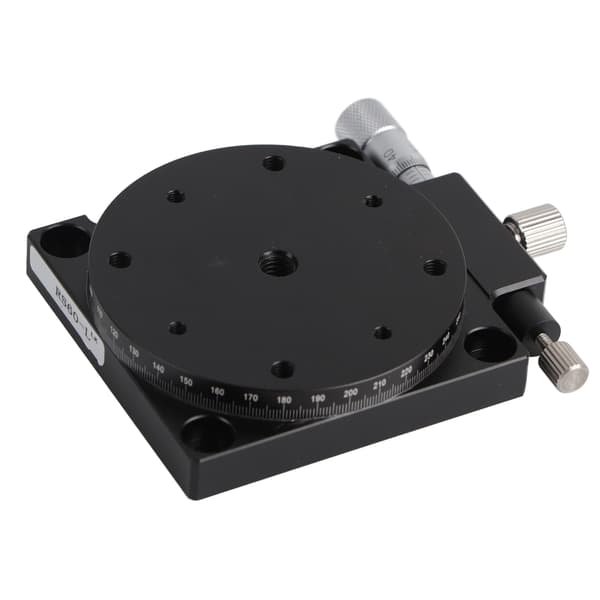

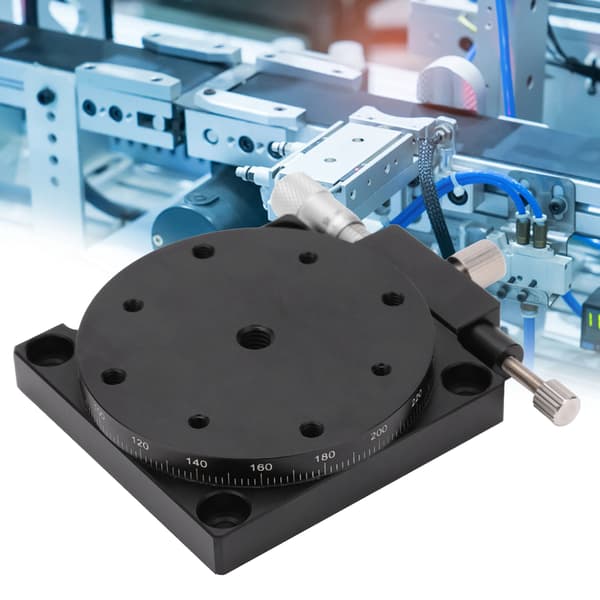

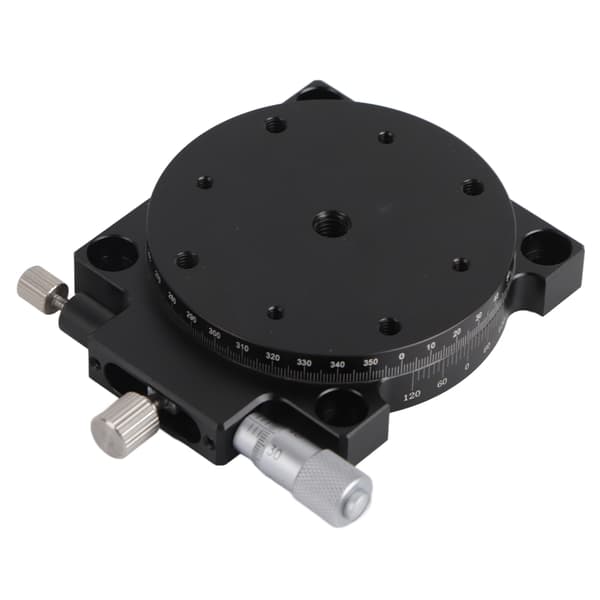

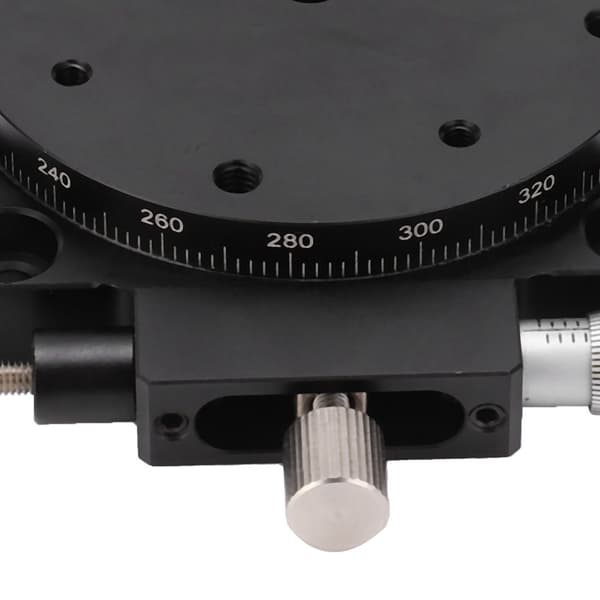

Item Type: Manual Displacement Platform
Material: Aluminum Alloy
Table Diameter: Approx. 60 mm / 2.4 inches
Movement Mode: RS Rotation R-axes
Adjustment: 360 degree coarse adjustment
Fine Adjustment: ± 5 °
Load: 29.4n (3kgf)
Minimum Scale: 2 degrees
Concentricity: 0.03 mm
Table Type: Manual Sliding Table
Installation method:
1. Use the countersunk holes on the base to install the platform.
2. Rotate the work surface to make the screw through the holes and the countersunk head on the base concentric.
3. Then you can fix it with screws and repeat the left side, then the platform can use 4 fixed countersunk holes.
1 x Manual Displacement Platform
