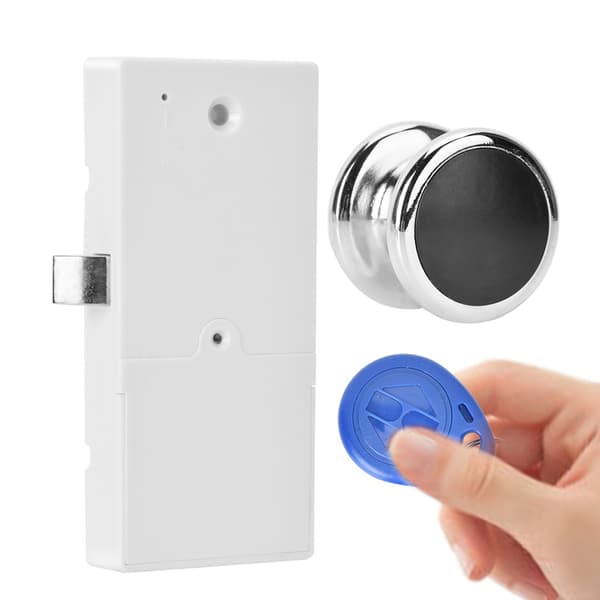

This smart RFID lock offers a user-friendly interface and simple operation, ensuring stable performance and regular function. Its sleek, secure, and durable design features an integrated structure that is convenient to install. The lock uses an EM contactless card with a sensing distance greater than 20mm. It supports two opening solutions: single-card solution and dual-card solution. In use, sound and light indicators are activated, and the blue light turns gray to signal low battery. Additionally, the lock automatically retracts and indicates a blocker when an obstacle is detected. This product is widely applicable for swimming pools, sauna bathing areas, golf courses, gym lockers, business environments, schools, hotels, supermarket lockers, and more.

Setting method:

1. Single-card opening: Induce once with the management card. When the blue light flashes, induce the guest card. After the flashing stops, the guest card can open the door. Note: If a guest card is set with the management card, the new guest card can open the door, and the previous card's unlocking function is automatically canceled.

2. Dual-card opening: Induce continuously twice with the management card. When the blue light flashes, induce the waiter card. After the flashing stops, both the guest card and the waiter card can be used to open the door. Note: To set multiple waiter cards, you must set them continuously after the management card emits two \"di\" beeps.

Specifications:

Condition: Brand new

Material: Zinc alloy

Color: Shown as picture

Card type: ID card

Power type: 4 * 1.5V alkaline battery (not included) (with external power supply)

Anti-static: Greater than 15000 V

Card reading time: Less than 0.1 seconds

Working humidity: Relative humidity 15% to 85%

Battery life: Greater than 15 months

Low voltage directive: 4.8 V

Working temperature: -40 to -85 degrees Celsius

Static power consumption: Less than 8 uA

Power consumption: Less than 150 mA

Size: Shown as picture

Package weight: Approximately 247g or 8.7oz

Package list:

1 * Panel

1 * Lock body

1 * Lock catch

1 * Induction card

1 * Installation screw

1 * Opening hole drawing

Note:

1. Accessories for each lock: 1 guest card, 1 external power supply box.

2. If the lock does not have enough power and cannot open the door, you can power it with the external power supply box's connection panel to open.

3. Use only AA alkaline batteries, rechargeable batteries cannot be used.
