Features:
Supports scanning of screen codes and paper codes. High-performance chip, exceptional decoding capabilities, can scan paper and film barcodes, highly reflective and low-brightness screen codes.

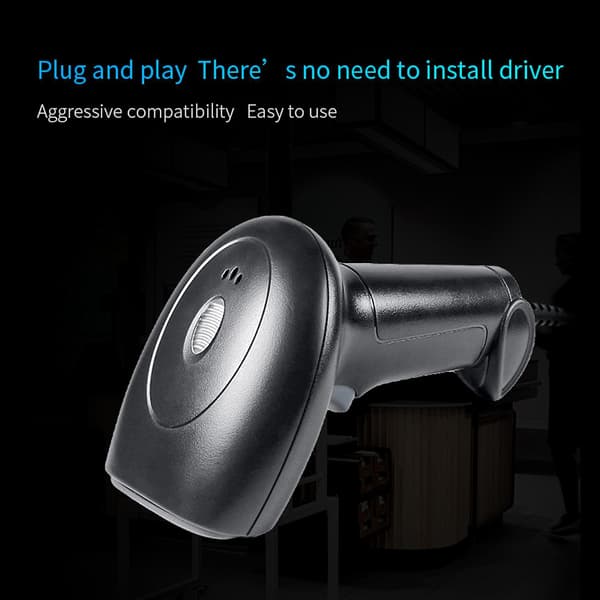

Plug and play, no driver needed, compatible with Linux, Android, Windows XP/7/8/10, MacOS.

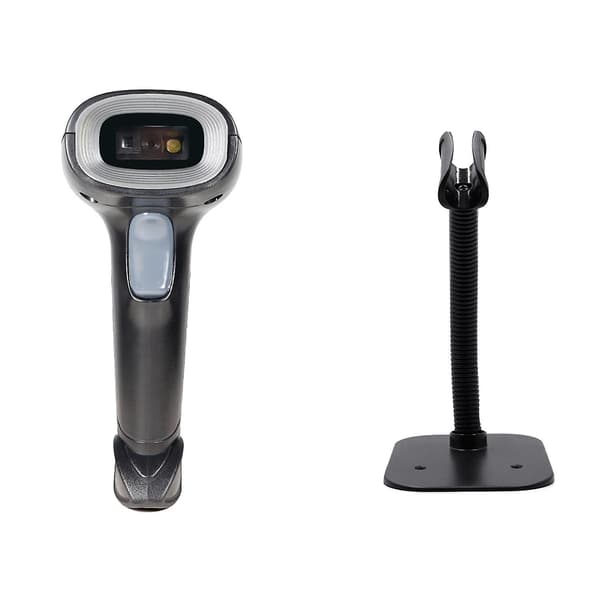

Comes with a stand with ergonomic design for hands-free scanning, flexible and adjustable, convenient to pick up.
Easy to install, widely applied in market, warehouse, library, express and logistics industry, retail, medical management, etc.
Strong decoding ability, supports 1D (Codabar, Code 39, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 93, Code 11, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, MSI, ISSN, ISBN, GS1 DataBar) and 2D (PDF417, Micro PDF417, QR Code, Micro QR, Aztec, Data Matrix).
Specification:
Model: HS22

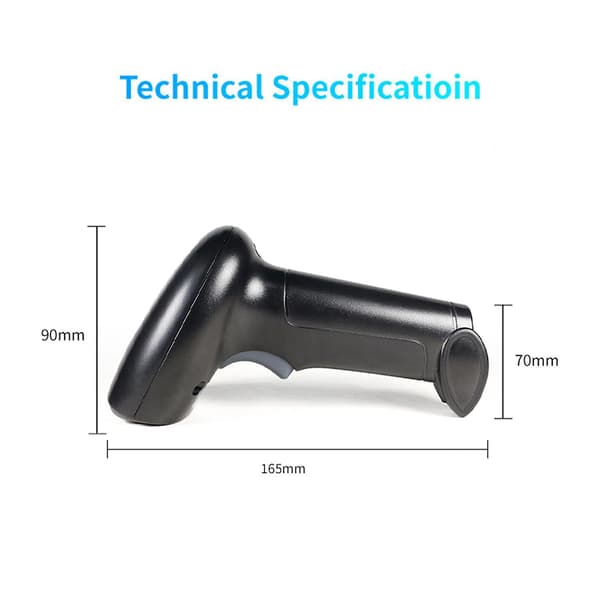

Size: 165mm (W) × 70mm (D) × 90mm (H)
Weight: 160g
Image Sensor: 640*480 CMOS
Illumination: White LED
Focusing: Red LED
Supported Systems: Linux, Android, Windows XP/7/8/10, MacOS.
Illumination: White LED
Decoding Types:
2D: PDF417, Micro PDF417, QR Code, Micro QR, Aztec, Data Matrix
1D: Codabar, Code 39, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 93, Code 11, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, MSI, ISSN, ISBN, GS1 DataBar
Recognition Accuracy: ≥5mil
Depth of Field:
35mm ~ 190mm EAN-13 (13mil)
25mm ~ 60mm Code39 (4.7mil)
20mm ~ 75mm Data Matrix (10mil)
20mm ~ 90mm QR Code (15mil)
Minimum Print Contrast: ≥20%
Scanning Angle: Tilt ±70°, Skew ±70°, Rotation 360°
FOV: Diagonal 52.1° (D), 43.1° (H)
Interface: USB
Operating Voltage: DC 5V ±5%
Operating Temperature Range: -10℃~+60℃
Storage Temperature Range: -20℃~+70℃
Operating Humidity Range: 5%~95%
Ambient Light Intensity: 0~100,000LUX
Package Size: 188x110x85mm/7.4x4.3x3.3in
Package Weight: 373g/13.1oz
Package List:
1 x Barcode Scanner
1 x Stand
1 x USB Cable
