1, 4-pole 12-slot high-torque motor with CNC machined 6061 T6 billet aluminum heatsink. 2, High-purity copper windings with a shaft diameter of 3.175mm/0.1in can maximize efficiency. Precision design can achieve maximum energy conversion. 3, Precisely balanced rotor has sufficient smoothness to achieve best reliability and maximum RPM. 4, The programming card has a portable design and can be carried with you, which is convenient and easy to use. 5, With ITEM, VALUE, OK, RESET 4 buttons and indicator light, it is easy to set.

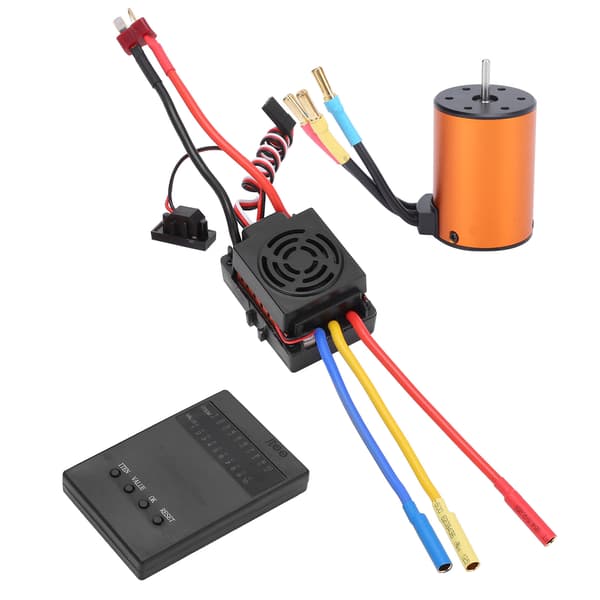

Item Type: 3650 4300KV Brushless Motor + 60A ESC + Programming Card Combo
Material: Aluminum Alloy + Copper + Plastic
Product Color: As Pictures Shown
Product Weight: Approx. 317g / 11.2oz
Compatible: Fits for 1/8 1/10 RC Car
Motor Parameters:
Diameter: Approx. 36mm / 1.4in
Length: Approx. 50mm / 2.0in
Shaft Length: Approx. 15mm / 0.6in
Shaft Diameter: Approx. 3.175mm / 0.1in
Watt: 900W
Maximum Voltage: <12V
Maximum Amperage: 75A
KV (rpm/volt): 4300KV
Maximum Speed: 50,000
Plug Type: 4mm Golden Banana Plug
ESC Parameters:
Continuous Current: 60A
Peak Current: 320A
Applicable Power Supply: 2-3S LiPo / 4-9S NiMh (not included)
Bec: 5.8V / 3A
Power Connector: T-connector male plug
Programming Card Parameters:
Low Voltage Cutoff: 3.7V / 3.6V / 3.5V / 3.4V / 3.3V / 3.2V / 3.1V / 3.0V / 2.9V / 2.8V / 2.7V / 2.6V
Start Mode: Medium/Soft/Strong
Maximum Brake Force: 50%, 25%, 75%, 100% (25A, 35A, 45A, 60A), 25%, 50%, 75%, 100% (80A, 120A)
Maximum Reverse Force: 25%, 50%, 75%, 100%
Neutral Range: 9%, 6%, 12% Working Status

1 x Motor

1 x ESC

1 x Programming Card

1 x Manual
