General description

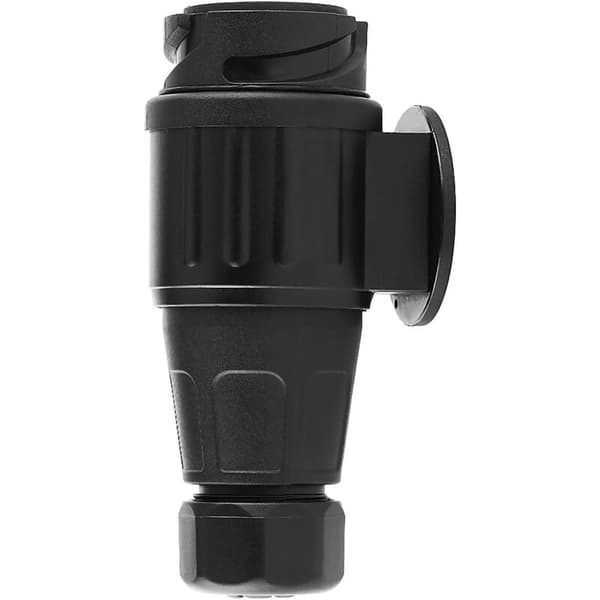

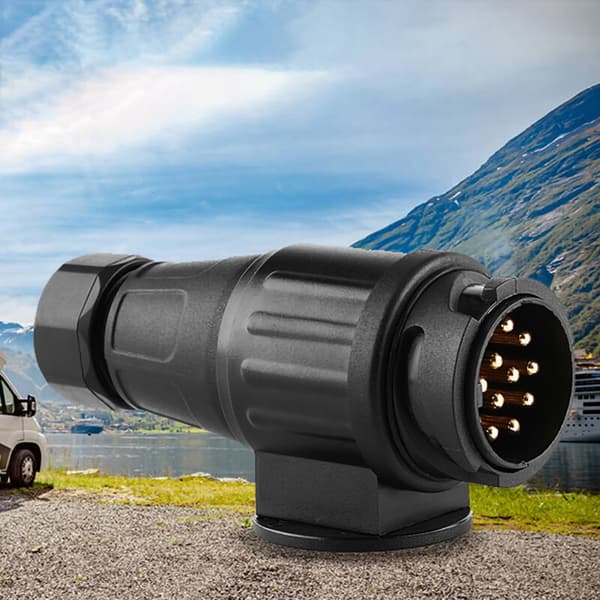

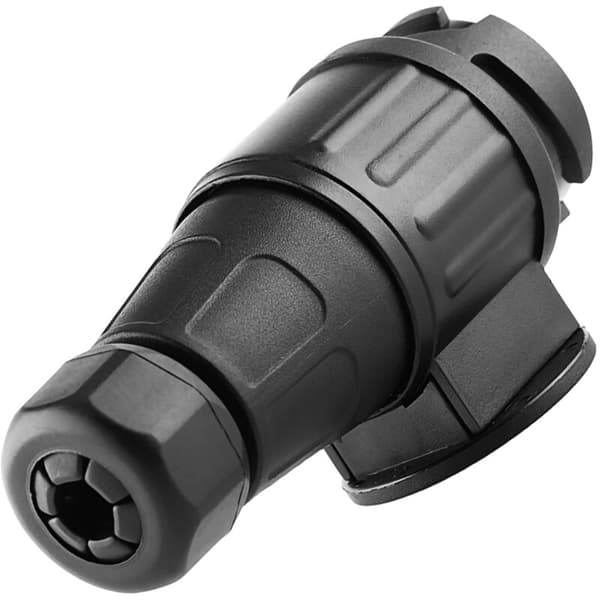

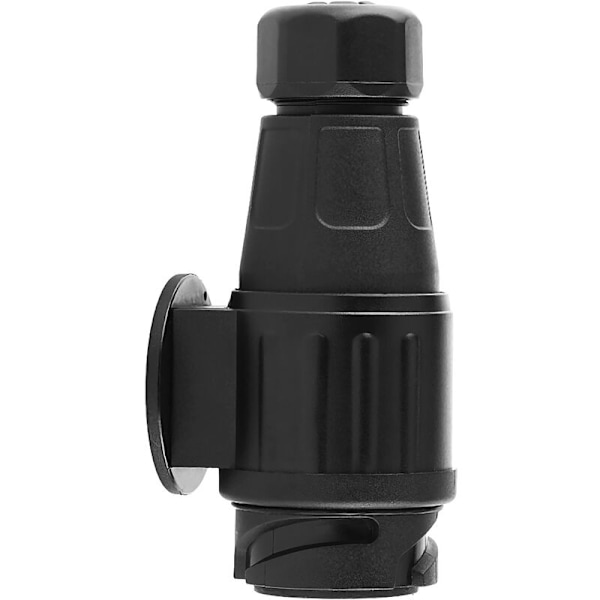

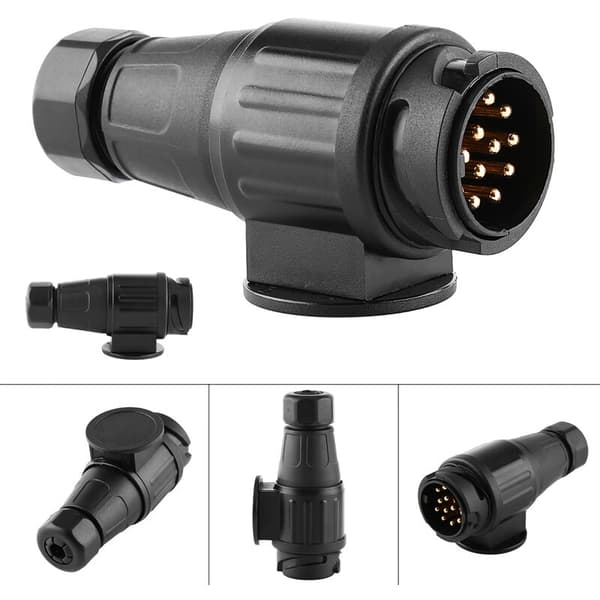

This European 13-pin plastic trailer plug is used to power trailer or caravan lighting. It enables a secure connection between your trailer and the power supply and effectively replaces an old or damaged socket. It provides the necessary power to run the caravan's refrigerator and charge its battery during the journey, ensuring everything is ready upon arrival. In addition, you can power the caravan's interior lighting with the car battery, while ensuring that the tail lights of the trailer or caravan are working.

Technical specifications

Material: PA plastic and brass

Color: Black

Voltage: 12V DC

Package weight: Approx. 140g

Compatibility and accessories

This socket is compatible with trailers and caravans and adapts to the configuration of the chas13-pin connector. It is suitable for brake lights, side lights, etc.

Installation

It is quick and easy to install this socket. Just connect it to establish a secure connection.

Usage

Use this socket to power your trailer lights, charge your caravan battery and power your refrigerator while on the road.

Other information

C-configurationhasWiring diagram:

PIN 1 - Yellow wire (Left turn signal)

PIN 2 - Blue wire (Rear fog light)

PIN 3 - White wire (Ground)

PIN 4 - Green wire (Right turn signal)

PIN 5 - Brown wire (Right tail light and license plate light)

PIN 6 - Red wire (Brake light)

PIN 7 - Black wire (Left tail light and license plate light)

PIN 8 - Pink wire (Reverse light)

PIN 9 - Orange wire (12V permanent battery power)

PIN 10 - Gray wire (12V ignition when battery is charged or refrigerator)

PIN 11 - White/black wire (Ground for terminal 10)

PIN 12 - White/blue wire (NOT often used)

PIN 13 - White/red wire (Ground for terminal 9)

Package includes: 1 x 13-pin plastic plug.
