Specification:
Material: Polyurethane, Stainless Steel
Color: Gold Tone, Black, Clear
Bridge Hose Inner Diameter: 9 mm/0.35 inch
Bridge Hose Length: 64 cm/25.1 inch
Bridge Hose Outer Diameter: 10 mm/0.39 inch
Fill Hose Thread Size: 1/4 NPT
Fill Hose Hole Diameter: 8 mm/0.31 inch
Fill Hose Length: 66.7 cm/26.2 inch
Fill Hose with Screw Cap Diameter: 26 mm/1.02 inch
Fill Hose with Screw Cap Outer Diameter: 12 mm/0.47 inch

Fitment:

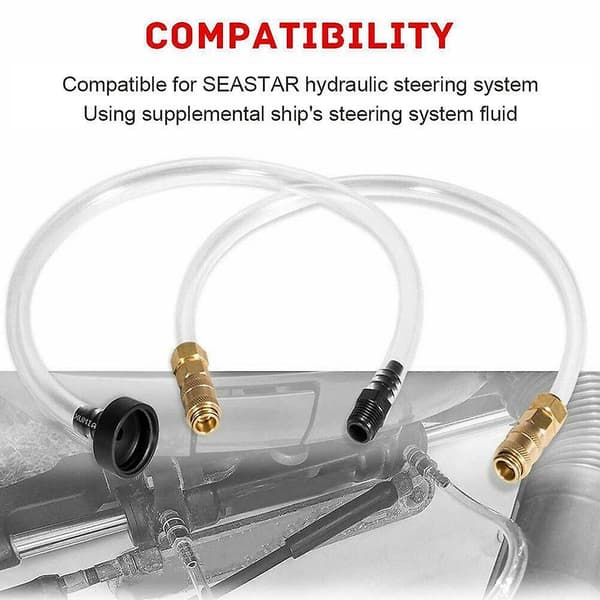

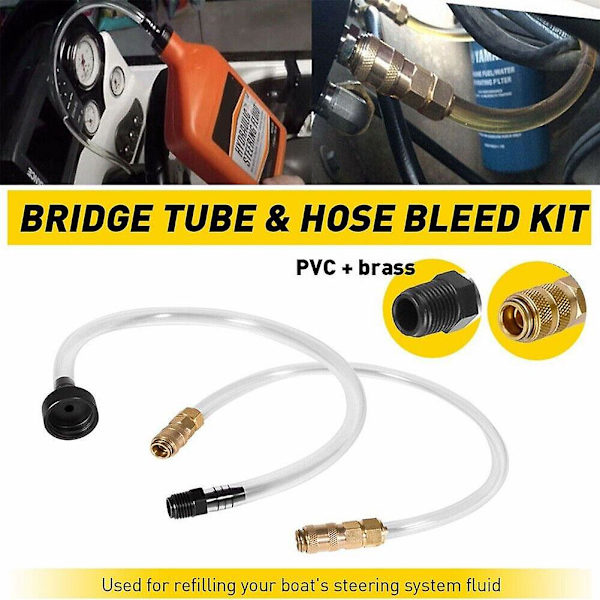

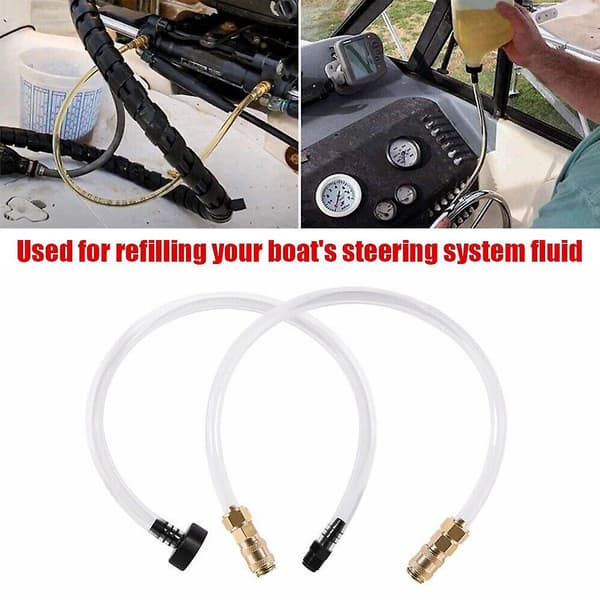

Fits Seastar inboard and outboard hydraulic steering systems. Used to replenish the steering fluid in your boat.

Basic Instructions:
1. Attach bottle to helm reservoir (do not puncture bottle) (do not allow bottle to run empty).
2. Connect bridge hose to the fittings on the steering cylinder and loosen the fittings.
3. Use the helm to pump fluid through the system by turning the wheel in one direction. Air bubbles will be pushed to the reservoir at the helm.
4. Manually swing the outboard through full travel to release trapped air.
5. Note: Pointing the fittings upwards while pumping fluid with the helm will allow air to escape the cylinder.
6. Repeat steps 3-4 as many times as needed until no air is visible in the bridge hose.
7. Tighten the fittings before removing the bridge hose.

Package Content:
1 x Bridge Hose
1 x Fill Hose with Screw Cap
