Features:

Uses solid brass for the valve core, durable and not easy to rust.

There is a filter screen at the cold and hot water connection to protect the water from other impurities.

Wall-mounted thermostatic mixer for bathtubs is easy to install and suitable for most water heaters.

Easy to control the amount of hot and cold water, adjust the water temperature as needed.

Built-in temperature control safety device, automatically shuts off hot water when there is no cold water, to protect against scalding.

Specifications:

Material: Brass

Size: Approx 11.5x6.2cm/4.52x2.44in

Working Pressure: 0.05-1mpa

Recommended Pressure: 0.1-0.5 mpa (a relief valve is required for pressures above 0.5 mpa)

Standard Pressure: dynamic pressure 0.30.02 mpa

Cold Water Temperature: 4C-29C

Hot Water Temperature: 55C-85C

Recommended Normal Use Temperature: 60-70C

Water Temperature Control Range: 20C-50C

Safety Button Temperature: 38C

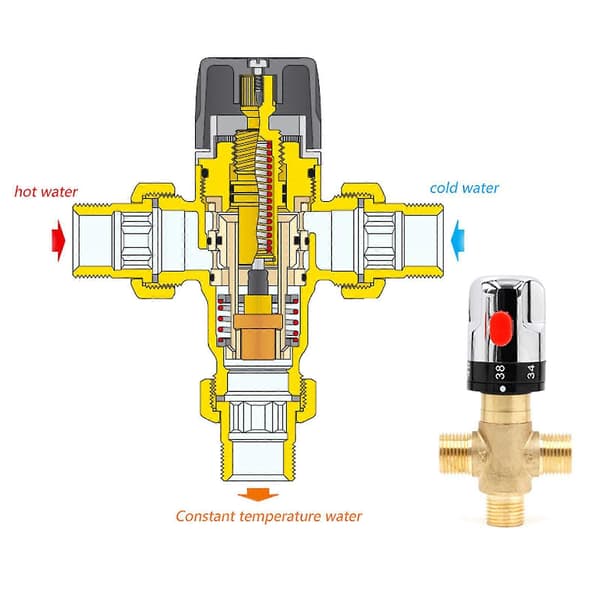

The thermostatic mixing valve is an accessory product specially developed for hot water systems. It is widely used in electric water heaters, pipeline water valves, washbasins, bidets, showers, solar heaters, and central hot water supply systems. It can also be applied to electric water heaters and solar heaters. Users can adjust the mixing temperature of cold and hot water according to their needs. The required temperature can be quickly reached and stabilized, ensuring a constant water temperature and not being affected by changes in water temperature, flow, and water pressure. When the cold water is interrupted, the water mixing valve can automatically shut off the hot water within a few seconds, playing a role in safety protection.

Note:

1.Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order.

2.Due to the difference between different monitors, the picture may not reflect the actual color of the item.

Thanks for your understandings.

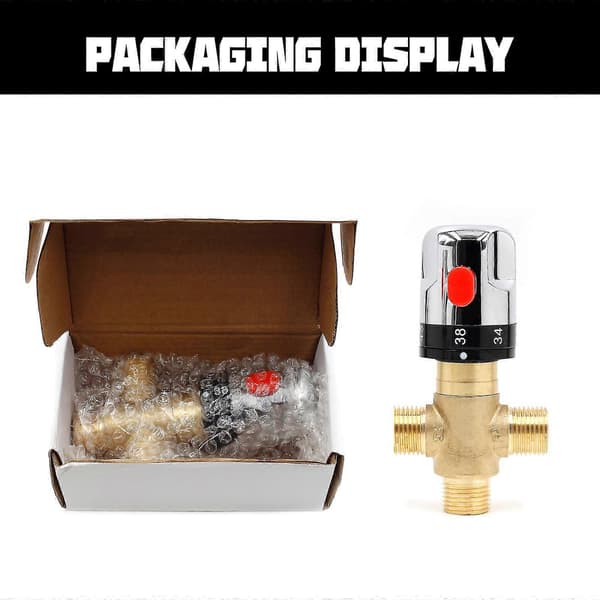

Package Includes:

1x Thermostatic Valve
