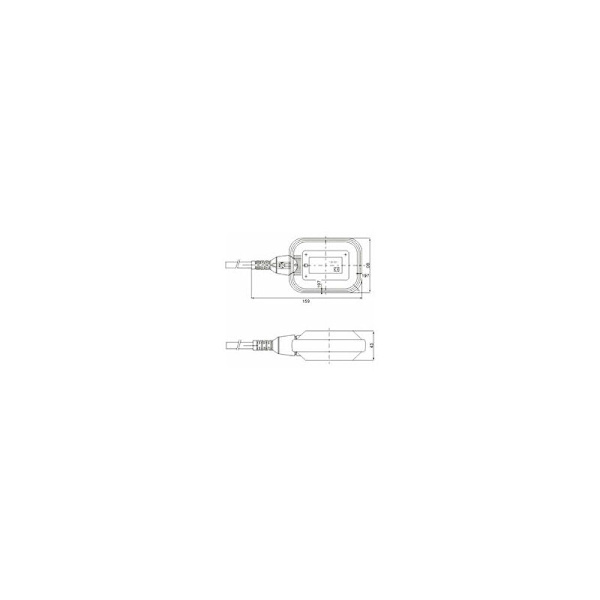

The WilTec float is a hollow float that works on the principle of buoyancy. This hollow float is lifted by the rising liquid and pushed upwards until it reaches an angle of 50° relative to the horizontal plane, and then a start is triggered. The float can be attached with a screw on the side or, if you have an open tank, by placing it on top of the liquid. The switching point can be defined very precisely thanks to the standard installed ballast weight. Suitable for almost all pumps. The float is very well suited for level control of liquids that do not attack its material, regardless of the degree of contamination. You can use this float as a full or empty indicator, to control pumps or valves or other alarm signals. If your pump has a power of more than 1.1 kW, you must use a standard plug or a relay, which are sold on the market, upstream. A 380/400V three-phase pump can be operated with a 380V power supply. 5m 250V 16A Level Switch for Submersible Pump Reference 50629 WEEE Registration Number DE45283704 Number of packages 1 Dimensions 80 x 159 x 43 mm (W x H x D) Material metal / plastic

Protection class IP 68 Input voltage 230VAC ~ 50Hz Starting angle (float) +/- 50° Cable length 5m Temperature range from 0-50°C Extra features/properties Cross-section 3 x 0.5 mm², switching capacity max. 16A Product float switch Plug without plug Filter medium fresh/clear/fountain/waste water weight [kg]0.8000 package: height in mm110 package: length in mm220 package: width in mm80 color difference due to lighting p> AvailabilityImmediate delivery, delivery within 3-5 working days* NavigationPackage
