Double-shielded satellite cable for interference-free transmission

Molded plug on both sides to protect against dust, dirt and mechanical stress

Conductivity is maintained for a particularly long time, as gold-plated contacts do not corrode.

With sheath current filter to avoid interference noise.

For connecting devices with a coaxial connection, e.g. TVs, receivers and radios

Cable sheath Diameter : 5.3 mm
Inner conductor, cable diameter : 0.5 mm
Number of shields : 2 x
Markings : WEEE, CE
CAS no. : 7439-92-1
chemical substance : Pb
SCIP no. : b5c3d1cb-bd84-48f0-b390-6d28774c16b9
Impedance : 75 Ω
Shielding effectiveness : 80 dB
Cable type : Coaxial cables
Ferrite core : yes
Inner conductor material : CCS
Type 1, shielding : Foil (alu)
Type 2, shielding : Shield braiding (alu) 112pcs.
Connection, contact material : Gold-plated
Connection, shielding : yes

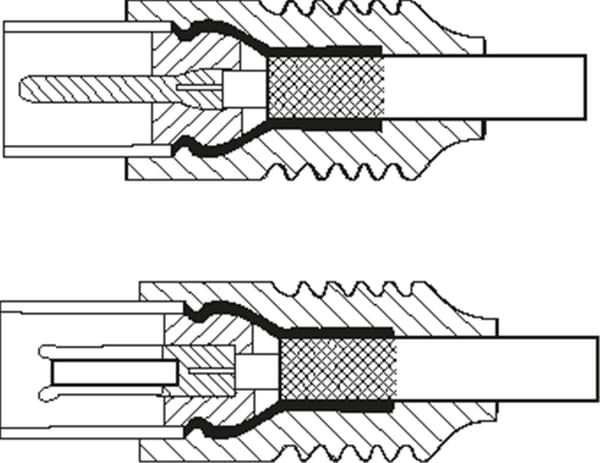

Connection, type : IEC / coaxial plug
Connection 2, type : IEC / coaxial socket
Color : white
Cable length : 3.5 m
Material cable sheath : PVC
Color version : white
Consumption unit : 1pc. in plastic bag
