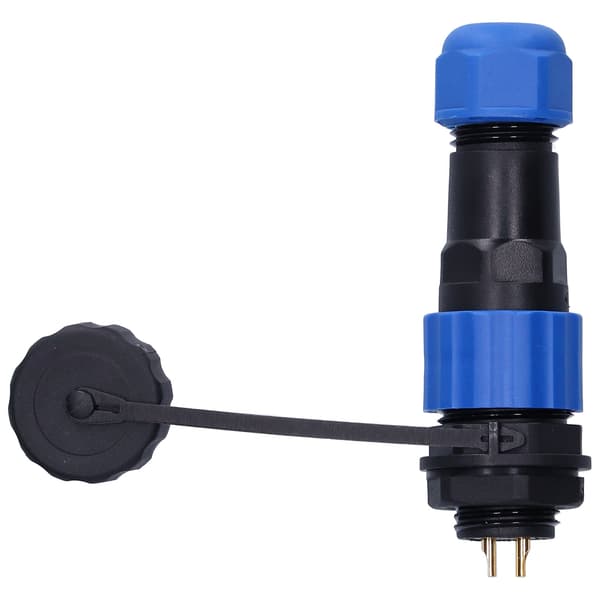

1. LONG SERVICE LIFE: This socket is not a hollow pin, which is resistant to plugging and unplugging, is made of pure copper and gold-plated, with oxidation resistance and long service life. 2. SAFE and RELIABLE: The shell is made of PA66 and PA6 materials, which have corrosion resistance and flexibility, and will not cause safety hazards due to cracking due to low temperature. 3. WIDE SPECIFICATIONS: A variety of core number specifications are available to meet usage needs. This is a 380V 10A SP16 back nut IP68, and is also an M16 x 1.5 mm/0.06in aviation connector. 4. ELECTRIC SOLDERING IRON WELDING: This socket uses electric soldering iron welding method for conductive wire connection to ensure that the connection is firmer and more convenient to use. 5. SCOPE OF APPLICATION: Widely used in communication equipment, instrumentation, computers, program-controlled machines, alarms, etc., and bridge electronics

Item Type: Aviation Connector
Material: PA66, PPS, silicone gel, copper
Uses: Widely used in communication equipment, instrumentation, computers, program-controlled machines, alarms, etc., and electronic bridge equipment
Shell Material: PA66, PA6
Insulator: Thermoplastic PPS (high temperature resistant 220 ℃)
Contact Material: Copper (gold-plated)
Connection Method: Soldering (if solder paste is used, it must be cleaned with alcohol)
Connection Method: Threaded connection
Head Size: Approx. 16 mm/0.6 inch
Thread Specification: For M16 x 1.5 mm/0.06 inch
Insulation Resistance: 2000 mΩ
Copper Needle Diameter: Approx. 1.8 mm/0.07 inch
Applicable Wire Gauge for Copper Needle (mm²/AWG): ≤1.5/14
Shield Current: 10A
Working Voltage: 380V
Applicable Cables for Shell: Φ6~7.5 mm²
Mating Times: More than 500 times
Operating Temperature Range: -25℃ to 85℃
Tightness: According to IP68

1 x Male Aviation Plug Socket

1 x Female Aviation Socket
