1. TDA7498E CHIP: Built-in TDA7498E chip enables the power amplifier module to maintain ultra-low distortion throughout the audio frequency band while exhibiting HD sound quality and delivering true sound quality. 2. POWERFUL PERFORMANCE: 2 TDA7498E power amplifier chips are used. Support wide voltage input 15‑36V, power up to 160W x 2. 3. MULTI PROTECTION: Bluetooth power amplifier board has multiple protection mechanisms to ensure safe operation. Equipped with anti reverse connection, undervoltage, overheating, overcurrent and short circuit protection. 4. FAST HEAT DISSIPATION: Reduce the overall temperature of the module to prevent overheating, provide heat dissipation for power supply, amplifier chips and filter capacitors, reduce temperature rise and its impact on sound quality, and ensure long-term stable operation of components. 5. IDEAL REPLACEMENT: Wonderful replacement for old and damaged parts, fine workmanship, attention to detail, help you improve work efficiency!

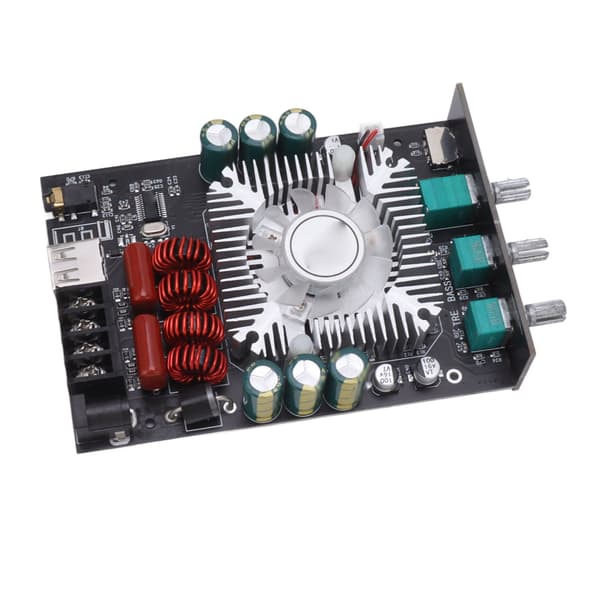

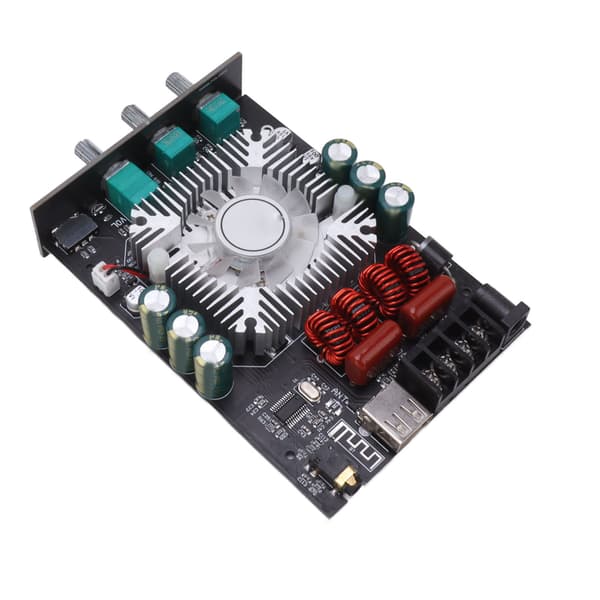

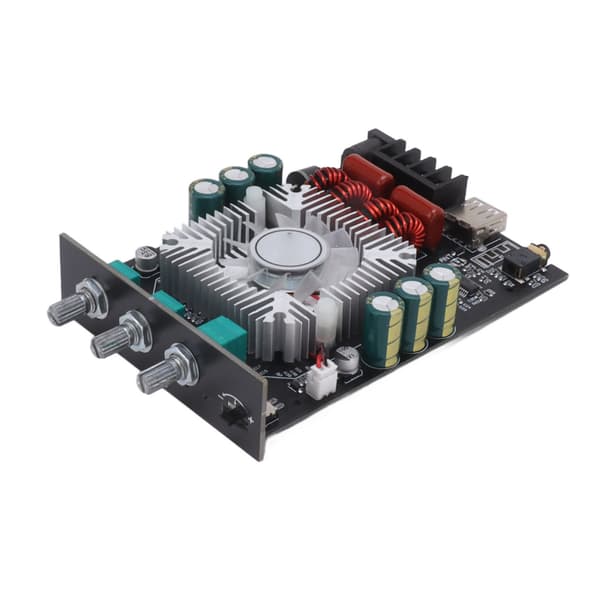

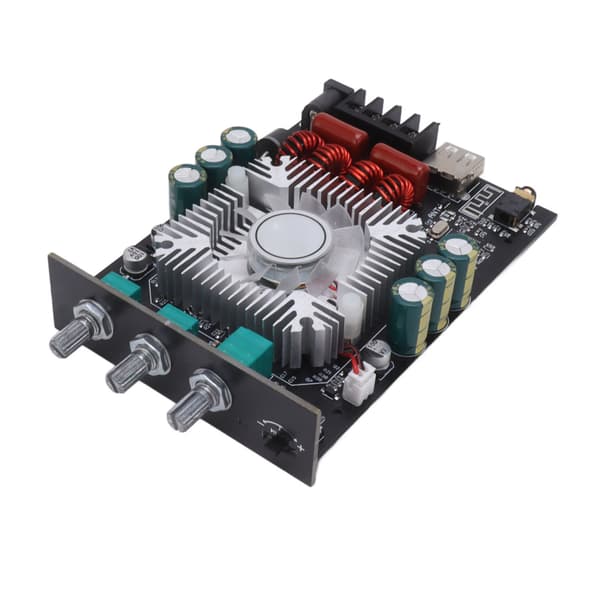

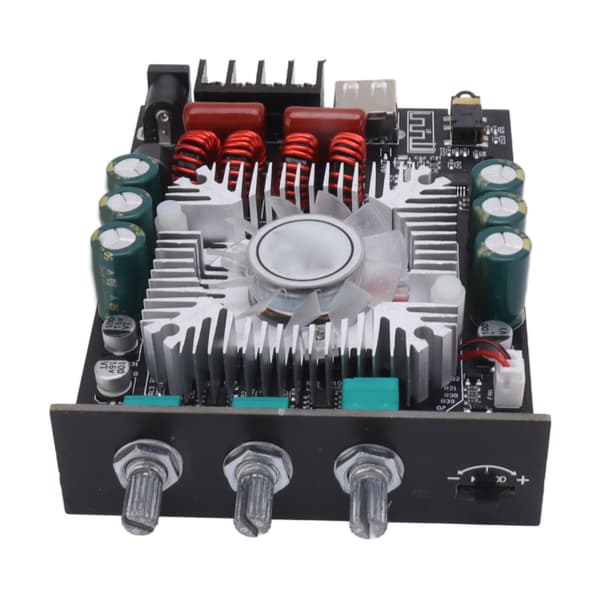

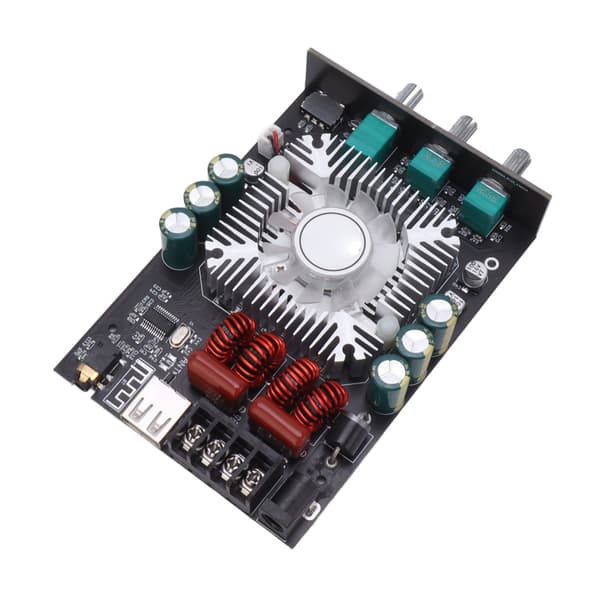

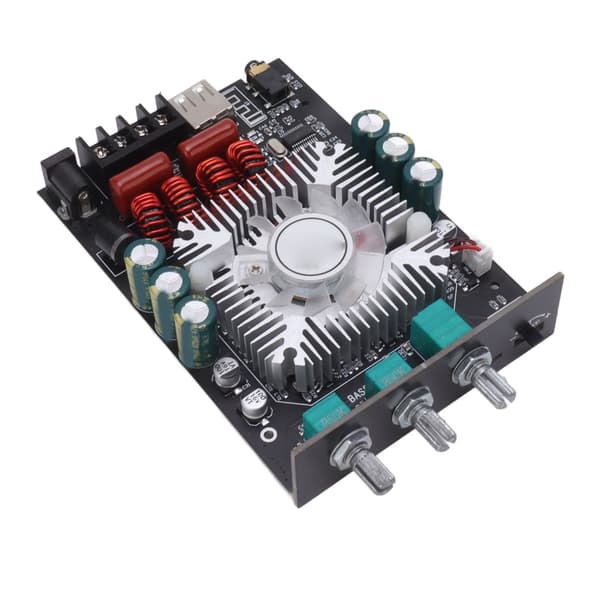

Item Type: Bluetooth Digital Power Amplifier Module
Product Material PCB
Bluetooth Version: 5.0 (free, approx. 10m / 32.8ft)
Number of Channels: 2.0 channels (left channel, right channel)
Power Amplifier Chip: TDA7498E
Output Power: Left and right channel 160W x two
Adapted Speaker: 30 to 200W, 4 to 8 Ω
Protection Mechanism: Anti reverse connection, undervoltage, overheating, overcurrent, short circuit protection
Input Method: For AUX, Bluetooth, USB (the knob to switch mode and song)
Adapted Power Supply: DC15-36V (undervoltage protection below 9V, can also support 12V power supply)

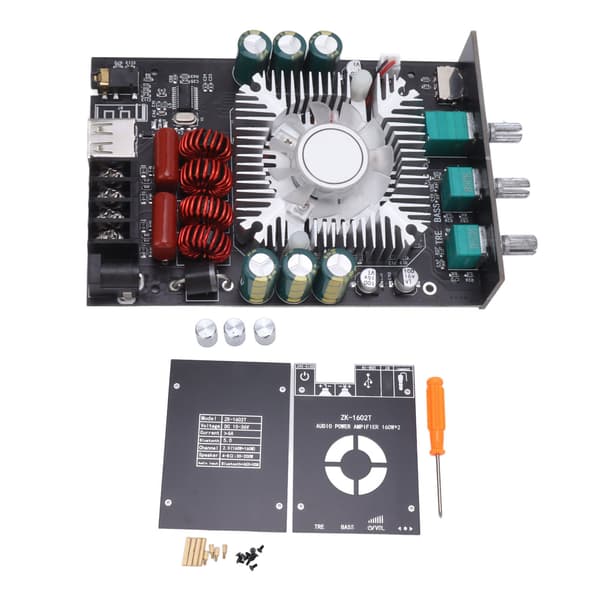

1 x Power Amplifier Board

1 x Upper Cover Plate

1 x Lower Cover Plate

3 x Knob Cap

4 x M2x18 Copper Pillar

8 x M2x4mm Screw

4 x M2x5 Copper Pillar

1 x Screwdriver

Customers are our top priority. If you find any problems with your product after receiving it, such as damage or incorrect quantity, please contact us immediately. We strive to provide you with the best after-sales service.
