1. Multiple Working Modes: There are multiple working modes, different wiring methods are available. Optional functions include single wire (valve stops while fan does not stop) or double wire (valve stops and fan stops) 2. External Embedded Installation: Adopt external embedded installation, standard 86 type installation cassette, easy to install 3. Long Service Life: The thermostat contact is more than 100,000 times at 220V and full load, and the manual switch is more than 60,000 times 4. Stable Performance: Come with beautiful appearance, comfortable hand feeling and stable performance. The temperature sensing component adopts a precise metal bellows 5. Various Rocker Switches: The rocker switches are power switches (ON or OFF); operating mode switches (HEAT or COOL); FAN wind speed switches (low speed 1, medium speed 2, high speed 3)

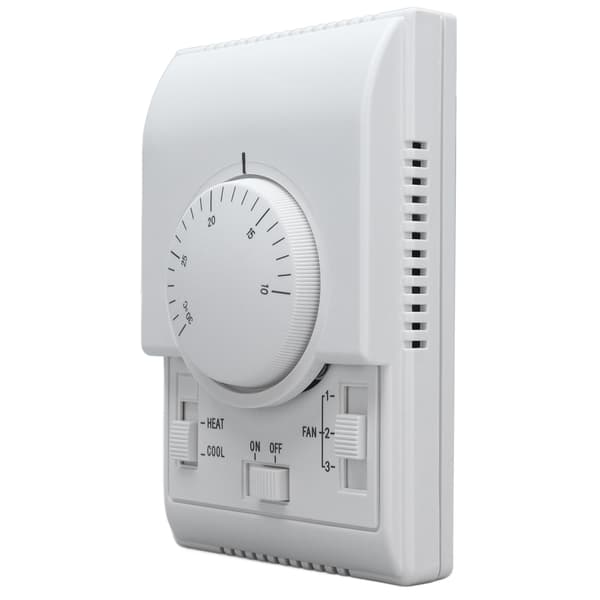

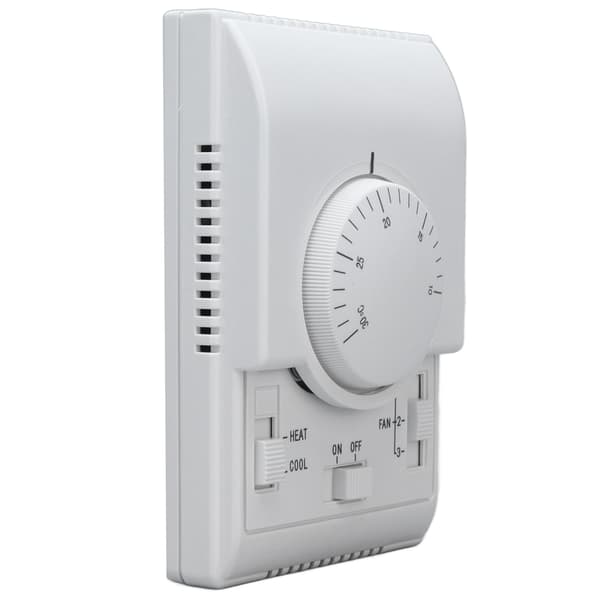

Item Type: Central Air Conditioning Thermostat
Material: ABS
Sensor: AC801 A: Inflatable diaphragm, AC801 C: Thermistor
Voltage: 110-220V/AC, 50/60Hz
Rated Current: 1A
Constant Temperature Range: 10~30℃
Temperature Deviation: ≤1℃ at 25℃
Material and Color: Base, cover and pull plate: White ABS plastic, pull switch: Hoary
Relative Humidity: <92% (no condensation)
Application: Used in commercial and civil buildings. Can control the central air conditioning terminal coil motor and water valve for heating and cooling. The measured temperature is compared with the set temperature by the logic circuit. When the relative temperature difference is greater than 1℃, the fan or electric valve is automatically started, and when the ambient temperature reaches the set temperature, the fan or electric valve is automatically closed.

1 x Thermostat

2 x Screw

1 x User Manual
