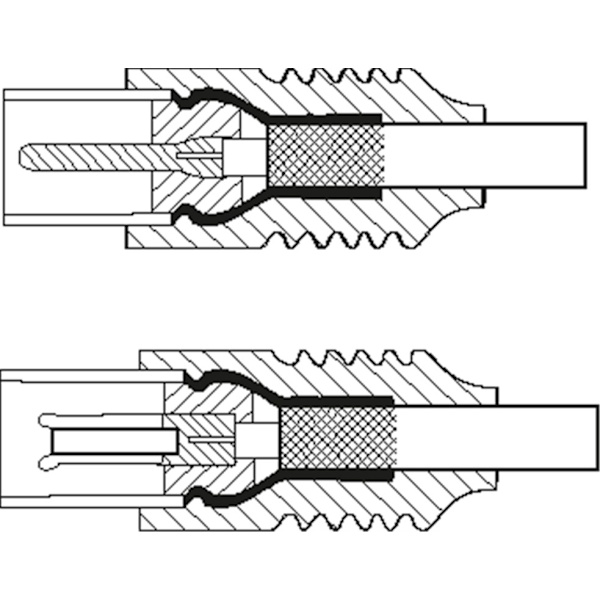

Clicktronic attaches great importance to durability and stability. Our quality promise: 10-year warranty on our antenna cables. The self-developed construction of our connection cables makes them extremely robust. The three-part coupling construction of PVC and ABS components compensates for jerky pulls on the cable, making it ideally protected against cable breakage. High-quality, gold-plated contacts and pure copper conductors guarantee fast data transmission. The durable PVC sheath protects the coaxial cable and ensures a long-lasting and stable connection.

The TV antenna cable transmits HDTV and DVB signals loss-free from the cable network connection or a satellite system to the TV, SAT receiver or radio.

Interference-free TV reception thanks to 2-fold signal shielding of > 95 dB

The TV cable is particularly suitable for advanced requirements with high-resolution TV formats.

24 carat gold-plated coaxial connectors for minimal transmission resistance and smooth antenna or cable TV without delays

Flexible, robust PVC cable sheath makes it easy to bend and lay without damaging the cable.

To avoid transmission losses, the coaxial cable has a characteristic impedance of 75 ohms.

The SAT connection cable is characterized by durability and brilliant signal quality thanks to inner conductors made of 99.9% oxygen-free copper.

AWG : 22
Cable sheath Diameter : 6 mm
Diameter ferrite core : 14 mm
Number of shields : 2 x
Markings : WEEE, CE
Operating temperature up to : 80 °C
Operating temperature from : -10 °C
Warranty : 10 years
CAS no. : 7439-92-1
chemical substance : Pb
Impedance : 75 Ω
Shielding effectiveness : 95 dB
Cable type : Round cable

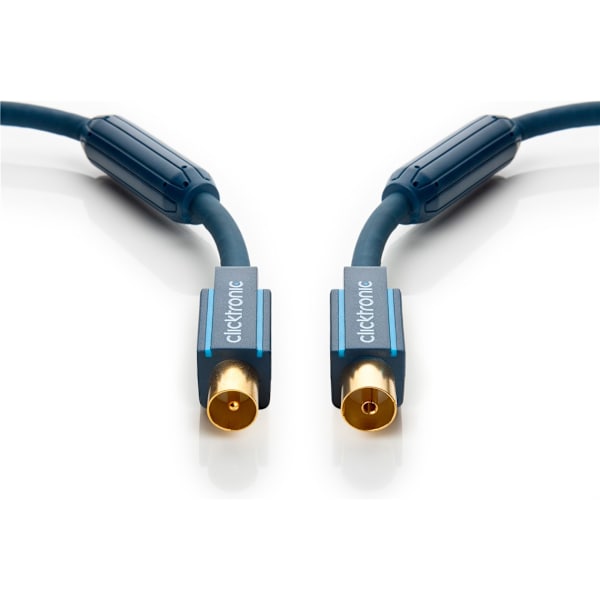

Ferrite core : yes
Inner conductor material : CU (copper)
Type 1, shielding : Shield braid (copper) 96 pcs.
Type 2, shielding : Foil (alu)
Connection, housing material : ABS, PVC
Connection, contact material : Gold (24 kt)
Connection, shielding : yes
Connection, type : IEC / coaxial plug
Connection 2, type : IEC / coaxial socket
Consumption unit : 1 pc. in carton
Cable length : 2 m
SCIP no. : 8809ca9f-71c0-46d3-a084-126aa09cc915
