1. Strong thrust, more powerful than other ordinary brushless motors, high working efficiency. 2. Stable and smooth operation and low noise. Made of high-quality metal, solid and sturdy, durable for use. 3. Easy to replace, wonderful replacement for the old or damaged one, easy to install, brings you convenience. 4. Good performance, multiple KV values of the motor are optional, you can choose according to your needs. 5. Suitable for RC fixed-wing aircraft. Equipped with motor base, adapter and screws for easy installation.

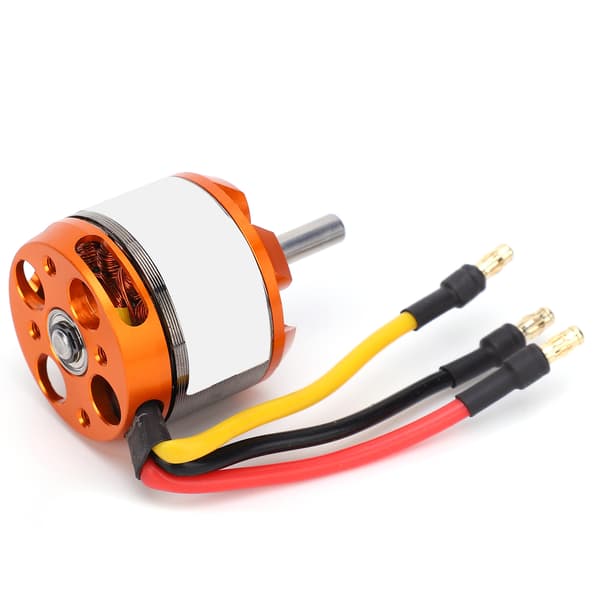

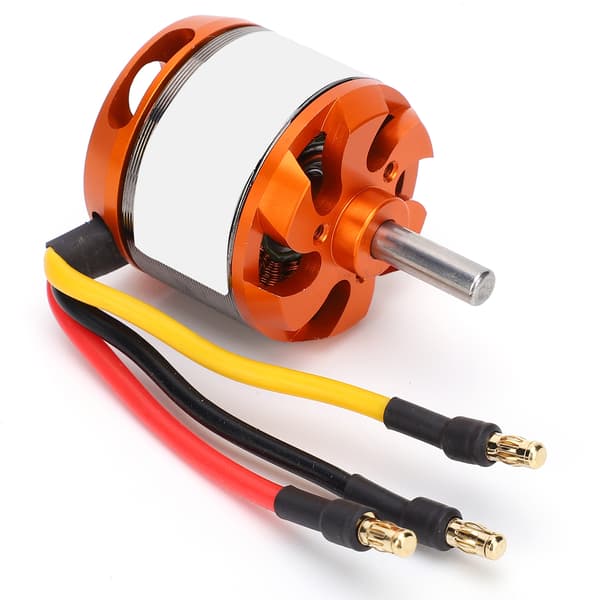

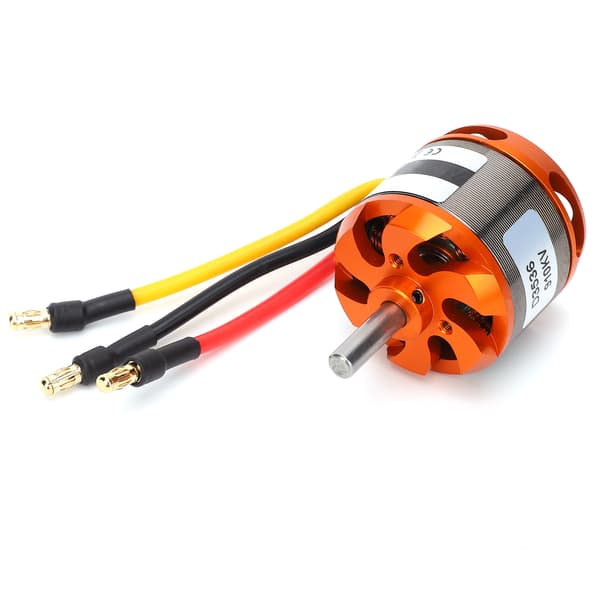

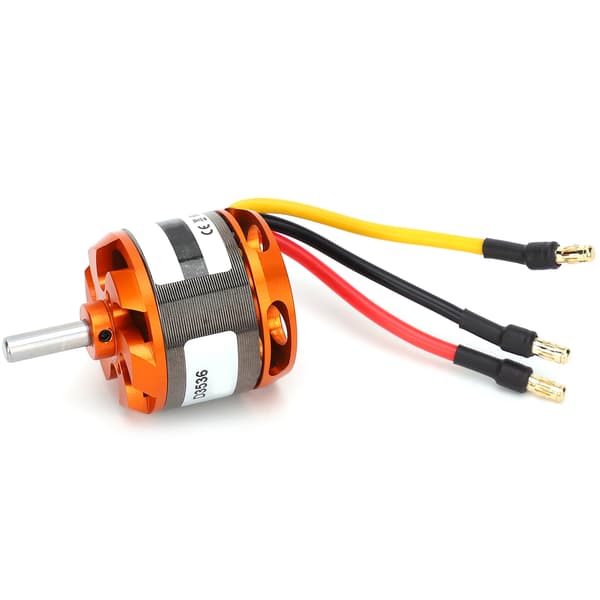

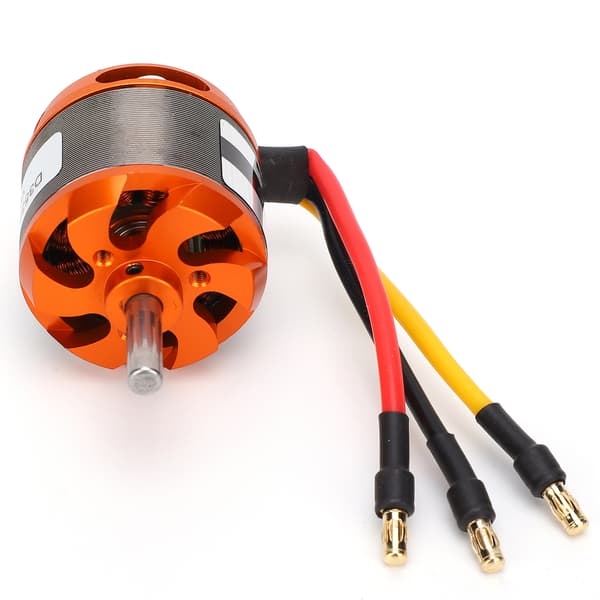

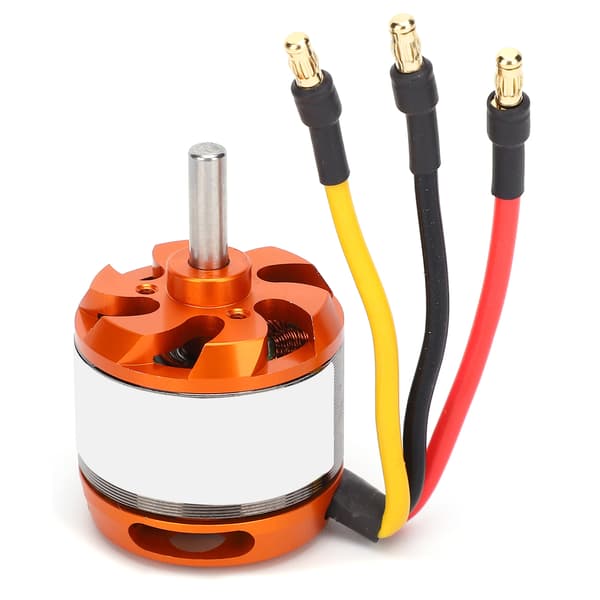

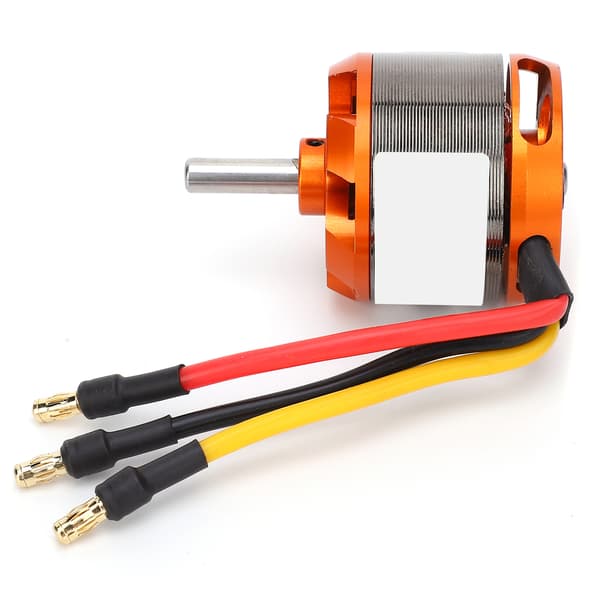

Item Type: RC Aircraft Motor
Material: Metal
Color: Orange + Silver
Motor Size: Approx. 35 x 36 mm / 1.4 x 1.4 inches
Shaft Diameter: Approx. 5 mm / 0.2 inches
Operating Temperature Range: -0 ℃ ~+80 ℃
Motor Type: Outer rotor brushless motor, three-phase motor
Quantity: 1 pc
Application: RC fixed-wing aircraft
How to use: Use ESC to adjust the PWM signal for control, PWM adjustment range is 900-2100US
Optional KV value:
D3536-5-1450KV Motor:
Maximum thrust: 1380G
Voltage: DC7.4 ~ 15.0V
Suggested ESC: 30A ~ 70A
Maximum power: 655W
Suggested propeller: 9 inches
D3536-6-1250KV motor:
Maximum thrust: 1270g
Voltage: DC7.4 ~ 15.0V
Suggested ESC: 30A ~ 70A
Maximum power: 496W
Suggested propeller: 10 inches
D3536-8-1000KV motor:
Maximum thrust: 1160g
Voltage: DC7.4 ~ 15.0V
Suggested ESC: 30A ~ 70A
Maximum power: 432W
Suggested propeller: 11 inches
D3536-9-910kV motor specifications
Maximum thrust: 1050g
Voltage: DC7.4 ~ 15.0V
Suggested ESC: 30A ~ 70A
Maximum power: 370W
Suggested propeller: 10 inches

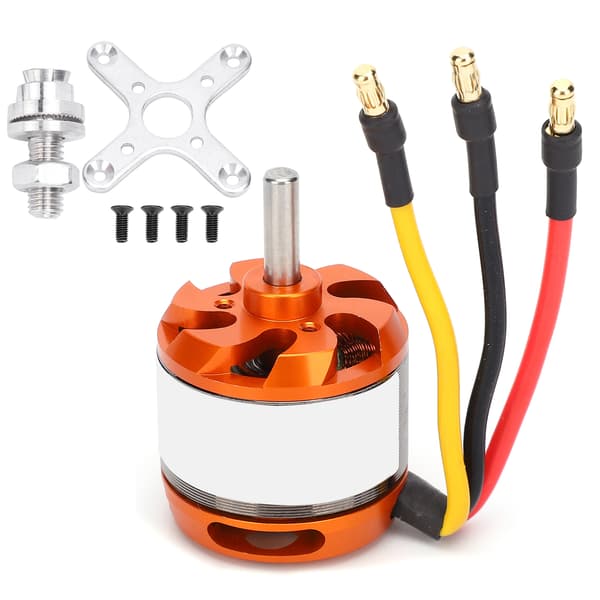

1 x motor
1 x motor base
1 x Adapter
4 x screw
