1. Conformal coating is used to protect circuit boards and related equipment from environmental erosion. 2. DC24V power supply to provide isolated power distribution current for on-site transmitters. 3. The internal magnetic isolation technology is adopted, and the input, output and power supply are isolated from each other, which has the characteristics of high accuracy. 4. Has good low temperature resistance, superior insulation, moisture, leakage, shock, corrosion, anti-aging and other properties. 5. 35mm standard guide rail installation, the installation does not take up space and has strong versatility.

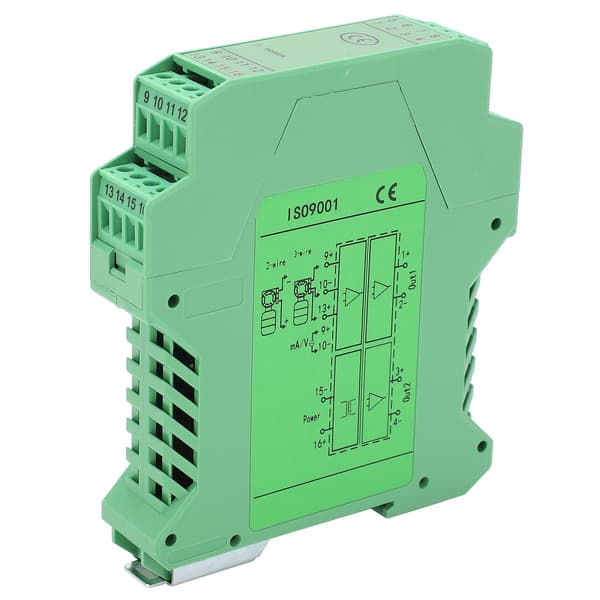

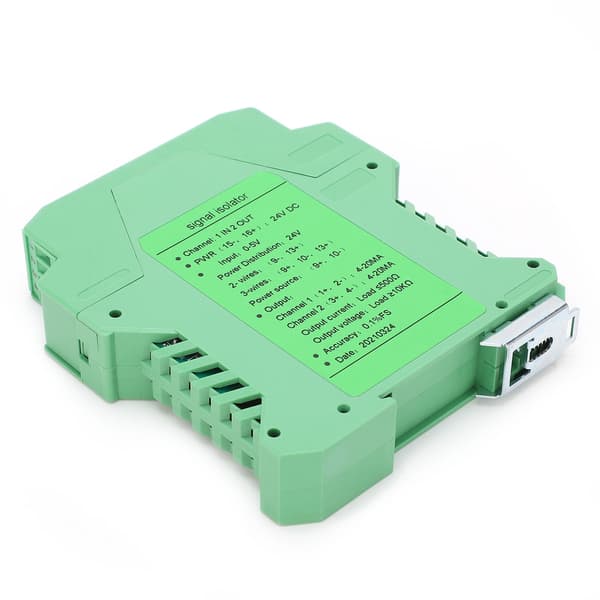

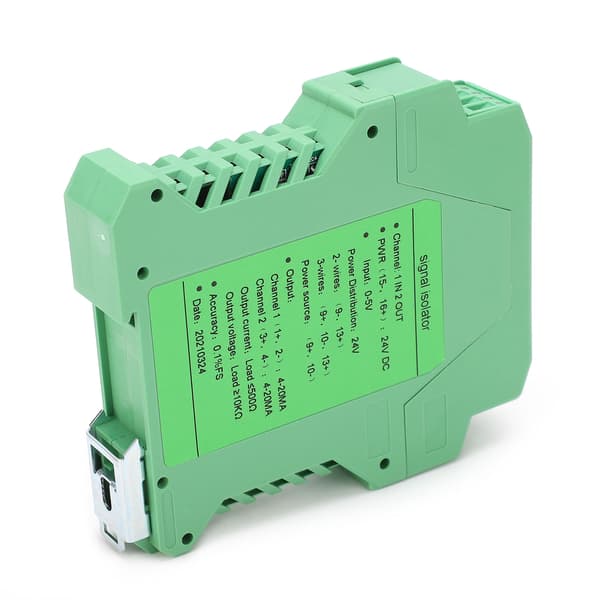

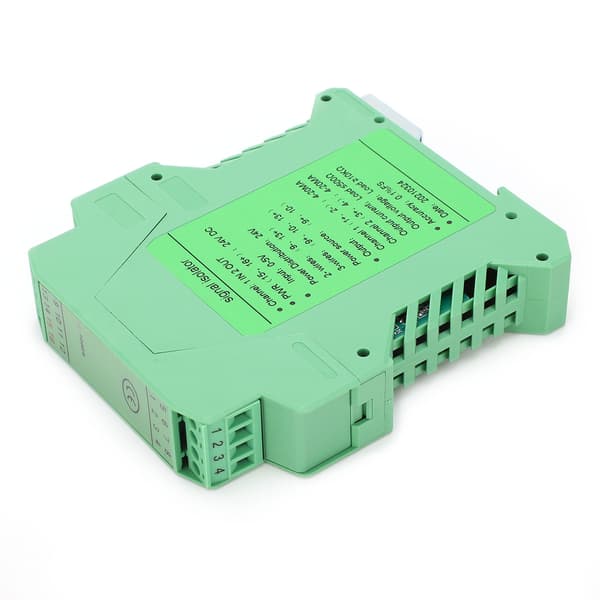

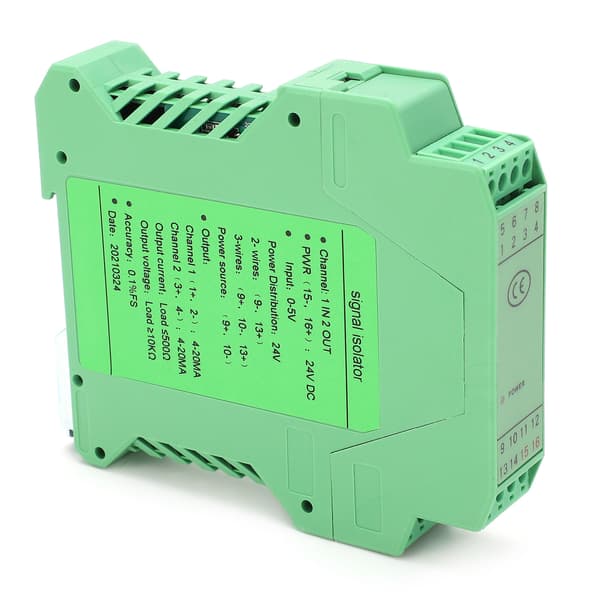

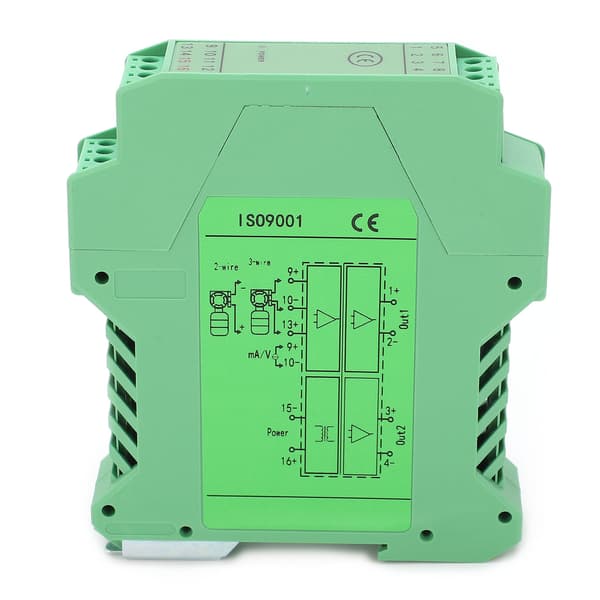

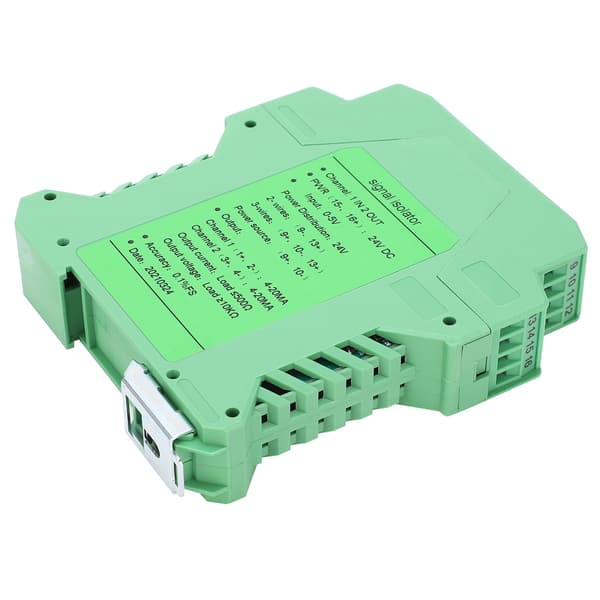

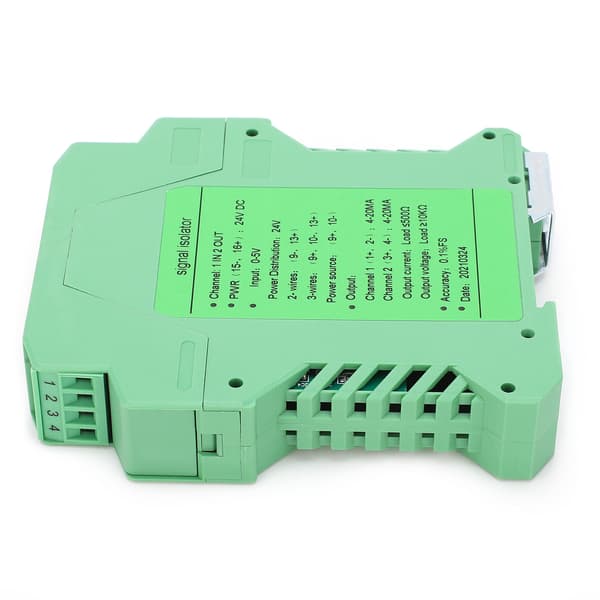

Item Type: DC Signal Isolator
Material: ABS
Model: GLG
Channel: 1 in 2 out
PWR (15-, 16+): 24V DC
Input: 0-5V
Distribution Voltage: DC 24V
2-wire: (9-, 13+)
3-wire: (9+, 10-, 13+)
Power Supply: (9+, 10-)
Output:
Channel 1 (1+, 2-): 4-20mA
Channel 2 (3+, 4-): 4-20mA
Output Current: Load≤500Ω
Output Voltage: Load≥10KΩ
Accuracy: 0.1% FS
Working Temperature Range: -20-+55 ℃
Electromagnetic Compatibility: Comply with GB/T 18268 (1EC61326-1)
Applicable Field Equipment: 2-wire, 3-wire transmitter, power source
Product Description:
DC24V power supply, provides isolated power distribution for the on-site transmitter, and at the same time isolates and transmits the current signal generated by the transmitter from the site to the control room, PLC, DCS and other input terminal interface power sources, 2-wire system, 3-wire system transmitters General purpose; internal use of high-efficiency magnetic isolation technology, isolation between input, output and power supply, with high accuracy, high linearity, low temperature drift and other characteristics.

1 x DC Signal Isolator
