【Futuristic Urban Style】

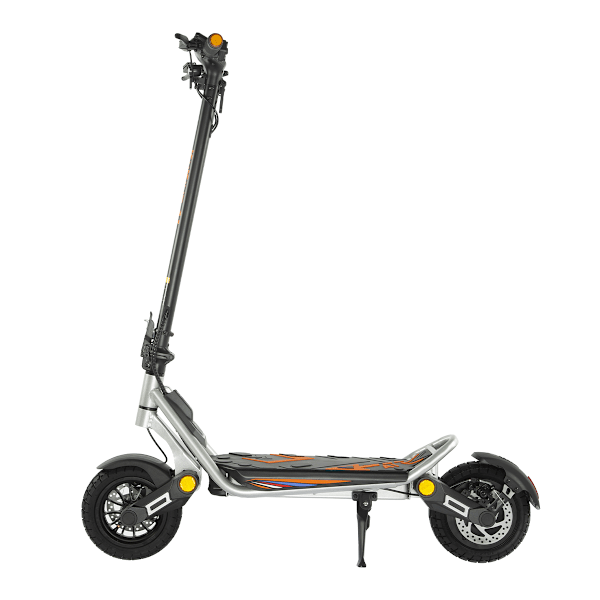

The KUKIRIN A1 features a sleek silver iron frame with bold, flowing lines and a futuristic shape. The smooth folding design, wing-like rear, and glowing blue logo light create a modern, eye-catching look that stands out both day and night.



【Strong Build with Quality Finish】

Made from one-piece high-strength iron, the A1 offers solid durability and impact resistance. The silver finish resists rust and scratches, while the refined details show off its high-quality craftsmanship and polished design.



【Powerful and Comfortable Ride】

An 800W motor gives fast acceleration and handles slopes up to 20° with ease. The 10-inch vacuum tires and front-rear shocks absorption system make it smooth to ride over asphalt, gravel, or uneven paths. The 48V 13Ah battery ensures reliable range for both short commutes and weekend trips.



【Smart and Safe Features】

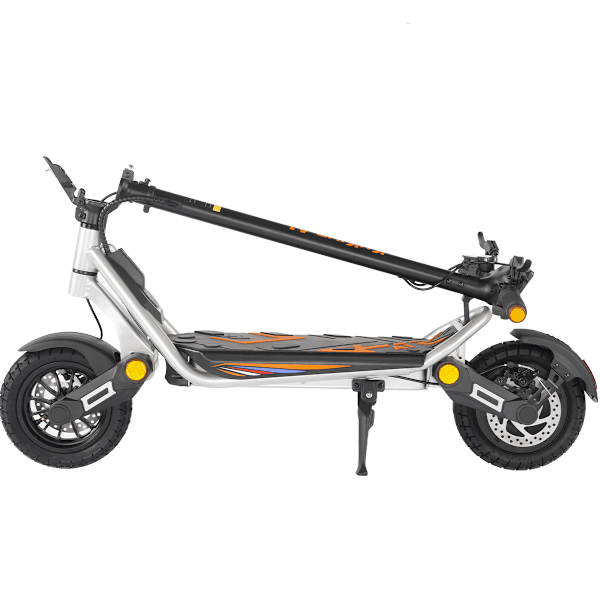

Reach speeds up to 45km/h and enjoy a safer ride with LED headlights, taillights, and turn signals. The LCD screen clearly displays your speed, battery, and mileage. With multiple speed modes and a folding design, it's perfect for flexible, everyday use.



【Made for the City Rider】

Designed for daily commutes and urban exploration, the A1 fits riders up to 120kg and is great for young professionals or casual riders. It combines style, comfort, and convenience for a fun, reliable city ride.



【Specifications】

Material Frame material: Steel Frame
Motor type: Brushless DC Hub Motor
Voltage: 48V
Acclerate mode: Sine Wave
Rated power: 800W
Instantaneous maximum power: 1000W
Rated speed: 1100rpm
Max output torque: 25N.m
Model: 18650 Li-battery
Voltage: 48V
Single cell capacity: 2600mAh
Battery pack capacity: 13Ah
Standard power consumption KW.H: 0.624kW·h
Battery protect system: BMS
Charging time: 7-8h
Max speed: 45km/h
1st、2nd、3rd（speed limit）:15 km/h - 20km/h - 25km/h
1st、2nd、3rd（65kg Load）:20km/h - 30km/h - 45km/h
Mileage Middle speed mileage（65kg Load）:≤45km
Performance Climbing ability: ≤20° slope
Brake system: Front and rear disc brakes + power-off brake
Brake distance: 6-8m
Waterproof level: IPX4
Shocks absorber: Front and Rear Glue filling shocks absorption
Headlight type: LED
Headlight power: 1.7W
Headlight illumination angle: adjustable
Headlight irradiation area: 6㎡
Turn light: Yes
Taillight: Yes（Steady light, high light when braking）
Tire Size: 10in
Tire Type: Vacuum tire
Optimum tire pressure: 330-360kPa (48-53psi）
Disc brake Outer diameter:140mm
Thread hole diameter:M6
Display Type:LED
Display Size: 80*50mm
Handlebar size: 580mm
Pedal to Handlebar size: 510*220mm
Chassis height: 990mm
Pedal size: 160mm
Max Load: 120kg
Packing size: 1170*250*620mm
Product G.W: 29.5±0.5kg
Product N.W: 25.5±0.5kg
Expend size: 1154*580*1298mm
Fold size: 1154*580*535mm



【Packing list】

Charger*1
Instruction manual*1
Allen wrench*2
Pole screws*4
Desiccant*2
Key*2
