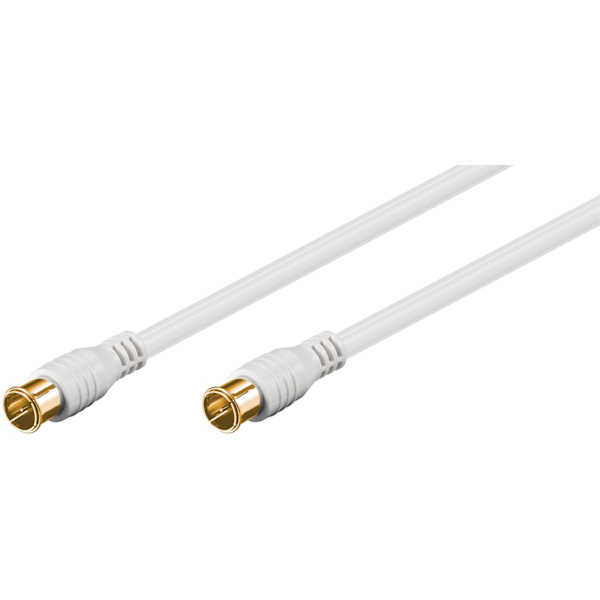

Double-shielded satellite cable for interference-free transmission

Molded plug on both sides to protect against dust, dirt and mechanical stress

Conductivity is maintained for a particularly long time, as gold-plated contacts do not corrode.

For the transmission of digital SD/HDTV signals, e.g. from SAT systems to TVs or receivers

Quick connection of the cable using quick plugs, which only need to be plugged in instead of screwed.

Cable sheath Diameter : 5.3 mm
Inner conductor, cable diameter : 0.5 mm
Number of shields : 2 x
Markings : WEEE, CE
CAS no. : 7439-92-1
chemical substance : Pb
SCIP no. : 46f5c3b6-7103-4882-a95b-c0de010408cb
Impedance : 75 Ω
Shielding effectiveness : 80 dB
Cable type : Coaxial cables
Inner conductor material : CCS
Type 1, shielding : Foil (alu)
Type 2, shielding : Braided shield (alu) 112pcs.
Connection, contact material : Gold-plated
Connection, shielding : yes

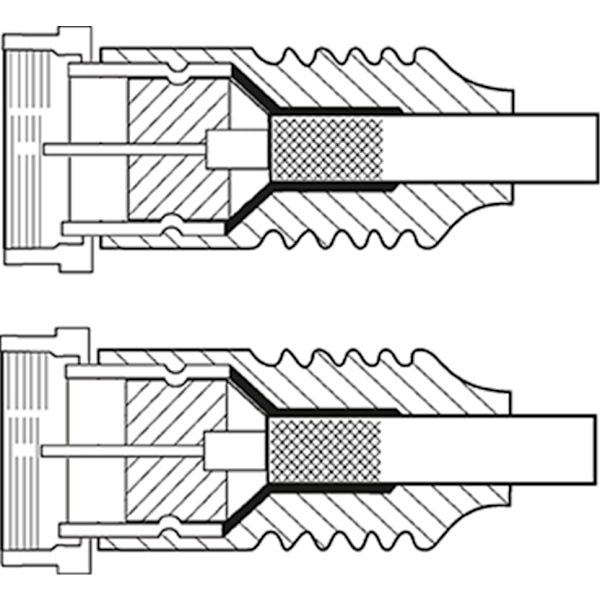

Connection, type : F-plug (Quickfix)
Connection 2, type : F-plug (Quickfix)
Color : white
Consumption unit : 1 pc. in plastic bag
Jacket material : PVC
Cable length : 1.5 m

• Double-shielded satellite cable for interference-free transmission
• Molded plug on both sides to protect against dust, dirt and mechanical stress
• Conductivity is maintained for a particularly long time, as gold-plated contacts do not corrode.
• For the transmission of digital SD/HDTV signals, e.g. from SAT systems to TVs or receivers
• Quick connection of the cable using quick plugs, which only need to be plugged in instead of screwed.
