The patch cable is suitable for private and industrial applications, including Fiber to the Home (FTTH), and is compatible with many providers' FTTH offerings. The bend-optimized fiber optic cable allows for space-saving installation without increasing attenuation and risking interference.

Singlemode fiber optic cable designed for connection types such as FTTH, FTTB, FTTx, and use in homes, offices, data centers, etc.

As a patch cable, it forms the connection between the house's transmission point and the indoor fiber optic modem (ONT)

Fiber optic cable for up to 100 Gbit/s, which is bend-optimized and space-saving with a minimum bending radius of 30 mm (static)

LSZH compliant: the cable jacket is halogen-free and flame-retardant according to IEC 60754 2, IEC 60332 1, and IEC 61034

Strain relief reinforced with aramid yarn provides additional stability

Equipped with dust protection caps, connector: simplex, fiber type: OS2, SM singlemode 9/125µm according to ITU-T G.657.A2

Individual test protocol with measurement of return loss and insertion loss

Bending radius > : 30 mm
Specification : Singlemode (OS2) Yellow
Cable Jacket Diameter : 3 mm
Optical Fiber Core Diameter : 9 µ
Optical Fiber Cladding Diameter : 125 µ
Wavelength : 1310 nm
Connector : Ceramic Ferrule
Operating Temperature up to : 85 °C
Operating Temperature from : -40 °C
CAS no. : 7439-92-1
Chemical substance : Pb
Bend protection : yes
Cable type : Simplex cable
Cable fiber type : Glass Fibre G.657.A2
LSZH compliant : yes

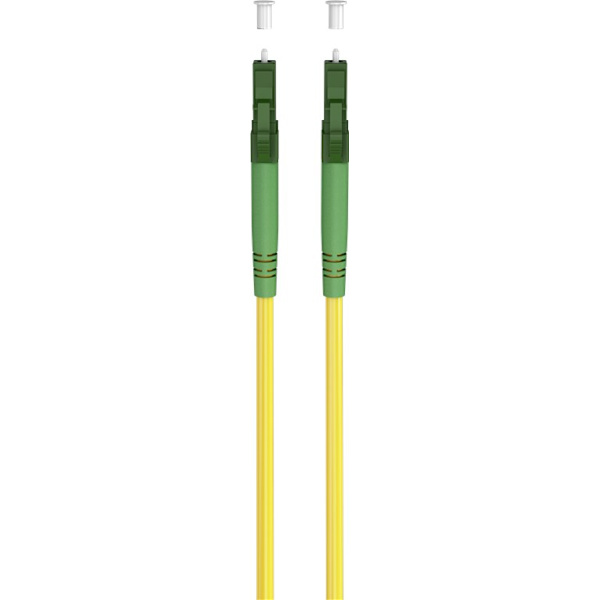

Connection, type : plug LC-APC (8°)
Connection 2, type : plug LC-APC (8°)
Color : yellow
Consumption unit : 1 pc. in plastic bag
Cable length : 1 m
SCIP no. : e7f16f77-85e0-4d87-9ba4-3158784244fa
Cable jacket material : LSZH
Color version : yellow
