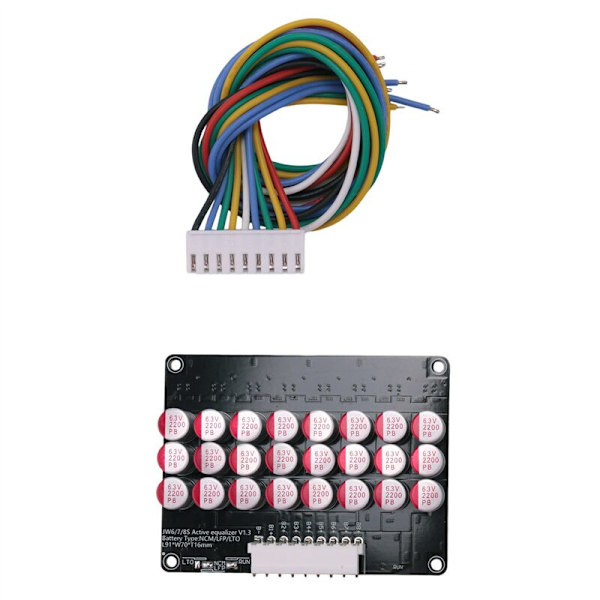

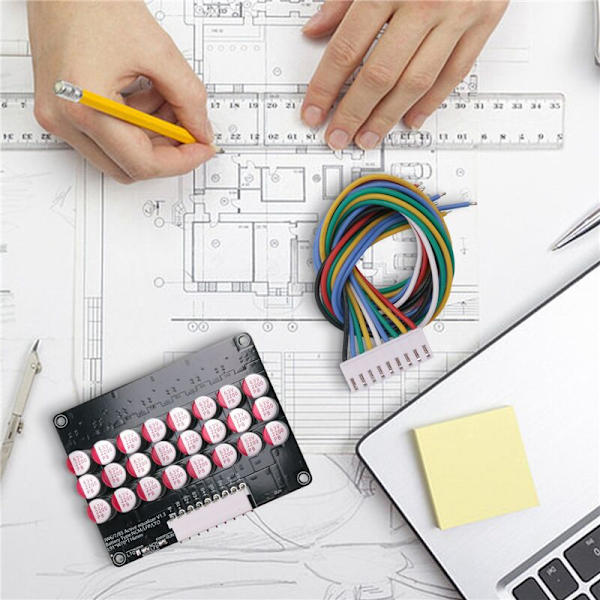

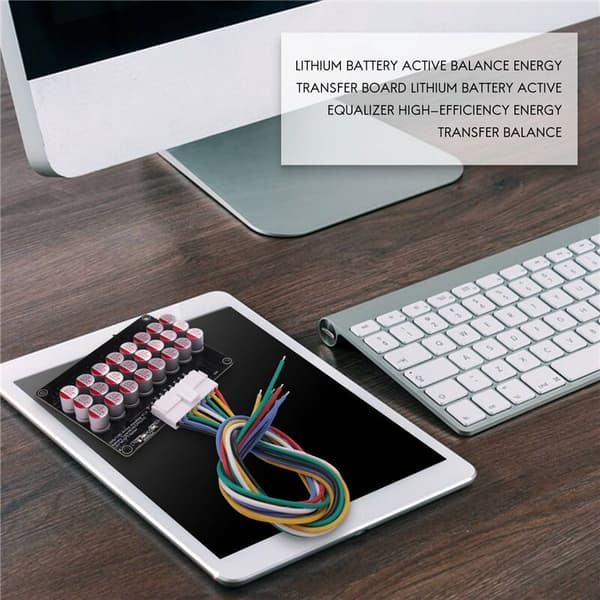

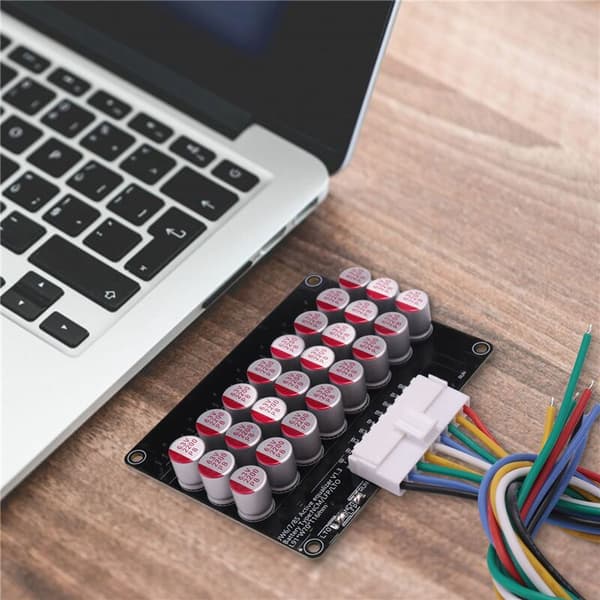

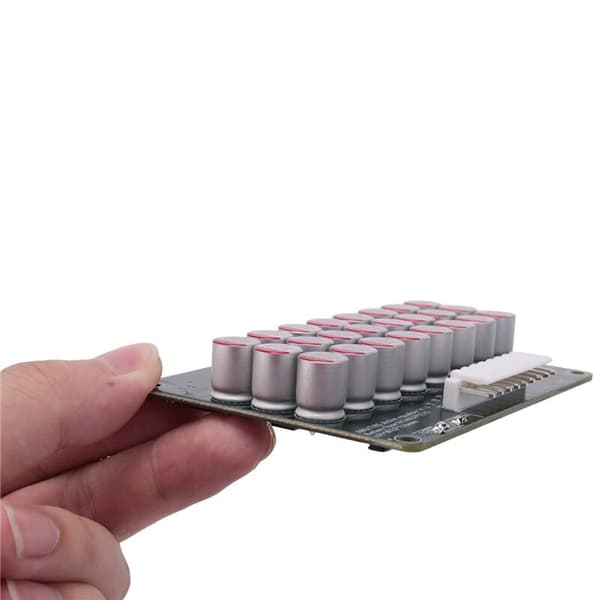

1. Lithium battery active balance energy transfer board Lithium battery active equalizer energy transfer balance with high efficiency
2. Capacitive energy transfer equalization board (5mv high precision, full group equalization, non-adjacent equalization); 3. Working voltage 1.8V-4.5V, suitable for ternary lithium, lithium iron phosphate, lithium titanate.
4. operation, capacitive adjustment transfers the charge carrier, the equalization board is connected to the battery to start the equalization work, the brand new ultra-low internal resistance MOS, 2OZ copper thickness PCB, d 'equalization 0-5.5A;
The larger the battery, the larger the equalization, reserved for the dormant switch wiring position, the shutdown sleep mode is less than 0.1mA, and the balancing voltage precision is 5mV!
5. The quiescent current is about 12mA, and it is recommended that the battery capacity is between 60 and 300AH.

6. With undervoltage sleep protection, the voltage automatically stops and enters sleep mode when the voltage is lower than 3.0V and the standby power consumption is lower than 0.1mA.
Material: PCB
Color: Black

Package Contents:
1 x Battery Equalizer Energy Transfer

Only the above package content, other products are not included. Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
