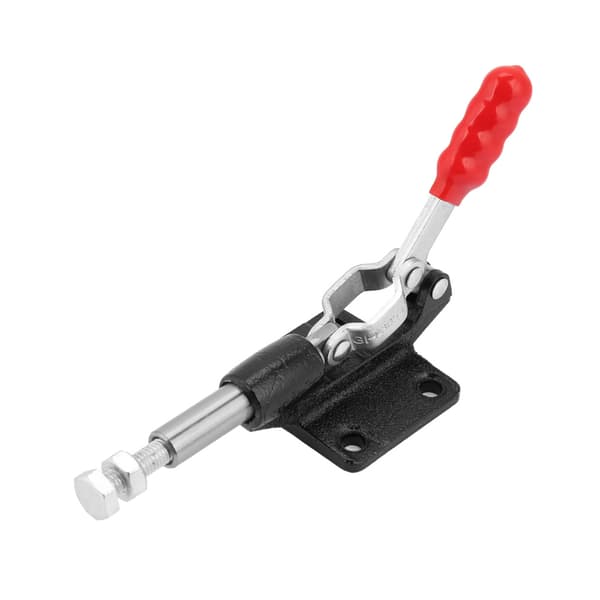

100% brand new and high quality quick clamp for secure holding of workpieces. The push/pull function provides a firm grip on your materials, with easy adjustability for a range of applications. Suitable for quick clamping of sheet metal or circuit boards, this clamp ensures easy, safe, and convenient operation. Widely used in welding, riveting, and other processing of fixture products.

Features:

100% brand new and high quality.

Push/pull function provides a firm grip on the workpiece, easy adjustability.

Suitable for quick clamping of sheet metal or circuit boards.

Easy, safe, and convenient operation.

Widely used in welding, riveting, and other processing of fixture products.

Specification:

Material: Galvanized iron

Available models with detailed dimensions:

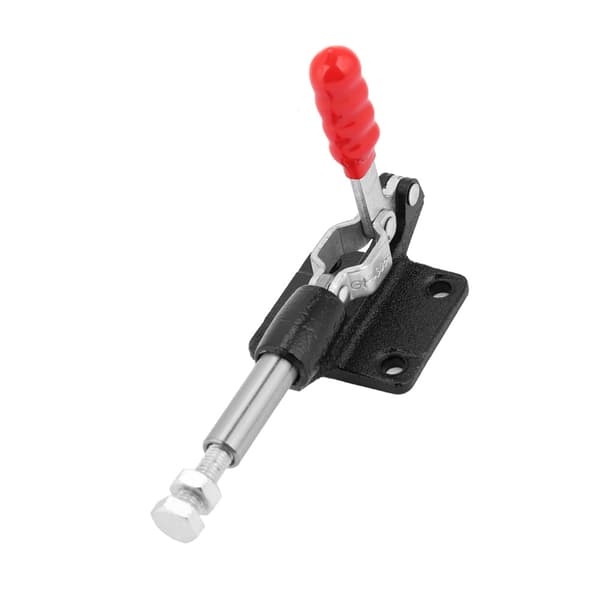

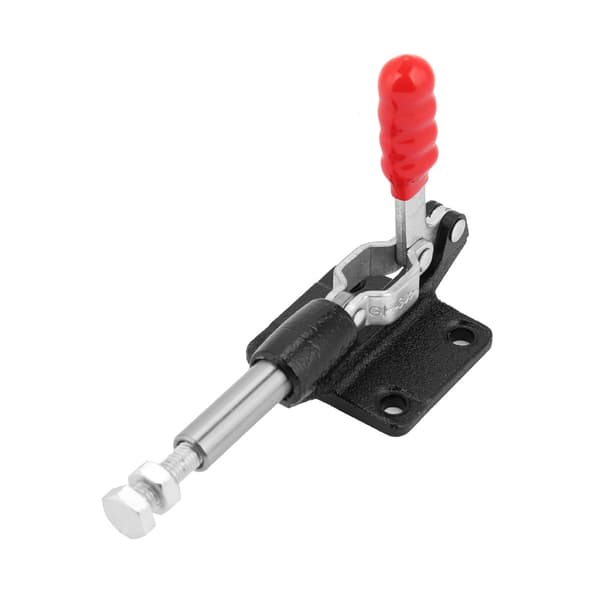

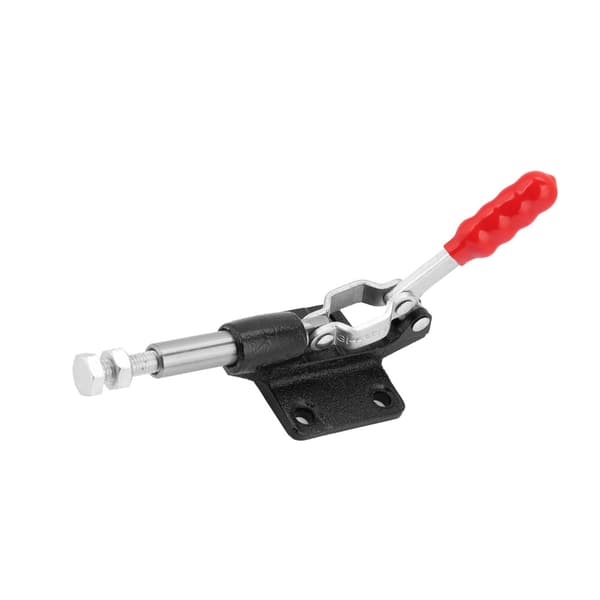

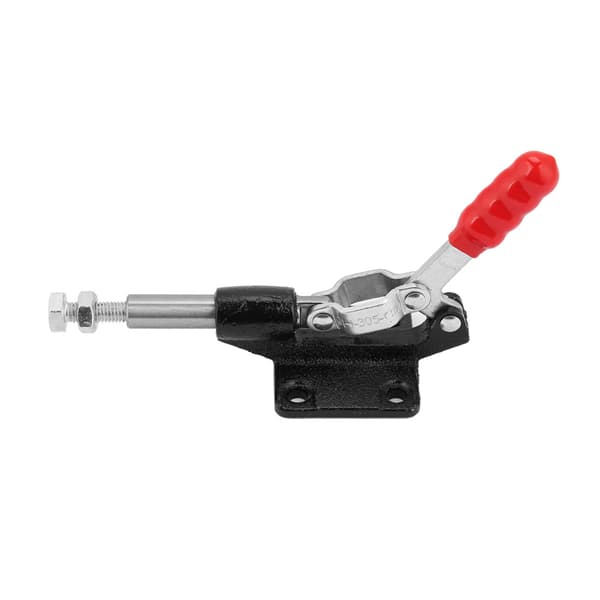

Model GH-305-CM

Pulling force: 240 kg

Plate thickness: 3 mm/0.1 inch

Push rod screw: M8

Push rod diameter: 12.7 mm/0.5 inch

Push rod stroke: 32 mm/1.3 inch

Push rod height: 25.4 mm/1 inch

Clamping hole spacing: 41 mm/1.7 inch and 35 mm/1.4 inch

Clamping hole diameter: 6.7 mm/0.3 inch

Total height: 110~125 mm/4.3~4.9 inch

Weight: 347 g/12.2 oz

Model GH-302-FM

Pulling force: 150 kg

Plate thickness: 3 mm/0.1 inch

Push rod screw: M8

Push rod diameter: 11 mm/0.4 inch

Push rod stroke: 32 mm/1.3 inch

Push rod height: 24.6 mm/5.9 inch

Clamping hole spacing: 41 mm/1.7 inch and 35 mm/1.4 inch

Clamping hole diameter: 5.5 mm/0.2 inch

Total height: 140 mm/5.5 inch

Weight: 300 g/10.6 oz

Model GH-6010

Pulling force: 370 kg

Plate thickness: 3 mm/0.1 inch

Push rod screw: M10

Push rod diameter: 16 mm/0.2 inch

Push rod stroke: 41 mm/1.6 inch

Push rod height: 44.5 mm/1.8 inch

Clamping hole spacing: 41.3 mm/1.6 inch and 41.3 mm/1.6 inch

Clamping hole diameter: 8.7 mm/0.3 inch

Total height: 170 mm/6.7 inch

Weight: 829 g/29.2 oz

Package list:

1 x Quick clamp

Note:

Please allow a small error due to manual measurement. Thank you for your understanding.
