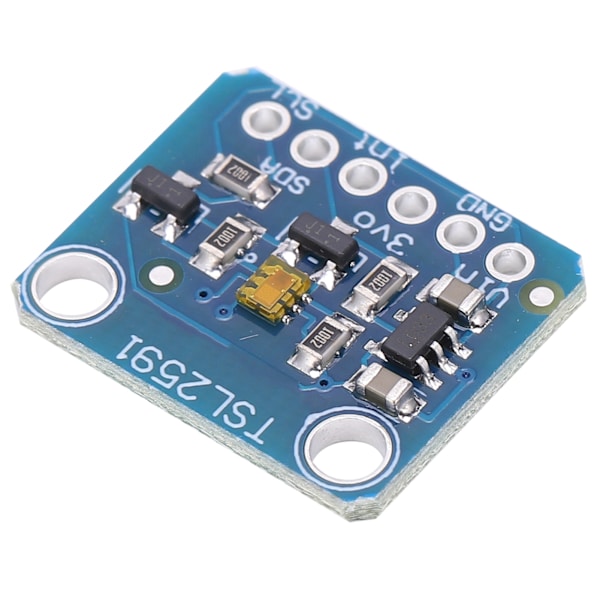

1. The TSL2591 brightness sensor is an advanced digital light sensor, which is very suitable for use in various lighting conditions. 2. Compared with cheap CdS batteries, the sensor is more accurate, can perform accurate Lx calculations, and can be configured with different gain/synchronization intervals to detect the illumination range from 188 Lx to 88,000 Lx on the fly. 3. The best thing about this sensor is that it includes infrared and full spectrum diodes. This means that the user can measure infrared, full spectrum, or human visible light separately. 4. Most sensors can only detect one or the other, which cannot accurately represent what the human eye sees (because we cannot detect the infrared light detected by most photodiodes). This sensor is very similar to the TSL2561, but has a wider range (and the interface code is different). 5. This sensor has a huge dynamic range of 600,000,000: unlike the TSL2561, you cannot change the I2C address, so keep this in mind.

Item Type: High Dynamic Digital Light Sensor
Very wide dynamic range: 1 to 600,000,000 counts
Lx range: 188 Lx sensitivity, up to 88,000 Lx input measurement.
Temperature range: -30 to 80 ℃
Voltage range: Built-in regulator is 3.3-5V
Interface: I2C
This board/chip uses 7-bit I2C address 0 x 29 (fixed).

1 x Module

1 x Pin
