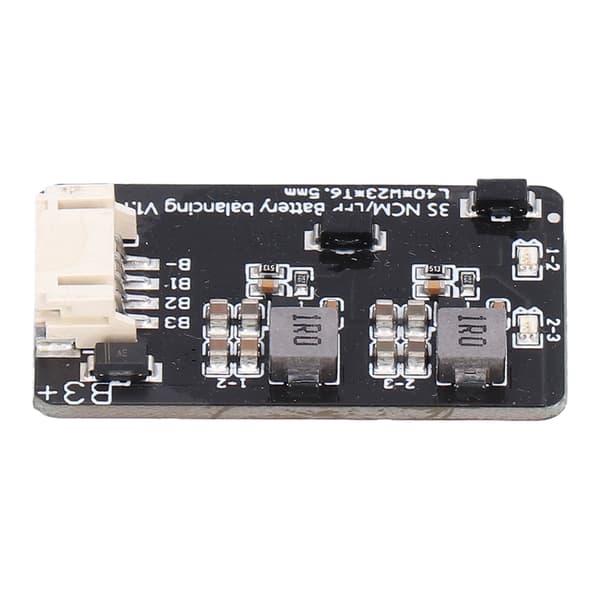

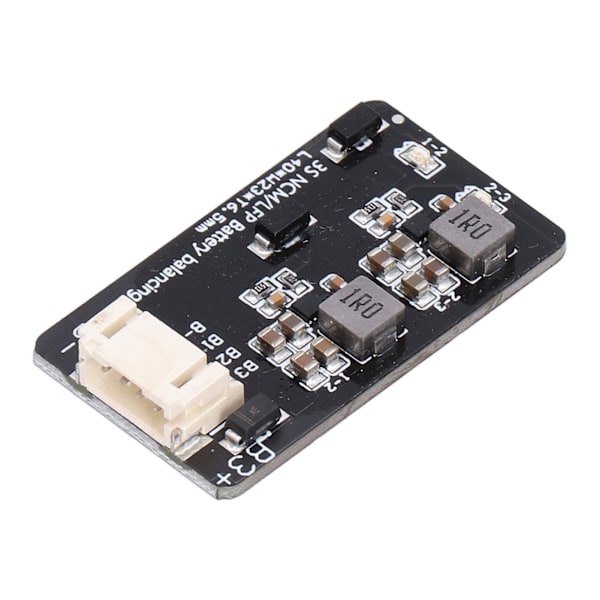

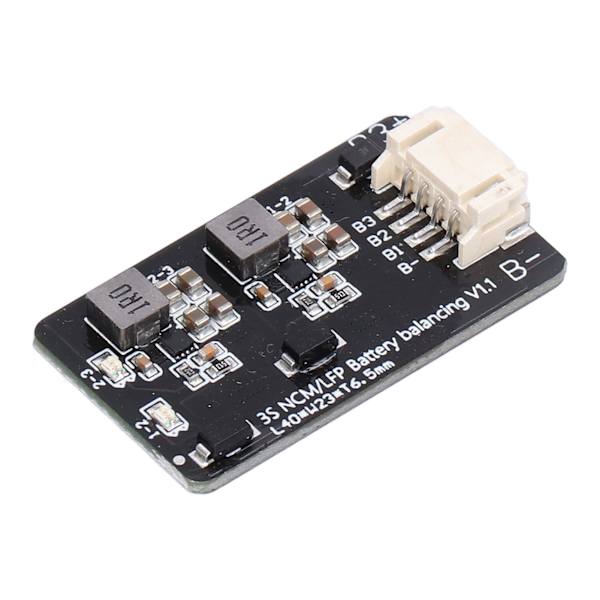

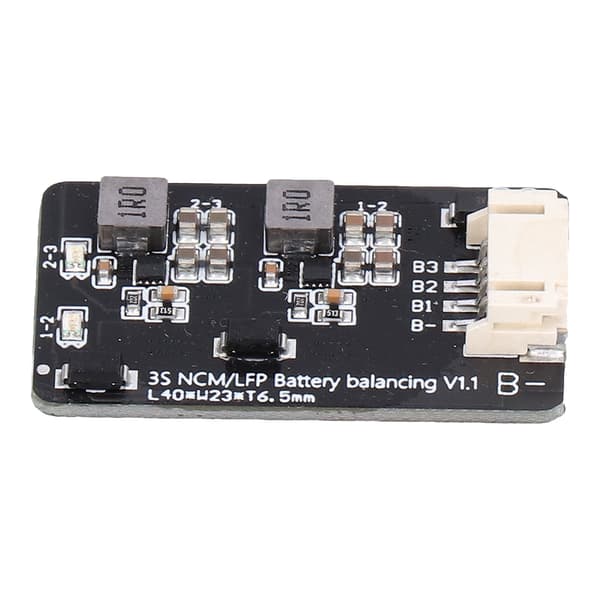

1. Inductive Transfer: The board is an inductive energy transfer balance board, 1.2A high-current energy transfer battery voltage balancer.
2. For Balancing Voltage: Can help significantly balance the battery voltage and improve the overall efficiency of the battery pack.
3. Low Internal Resistance: Built-in enhanced ultra-low internal resistance MOS, the balance current is 0-1.2A, the smaller the voltage difference, the smaller the balance current.
4. Low Power Consumption: Static power consumption does not exceed 20uA, with balance indicator, universal for ternary iron lithium battery.
5. Simple Operation: When the battery error voltage is higher than 0.1V, the balancing work starts until the error stops at 30mv.

Item Type: Active Equalizer
Material: PCB, copper
Purpose: Inductive energy transfer balance board, high-current 1.2A energy transfer battery voltage balancer, significantly balances the battery voltage, improves the overall efficiency of the battery pack
Working Voltage: 2.0V-4.5V, universal for ternary lithium iron battery, not applicable for LTO lithium titanate battery
Balance Current:
The adjacent voltage difference is over 0.1V (current is about 0.5-0.7A);
The adjacent voltage difference is over 0.2V (reaches an equilibrium current of 1.2A);
The smaller the voltage difference, the smaller the equalization current
Wire Length: Approx. 30 cm / 11.8 inches (pure copper 22AWG terminal wire)

1 x Balance Module

1 x Connection Line
