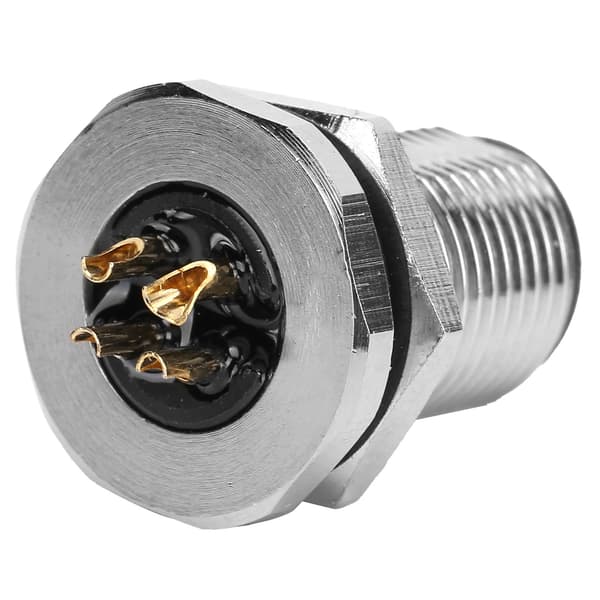

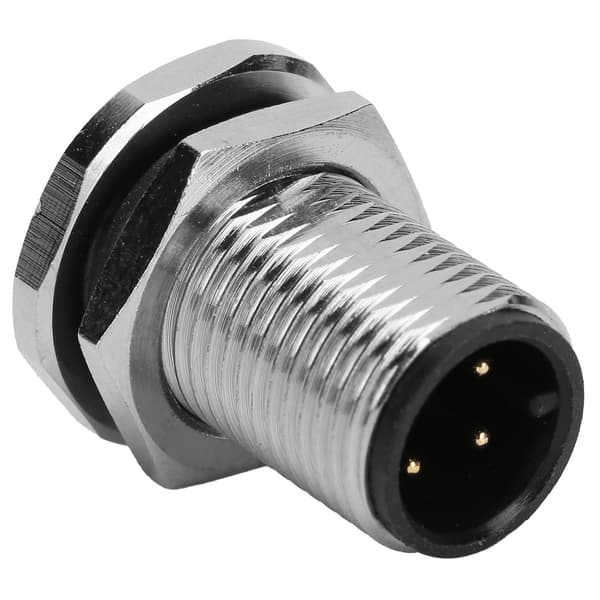

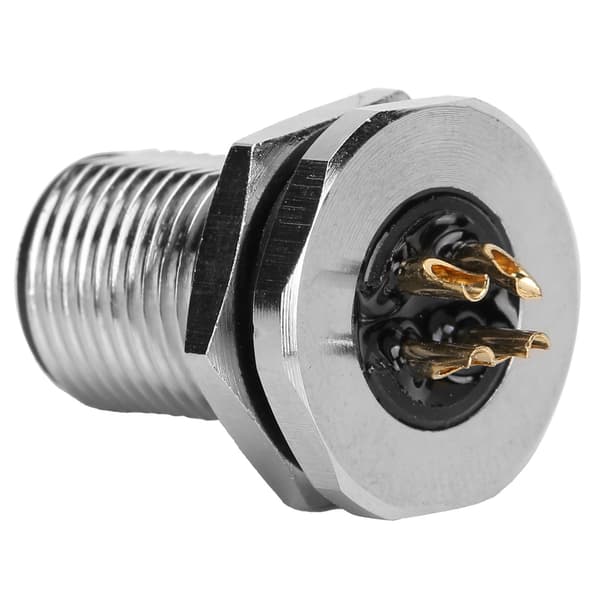

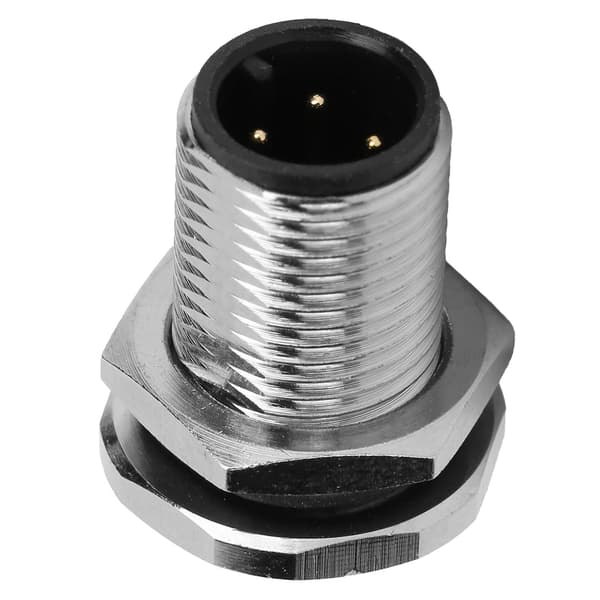

This panel mount socket connector features a robust F2 M12 design with a nickel-plated brass housing, providing excellent 360-degree full shielding for reliable performance in demanding industrial environments. It complies with the IEC 61076-2-101 Industry 4.0 agreement and NEMA2000 standard, ensuring stable and excellent operational quality. The connector boasts an IP67 waterproof rating, making it suitable for applications where moisture or dust resistance is crucial. The 4-pin plug adapter design utilizes gold-plated brass pins that resist corrosion, ensuring long-lasting connectivity. It supports a rated current of 4A and a rated voltage of AC/DC250V, with a contact impedance of ≤5mΩ. The connector is designed for at least 500 mating cycles, and the sealing material is made of epoxy resin for enhanced durability. The M12-F2-P4 panel mount socket design allows for easy and convenient installation.

Item Type: Panel Mount Socket Connector

Material: Brass

Shell Material: Brass nickel plated

Sealing Material: Epoxy resin

Pin Material: Brass gold plated

Core Material: PA+GF/TPU

Molding Material: TPU/PVC

Rated Current: 4A

Rated Voltage: AC/DC250V

Conductor Specification: AWG22, 0.34mm²

Contact Impedance: ≤5mΩ

Mating Times: ≥500 times

Number of Pins: 4

Standard: IEC61076-2-101

Applicable Temperature: -25℃~+80℃

Waterproof Rating: IP67

Hole Size: Approx. 12.1 x 10.7mm / 0.48 x 0.42in

Package List: 1 x Connector
