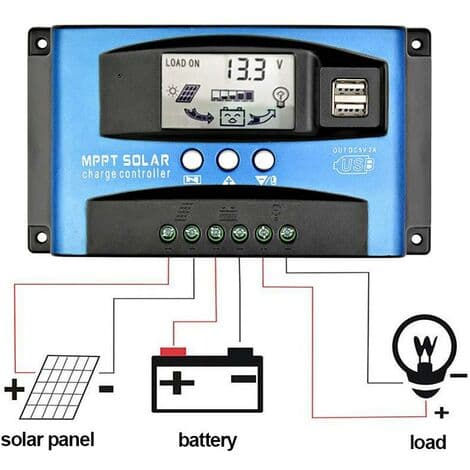

General Description The solar charge controller is an essential device for optimizing the use of solar energy. Equipped with an industrial-grade main control chip, it guarantees 16-level AD sampling accuracy, allowing real-time display of temperature, charging current, and discharging current. Its three-stage charge management ensures effective battery protection, thus extending its lifespan. Technical Specifications AD sampling accuracy: 16 levels MPPT tracking efficiency: up to 99.9% Power conversion efficiency: 98% Display: Large LCD screen with adjustable parameters Protection modes: overheating, overcurrent, short circuit, open circuits, reverse connections Compatibility and Accessories Compatible with various battery types, the controller can be adjusted to meet the specific characteristics of each battery. It is advisable to use solar panels adapted to the controller's specifications. Installation For optimal installation, follow these steps: First connect the battery, then the solar panel. Install the controller in a location away from humid and high-temperature environments. Avoid flammable and explosive materials nearby. Usage The controller is designed to continuously detect the load and automatically adjust parameters to ensure maximum efficiency. Make sure to position the controller in a well-ventilated area and do not cover it during use. Other Information It is important to keep the controller away from extreme conditions and not to install it in a vehicle to avoid the risk of overheating.
