1. The sensor probe adopts non-contact induction, safe to use and has a long service life. 2. The stainless steel bracket is convenient for adjusting the measuring head, and the light path must be unobstructed during adjustment. 3. The electrical wire uses high-quality tinned shielded wire, and the output signal is fast and stable. 4. The metal shell comes with M18×1 threaded fixing installation, double nut installation, convenient disassembly and assembly. 5. With small size, easy to carry and store, convenient to use and with good performance.

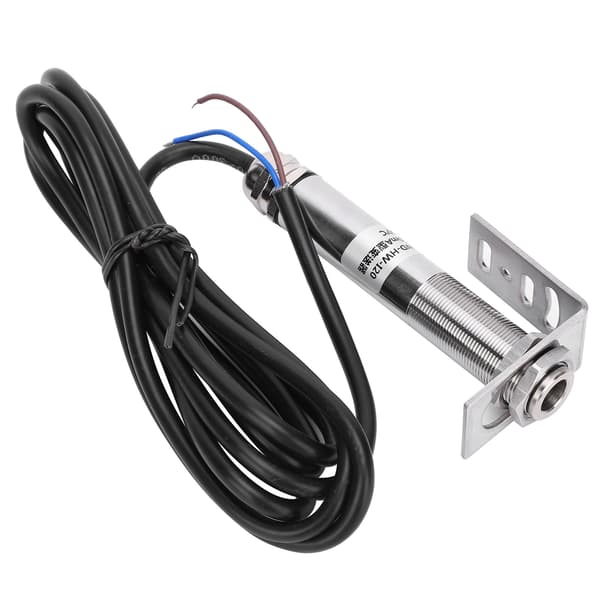

Item Type: Non-contact Infrared Temperature Sensors

Material: Stainless Steel
Purpose: Measurement of water temperature, oil temperature, food, human body, ceramics, asphalt, rubber, chemicals, coal, graphite, metal, glass, etc.
DC Power Supply: 10-30VDC
Maximum Current: 50mA
Output Signal: 4-20mA
Equipment Power Consumption: ≤0.5W
Measurement Accuracy: ±1% of the measured value or ±1.5℃, whichever is greater
Spectrum Range: 8~14μm
Response Time: 150ms (95%)
Optical Resolution: 20:1
Emissivity: 0.95 fixed
Working Environment: 0~60℃; 10~95%RH (no condensation)
Cable Length: Approx. 1.5 meters / 4.9 feet

Size: Approx. 18 mm / 0.7 inches

50 mm / 2 inches

113 mm / 4.4 inches

Output Type Line Color Function 4-20mA Red +24V 4-20mA Blue Signal Output 4-20mA+

1 x Sensor

1 x Bracket
