1. 6-Layer 2oz Thickened Copper Cladding: The PCB uses high-end 6-layer 2oz thickened copper cladding, which makes the overcurrent capability stronger and the heat dissipation effect better. 2. 30V MOS: Uses 30V MOS with high current resistance, long lifespan, and strong load capacity. Industrial LDO, high temperature resistant. 3. Wide Range of Applications: Built-in current sensor, with a wide range of applications, suitable for FPV traversers, remote-controlled aircraft, and so on. 4. Versatile Functions: Built-in current sensor, F722D flight control firmware version, 2S-6S Lipo input voltage, 40A continuous current, 45A peak current. 5. Easy to Use: Easy to use, easy to install and disassemble. With wiring, protocol supports PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600.

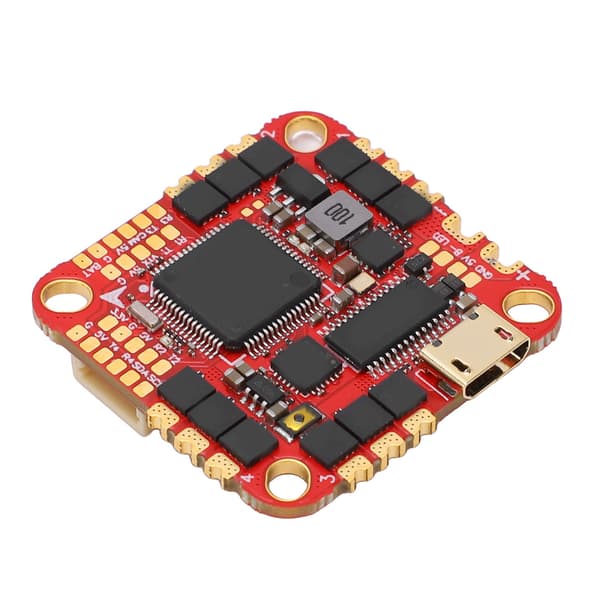

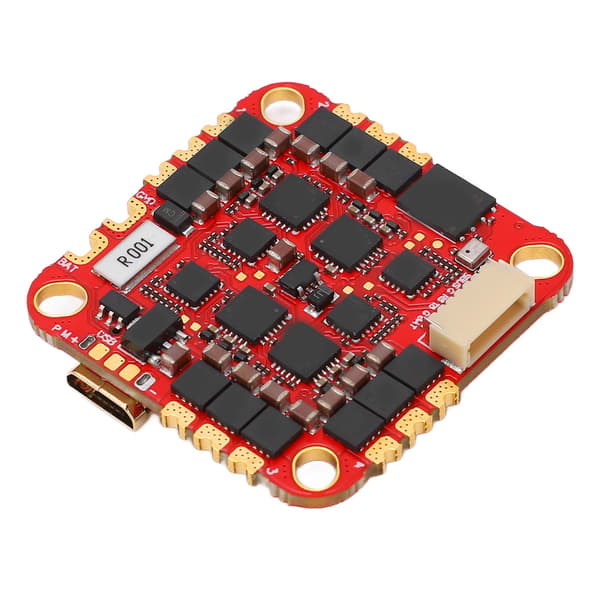

Item Type: F722 Flight Controller Kit
Weight: Approx. 37g / 1.3oz
Material: Electronic Components
Color: Black
Flight Control Size: Approx. 32 x 32mm / 1.3 x 1.3in
Mounting Hole Distance: 25.5-26.5mm / 1.00-1.04in
CPU: STM32F722RET6
IMU: ICM42688
OSD: AT7456E
Barometer: Integrated
BEC: 5V 3A
LED: Supports WS2812 And So On
Sensor: Built-in Current Sensor
Flight Control Firmware Version: F722D
Receiver: For Frsky, For Futaba, For Flysky, For TBS Crossfire, For DSMX, For DSM2 Receiver
Firmware Support: BLHELI_S
Protocol Support: Supports For PWM, For Oneshot125, For Oneshot42, For Multishot, For Dshot150, For Dshot300, For Dshot600
Input Voltage: 2S-6S Lipo
Continuous Current: 40A
Peak Current: 45A
Firmware Version: BLHELI_S (G-H-30)
Application: Suitable For FPV Traversers, Remote-Controlled Aircraft, Etc

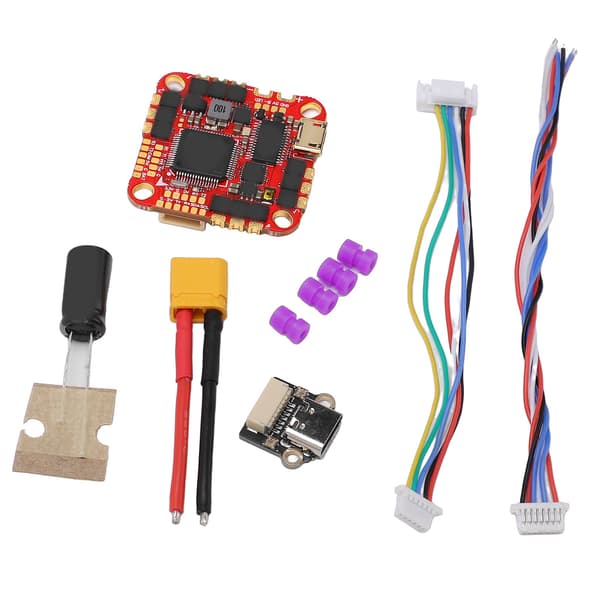

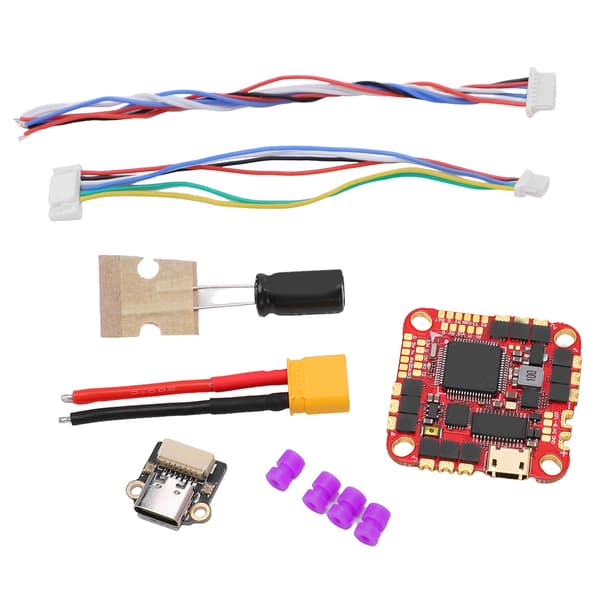

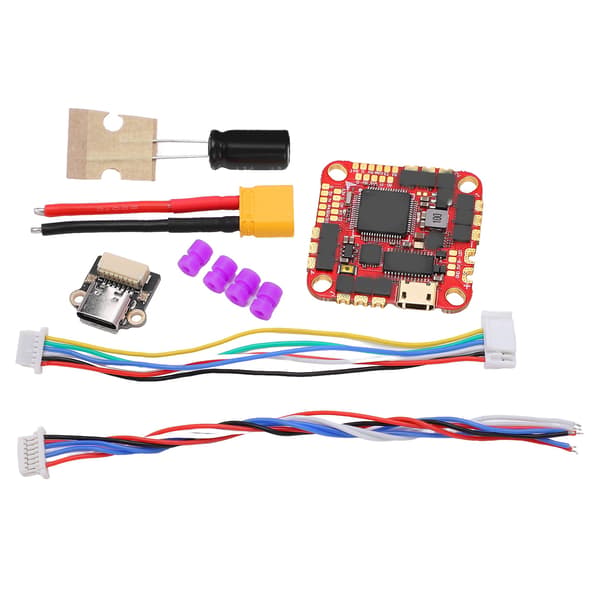

1 x Flight Control
1 x Capacitance
3 x Wiring
1 x Type C Interface
4 x Damping Ring
1 x Manual
