Features:

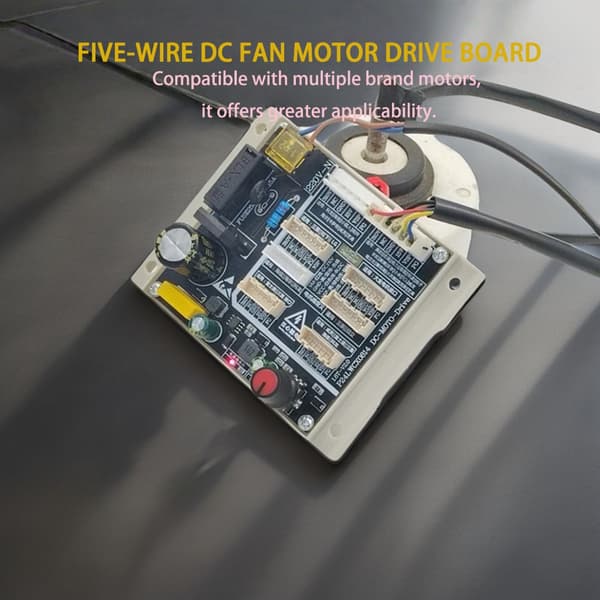

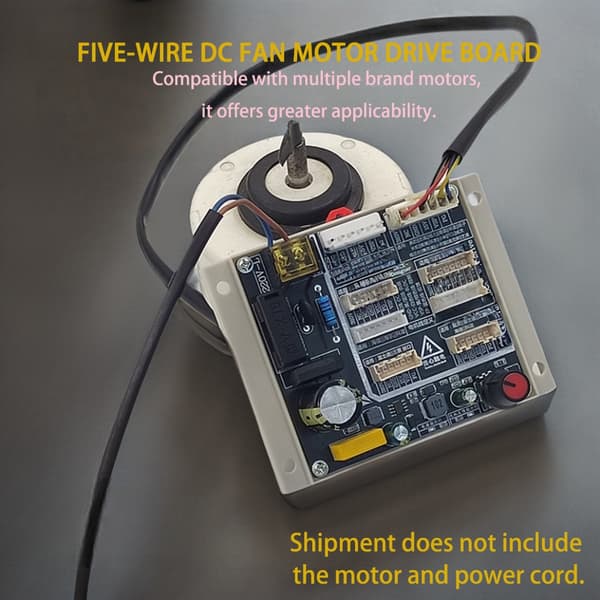

Universal 5-wire brushless fan motor detector and drive board offers comprehensive testing/speed control for 310V motors across 8+ brand interfaces including , , and , with integrated pitch protection and anti-overshoot technology.

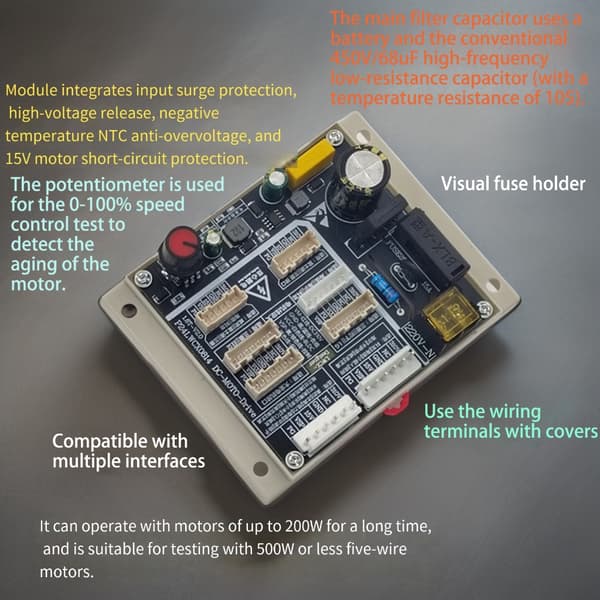

Constructed with 4 1.6MM double-layer PCBs and 450V/68uF high-frequency capacitors, this test board supports AC110V 220V input, DC165V 310V output, and speed adjustment via onboard potentiometer for precise motor diagnostics.
Designed for HVAC technicians, motor manufacturers, and electronics engineers who require stable aging tests, quality process, and troubleshooting of 200W capacity brushless motors in industrial or repair environments.
Ideal for workshop motor calibration, production line quality assurance, or field maintenance of air conditioning systems with compatible brushless motors from major appliance brands.

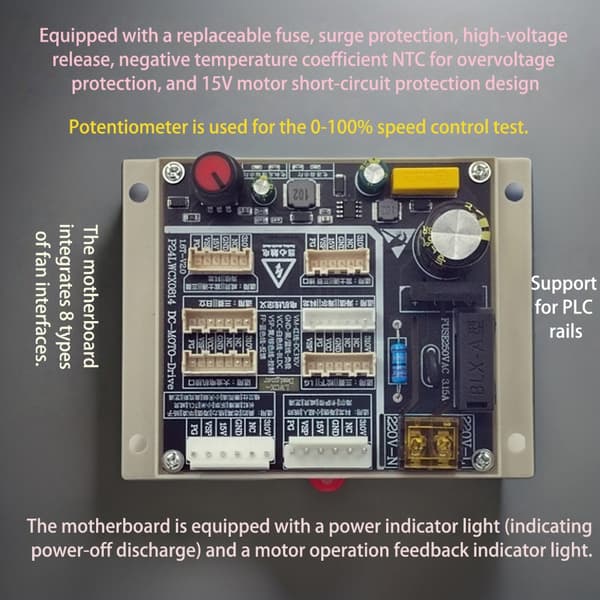

Enhanced safety features include automatic high electrical discharge after shutdown, 15V short circuit protection, and covered terminals, ensuring strong performance during prolonged motor test cycles up to 200W capacity.
Specifications:
Component: Plastic
Size: approx 85.6x90.8mm/3.37x3.57inch
Note:
1. Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.

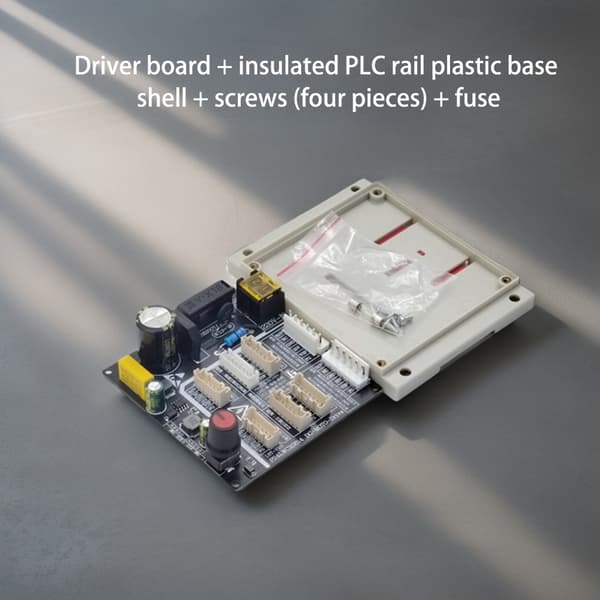

Package Includes:
1xMotor Tester
