Features:\r
\r

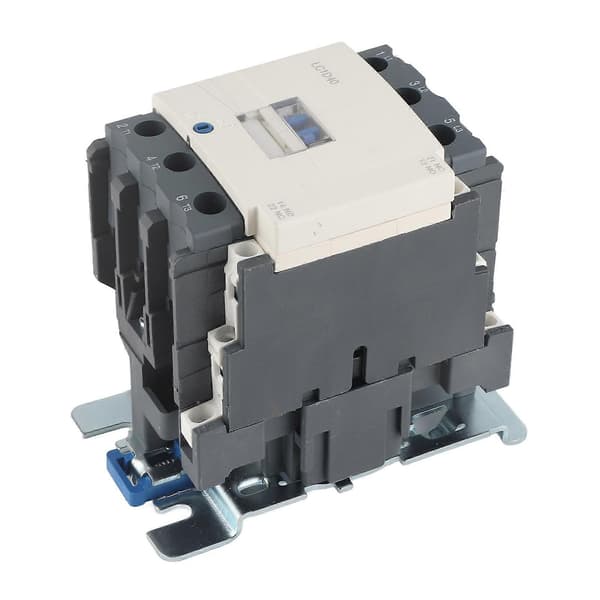

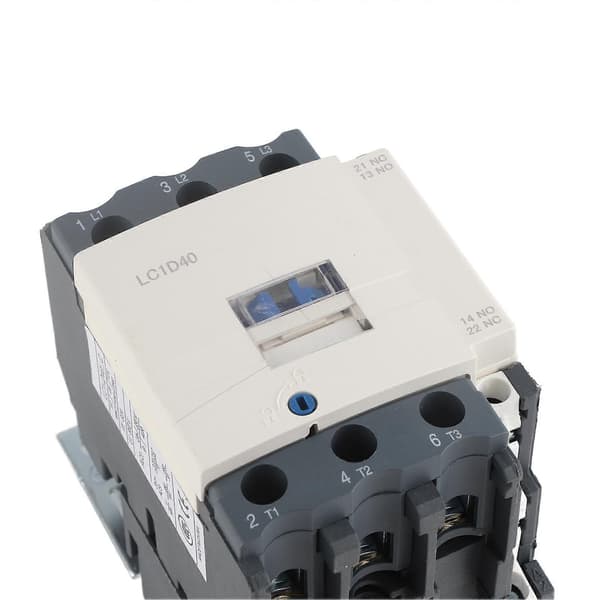

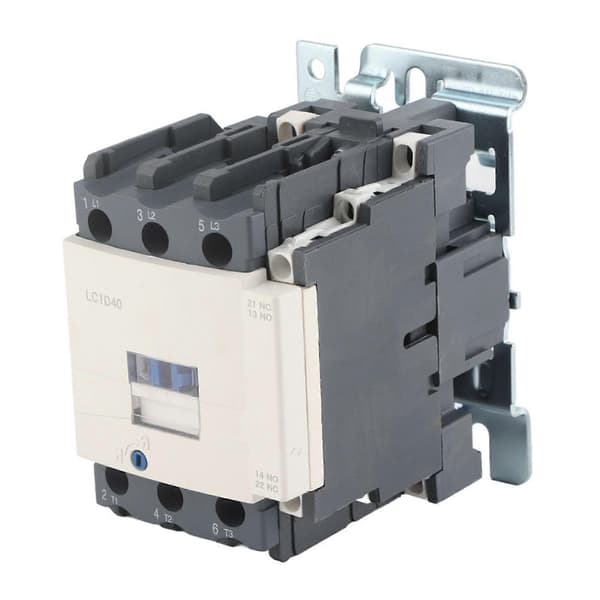

An industrial electrical appliance that uses a coil to conduct current to generate a magnetic field that closes the contact to achieve the control load of the electrical installation.\r
This AC contactor is suitable for AC 50Hz or 60Hz, AC voltage 220V, rated current 40A, for long-distance connection and segmented circuit and frequent starting.\r
High sensitivity and good carrying capacity.\r
Stable connection contact has strong conductivity.\r
Commonly used in power, distribution and power applications.\r
The contactor can be equipped with a block-shaped auxiliary contact group, air delay head, mechanical interlocking mechanism and other accessories for the assembly of delay contactor, reversible contactor, star-delta starter and can be directly installed with thermal relay to form electromagnetic starter.\r
\r
\r
Specification:\r
Condition: brand new\r
Rated current: 40A\r
Number of poles (phases): 3\r
Coil voltage: AC220 (V)\r
Coil frequency: 50/60 (Hz)\r
Rated voltage: 230VAC\r
Life, mechanical: 100,000 times\r
Life, electrical: 100,000 times\r
Size: 115 * 130 * 75 mm / 4.5 * 5.1 * 3 inches\r
LC1-D AC contactor installation category: class III\r
LC1-D AC contactor mounting conditions: the inclination of the plane and the vertical plane is no more than + / - 5\r
\r
Package list:\r
1 x AC contactor
