Description

This is a kind of good quality CNC shank, made of fine material with toughness and hardness, which can provide long service life. Fine toughness at low temperature, improves the gloss of the surface of cut parts. It can reduce costs
for grinding tools and improve cutting efficiency. You can try.

Features:

High adhesion strength, impact resistance and strong, clear advantage in cutting speed, large margin and machining space.

Fine toughness and hardness, long service life.

It can reduce the cost of grinding tools and improve cutting efficiency.

Fine toughness at low temperature, improves the gloss of the surface of cut parts.

To maintain tight tolerances with unparalleled performance.

User-friendly and practical method for replacement, only one wrench to complete the replacement of insert and die.

Warning:

Use safety precautions such as protection and eye protection before using the tool.

Replace a tool when problems such as noise, vibrations and flames occur.

Specifications:

Name: Milling Tool Holder

Material: Stainless steel + plastic

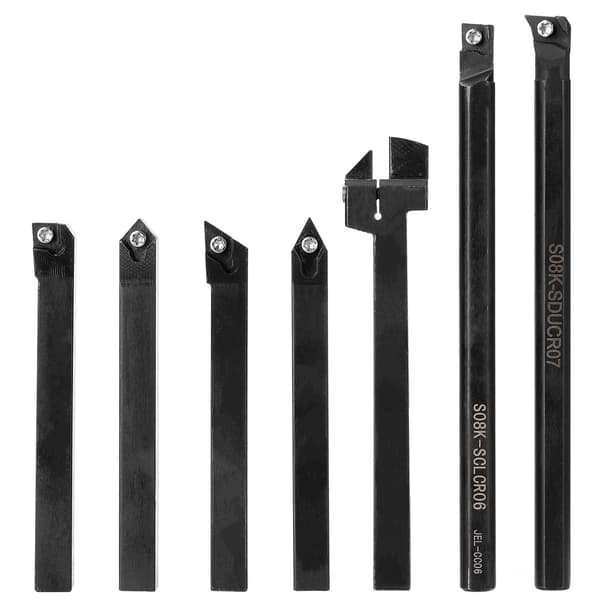

Model (lathe tool + insert): S08K-12 + SDUCR07, S08K + SCLCR06, SCMCN + 0808F06, SCLCR + 0808F06, SDJCR + 0808F07, SDNCN + 0808F07, MGEHR + 0808-02 (ALL)

Wrench:

MGEHR: T10

SDJCR: T8

S08K-12: T8

SDNCN: T8

SCLCR: T8

SCMCN: T8

S08K: T8

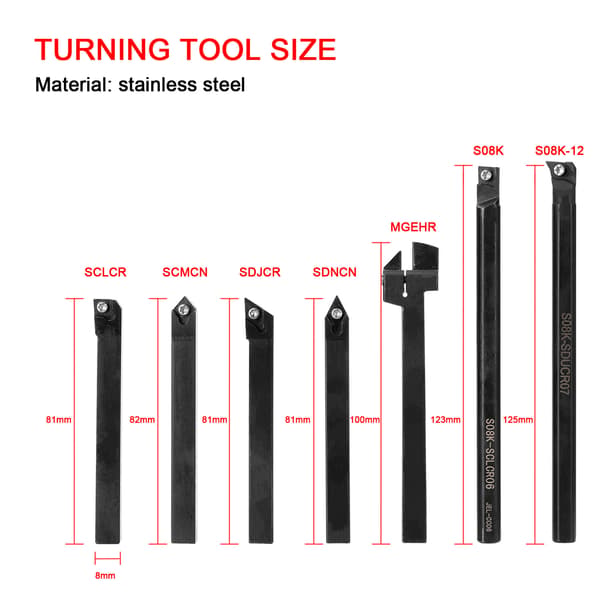

Lathe tool size:

MGEHR: 100 * 8 * 8 mm / 3.94 * 0.31 * 0.31 inches

SDJCR: 81 * 8 * 8 mm / 3.19 * 0.31 * 0.31 inches

S08K-12: 125 * 8 * 8 mm / 4.92 * 0.31 * 0.31 inches

SDNCN: 81 * 8 * 8 mm / 3.19 * 0.31 * 0.31 inches

SCLCR: 81 * 8 * 8 mm / 3.19 * 0.31 * 0.31 inches

SCMCN: 82 * 8 * 8 mm / 3.23 * 0.31 * 0.31 inches

S08K: 123 * 8 * 8 mm / 4.84 * 0.31 * 0.31 inches

Lathe tool with frame weight:

MGEHR: 72 g / 2.54 oz

SDJCR: 60 g / 2.12 oz

S08K-12: 71 g / 2.50 oz

SDNCN: 60 g / 2.12 oz

SCLCR: 63 g / 2.22 oz

SCMCN: 61 g / 2.15 oz

S08K: 65 g / 2.29 oz

Insert with box weight: 20 g / 0.71 oz

Package size: 222 * 150 * 45 mm / 8.74 * 5.91 * 1.77 inches

Package weight: 542 g / 19.12 oz / 1.19 pounds

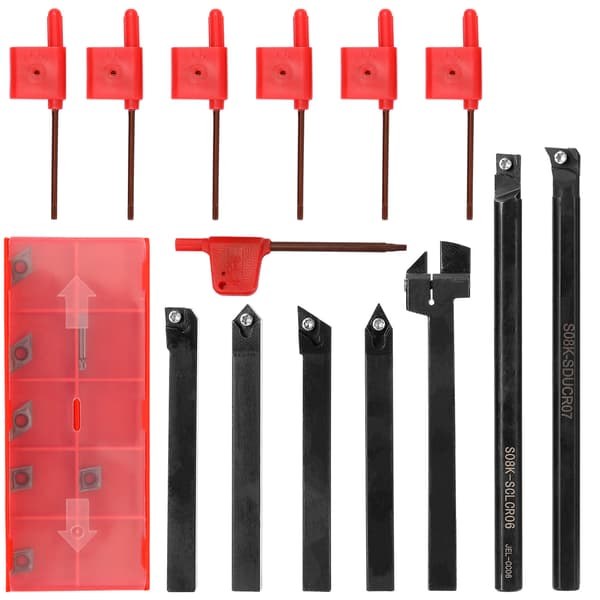

Package list:

7 * 8 mm milling tool holder

7 * Wrench

7 * Insert

The size is measured manually, please allow errors (1-3 cm).

Due to different screen pixels, there may be a color difference, please refer to the actual product.
