Ideal for high-resolution transmissions (HD-TV, Full HD, Ultra HD (UHD/4K and higher) for digital signals such as DVB-T and DVB-T2, radio (VHF/DAB/DAB+) and cable TV DVB-C and DVB-C2 (analog/digital SD/digital HD). Reliable connection between junction box and receiving unit, e.g. TV sets/receivers (Sky receivers) and radio.

4-fold shielded satellite cable for interference-free transmission

Inner conductor made of pure OFC full copper for optimal conductivity and transmission properties

Particularly conductive and durable due to a full metal plug with gold-plated contacts

Optimized bend protection and flexible cable sheath protect against exceeding the maximum bending radius.

Plug-to-plug connectors included

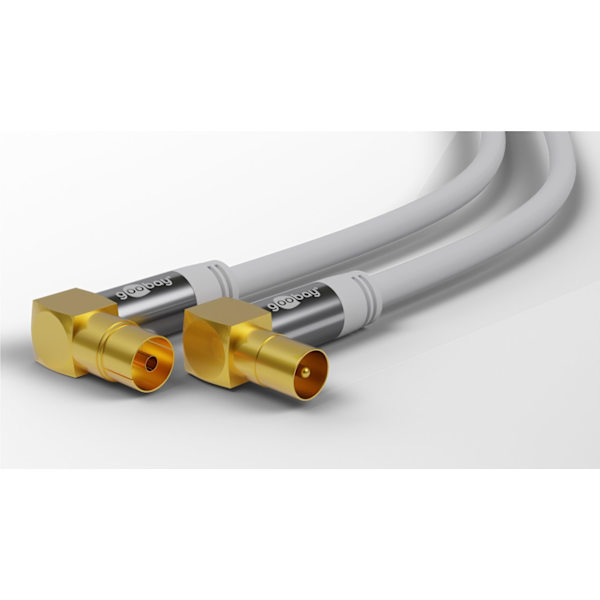

Angled plugs facilitate cable laying even in confined spaces

For connecting devices with a coaxial connection, e.g. TVs, receivers and radios

Cable sheath Diameter : 8 mm
Inner conductor, cable diameter : 1.02 mm
Dielectric diameter : 5
Number of shields : 4 x
Markings : WEEE, CE
CAS no. : 7439-92-1
chemical substance : Pb
SCIP no. : 55357a2a-ba79-4ebd-811f-60479c5b3bad
Impedance : 75 Ω
Shielding effectiveness : 135 dB
Bend protection : two-sided
Cable type : Coaxial cables
Inner conductor material : CU (copper)
Type 1, shielding : Foil (alu)
Type 2, shielding : Braided shield (alu) 128pcs.
Type 3, shielding : Foil (alu)
Type 4, shield : Braided shield (alu) 128pcs.
Connection, housing material : Aluminum
Connection, contact material : Gold-plated
Connection, shielding : yes
Connection, type : Coax socket 90°
Connection 2, type : IEC / coaxial plug 90 °
Color : white
Consumption unit : 1 pc. in polybag
Cable length : 2 m
Material cable sheath : PVC
Color version : white
