Ideal for high-resolution transmissions (HD-TV, Full HD, Ultra HD (UHD/4K and higher) for digital signals such as DVB-T and DVB-T2, radio (VHF/DAB/DAB+) and cable TV DVB-C and DVB-C2 (analog/digital SD/digital HD). Reliable connection between junction box and receiving unit, e.g. TV sets/receivers (Sky receiver) and radio.

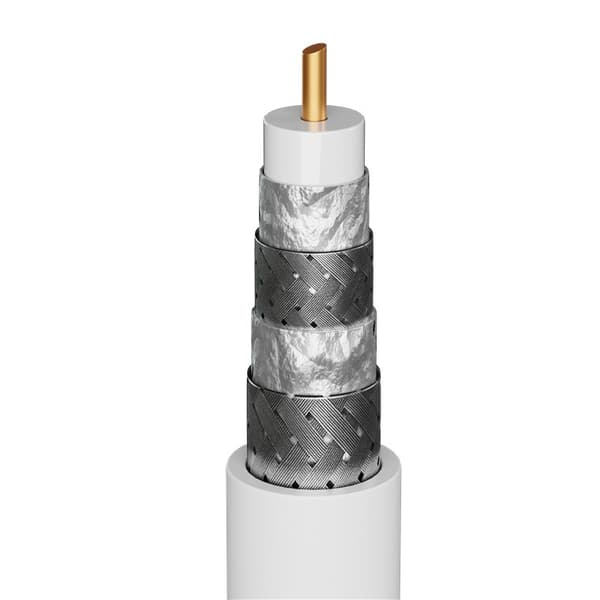

4-fold shielded satellite cable for interference-free transmission

Inner conductor made of pure OFC full copper for optimal conductivity and transmission properties

Particularly conductive and durable due to a full metal plug with gold-plated contacts

Optimized bend protection and flexible cable jacket protect against exceeding the maximum bending radius.

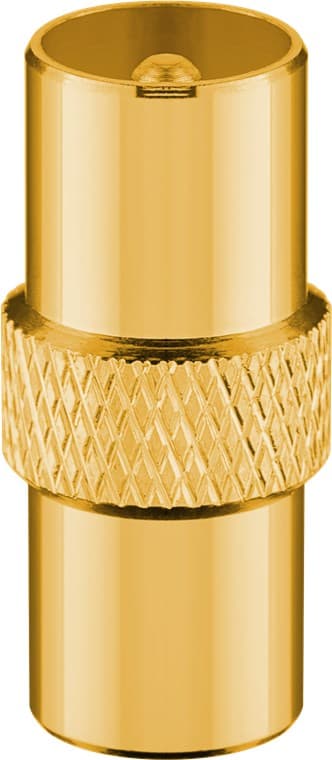

Plug-to-plug connectors included

For connecting devices with a coaxial connection, e.g. TVs, receivers and radios

Cable jacket diameter: 8 mm
Inner conductor, cable diameter: 1.02 mm
Dielectric diameter: 5
Number of shields: 4 x
Markings: WEEE, CE
CAS no.: 7439-92-1
Chemical substance: Pb
SCIP no.: 64366e63-8bcd-4f75-a9fb-121771a12e73
Impedance: 75 Ω
Shielding effectiveness: 135 dB
Bend protection: two-sided
Cable type: Coaxial cables
Cable jacket material: PVC
Inner conductor material: CU (copper)
Type 1, shielding: Foil (alu)
Type 2, shielding: Braid (alu) 128 pcs.
Type 3, shielding: Foil (alu)
Type 4, shielding: Braid (alu) 128 pcs.
Connection, housing material: Aluminum
Connection, contact material: Gold-plated
Connection, shielding: yes

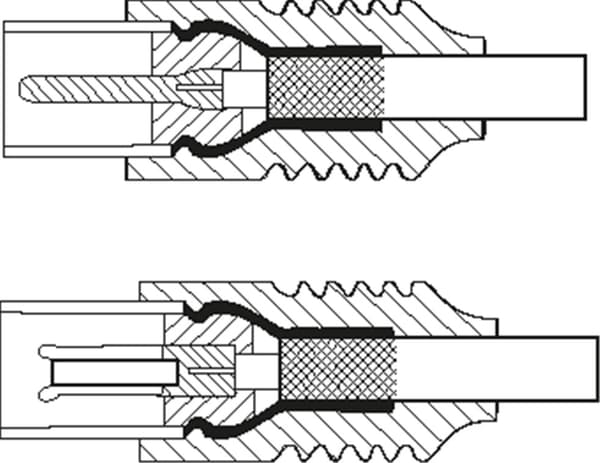

Connection, type: IEC / coaxial socket
Connection 2, type: IEC / coaxial plug
Color: black
Consumption unit: 1 pc. in polybag
Cable length: 3 m
Color version: black
