Ideal for high-resolution transmissions (HD-TV, Full HD, Ultra HD (UHD/4K and higher) for digital signals such as DVB-T and DVB-T2, radio (VHF/DAB/DAB+) and cable TV DVB-C and DVB-C2 (analog/digital SD/digital HD). Reliable connection between junction box and receiving unit, e.g. TV sets/receivers (Sky receiver) and radio.

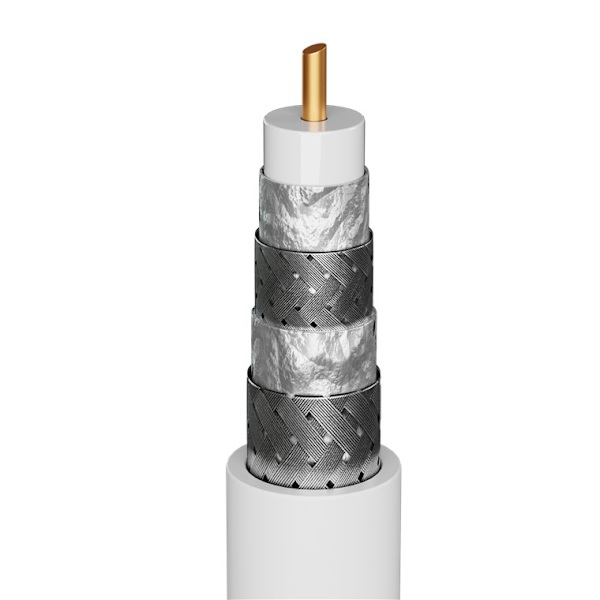

4-fold shielded satellite cable for interference-free transmission

Inner conductor made of pure OFC full copper for optimal conductivity and transmission properties

Particularly conductive and durable due to a full metal plug with gold-plated contacts

Optimized bend protection and flexible cable sheath protect against exceeding the maximum bending radius.

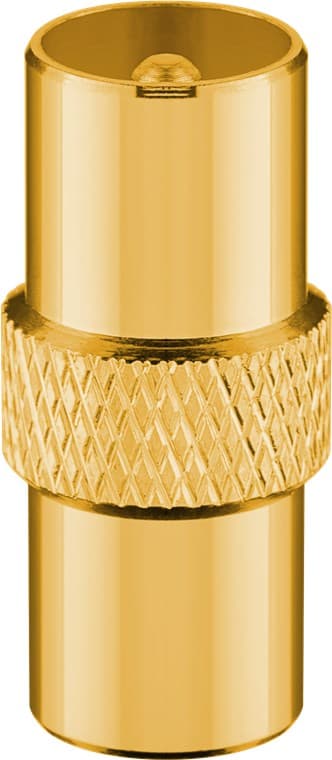

Plug-to-plug connectors included

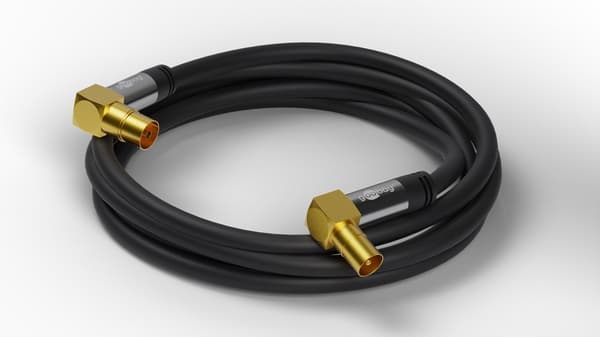

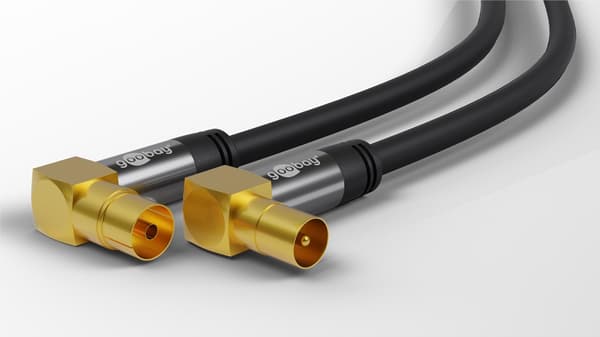

Angled plugs facilitate cable laying even in confined spaces

For connecting devices with a coaxial connection, e.g. TVs, receivers and radios

Cable sheath Diameter : 8 mm
Inner conductor, cable diameter : 1.02 mm
Dielectric diameter : 5
Number of shields : 4 x
Markings : WEEE, CE
Impedance : 75 Ω
Shielding effectiveness : 135 dB
Bend protection : double-sided
Cable type : Coaxial cables
Inner conductor material : CU (copper)
Type 1, shielding : Foil (alu)
Type 2, shielding : Braid (alu) 128pcs.
Type 3, shielding : Foil (alu)
Type 4, shielding : Braid (alu) 128pcs.
Connection, housing material : Aluminum
Connection, contact material : Gold-plated
Connection, shielding : yes
Connection, type : Coax socket 90°
Connection 2, type : IEC / coaxial plug 90 °
Consumption unit : 1pc. in polybag
Cable length : 1 m
Material cable sheath : PVC
Color : black
Color version : black

• 4-fold shielded satellite cable for interference-free transmission
• Inner conductor made of pure OFC full copper for optimal conductivity and transmission properties
• Particularly conductive and durable due to a full metal plug with gold-plated contacts
• Optimized bend protection and flexible cable sheath protect against exceeding the maximum bending radius.
• Plug-to-plug connectors included
• Angled plugs facilitate cable laying even in confined spaces
• For connecting devices with a coaxial connection, e.g. TVs, receivers and radios
